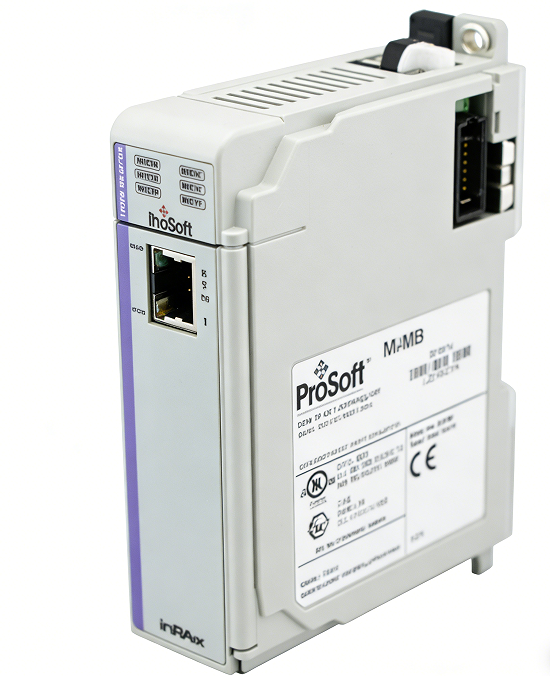

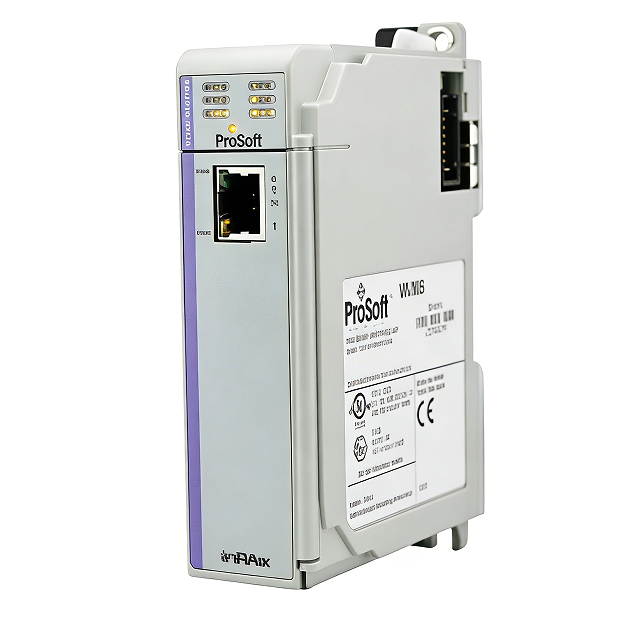

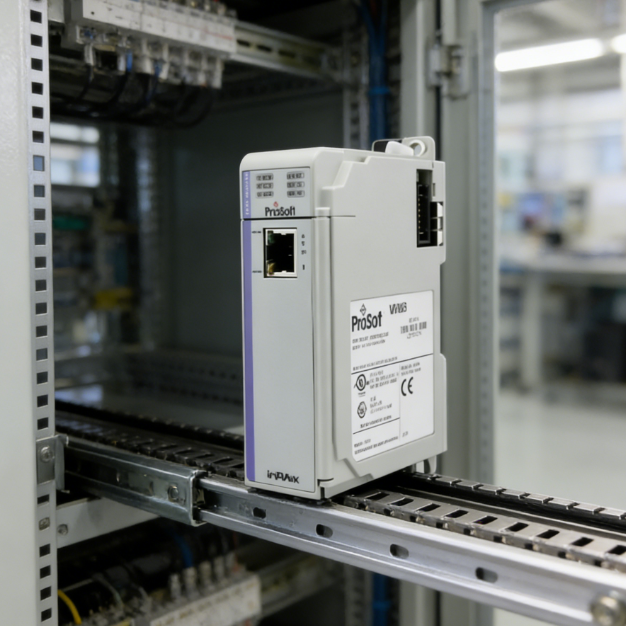

MVI69E-GEC Generic ASCII Ethernet Enhanced Communication Module

Features/AdvantagesFeatures/Advantages：

•    Single-slot - 1769 backplane compatible

•    The module is recognized as an Input/Output module and has access to processor memory for data transfer between processor and module

•    Ladder Logic is used for data transfer between module memory and processor controller tags. A sample ladder file with AOI is included

•    Configuration data obtained from configuration text file downloaded to module.

•    Supports CompactLogix and MicroLogix 1500 LRP Controllers except 1769-QBFC1B, 1769-L16x, and 1769-L18x




• Functional Specifications：

•    Five servers and Clients to receive and/or transmit data

•    10/100 Base-T Ethernet-compatible interface

•    Configurable parameters

•            Service port number

•            Connection timeout

•            Close type

•    Simple ladder logic operation

•    Setup and monitoring through ProSoft Configuration Builder (PCB)

•    CompactLogix backplane interface via I/O access

•    Each server monitors

•            State

•            IP and port number of connected Client

•            Error codes

•    Each Client monitors

•           State

•           IP and port number of connected server

•    ASCII character strings up to 4096 characters in length supported

•    User-definable module memory usage, supporting the storage and transfer of up to 4000 bytes to/from the control processor

•    Module error and status conditions returned to processor for diagnostic purposes

•           Module status

•           Port error status word (bitmapped)

•           Port receive state

•           Port receive character count

•           Port receive block count

•           Port transmit state

•           Port transmit character count

•           Port transmit block count

•    All data related to the module is contained in a single controller tag with defined objects to simplify monitoring and interfacing with the module

•    Module communication data is transferred to the MVI69E-GEC via a pre-defined user data type in the processor
