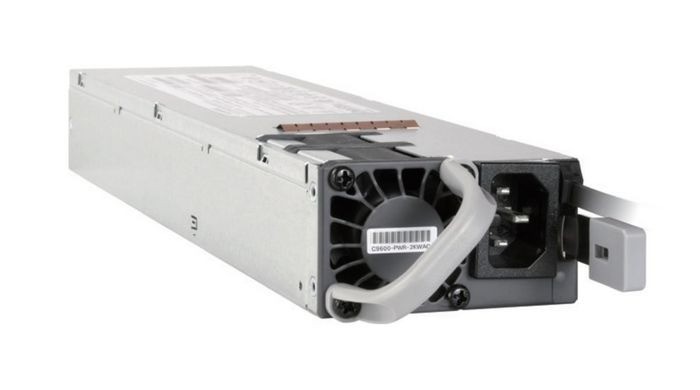

The Cisco C9600-PWR-2KWAC is a 2000W AC hot-swappable power supply unit designed exclusively for the Cisco Catalyst 9600 Series modular switches (C9606R, C9609R, C9610R). It provides reliable, high-efficiency power to support high-density line cards and demanding enterprise deployments.
2000W High Power Output: Delivers stable 2000W power to support high-performance line cards (e.g., C9600-LC-48YL) and configurations.
Hot-Swappable & Redundant: Fully hot-pluggable for replacement without downtime; supports N+1/N+N redundancy for mission-critical reliability.
High Efficiency: Up to 94% energy efficiency (typical), reducing power consumption and cooling costs.
Wide Input Voltage: Auto-ranging 90-264V AC (47-63Hz), compatible with global power standards.
Active Cooling: Integrated fan for optimal thermal management in dense chassis.
Safety & Reliability: Built-in over-voltage, over-current, and short-circuit protection; 300,000 hours MTBF.
Compact Form Factor: Standardized module for Catalyst 9600 series, easy to install.
| Parameter | Specification |
|---|---|
| Part Number | C9600-PWR-2KWAC |
| Total Power | 2000 Watts |
| Input Voltage | 90–140V AC, 180–264V AC (auto-ranging) |
| Input Frequency | 47–63 Hz |
| Max Input Current | 10.5A @ 230V AC |
| Output | 12V DC, 167A |
| Efficiency | 94% (typical) |
| Form Factor | Hot-swappable modular PSU |
| Compatibility | Catalyst 9606R, 9609R, 9610R switches |
| MTBF | 300,000 hours |
| Input Connector | IEC 60320 C20 |
| Cooling | Active (fan-assisted) |
| Weight | ~3.6 kg (8.0 lbs) |
