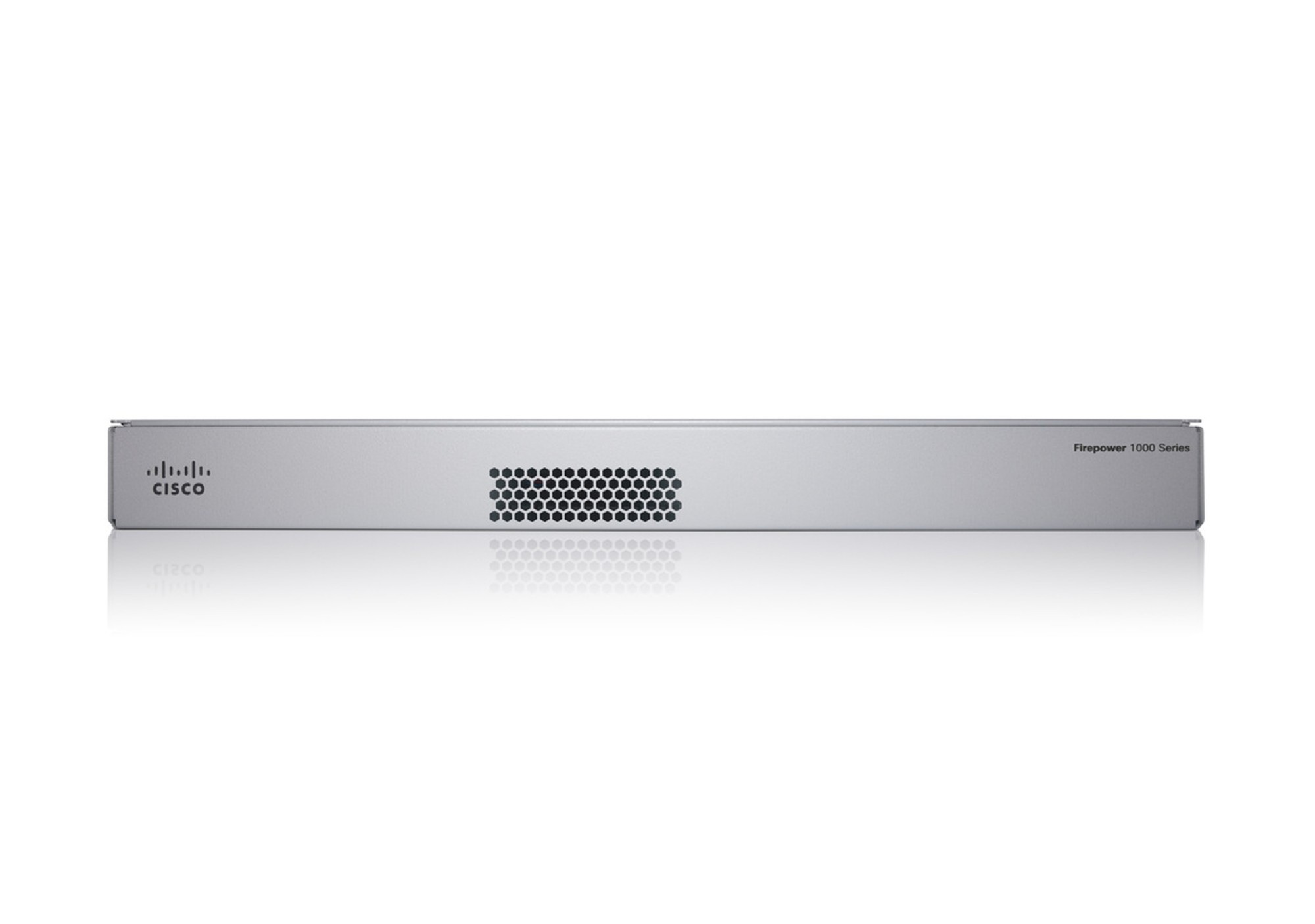

Cisco FPR1120-ASA-K9

The Cisco FPR1120-ASA-K9 is a 1U rack-mountable next-generation firewall (NGFW) from the Firepower 1000 series, purpose-built for medium-sized businesses, enterprise branch offices, and data center edge environments. Running Cisco Adaptive Security Appliance (ASA) Software, it delivers robust stateful firewalling, high-performance VPN, and proven security services in a compact, scalable form factor.

Key Features & Benefits

Enterprise-Grade ASA Security

Powerful stateful packet inspection (SPI) firewall
Advanced access control, NAT, and traffic filtering
IPsec/SSL VPN for secure remote and site-to-site connectivity
Botnet traffic filtering and basic threat detection
Fully compatible with existing Cisco ASA management and policies

High Performance

Stateful firewall throughput: 4.5 Gbps
Firewall (ASA) throughput: 2.3 Gbps
IPsec VPN throughput: 1.2 Gbps
Concurrent connections: 200,000
New connections/sec: 75,000
VPN peers/tunnels: 150

Flexible Connectivity

8 × 1G RJ45 ports (2 × PoE+ optional)
4 × 1G SFP fiber ports for uplinks
1 × 1G RJ45 out-of-band management
1 × RJ45 console port + 1 × USB 3.0

Reliability & Management

1U rack-mountable (standard 19-inch rack)
Active/Standby high availability (HA)
Local CLI/ASDM management
Centralized management via Cisco Security Manager (CSM)
Cloud management via Cisco Defense Orchestrator (CDO)

Technical Specifications

Item	Specification
Part Number	FPR1120-ASA-K9
Form Factor	1U Rack-mountable
Stateful Throughput	4.5 Gbps
ASA Firewall Throughput	2.3 Gbps
IPsec VPN Throughput	1.2 Gbps
Interfaces	8×1G RJ45 (2×PoE+), 4×1G SFP, 1×1G Mgmt
Console/USB	RJ45 Console, 1×USB 3.0
Concurrent Connections	200,000
VPN Peers	150
Storage	200 GB SSD
Power	100–240V AC, internal power supply
Dimensions	43.7 × 436.9 × 269 mm (1.72 × 17.2 × 10.6 in)
Weight	3.63 kg (8.0 lbs)
Software	Cisco ASA Software
