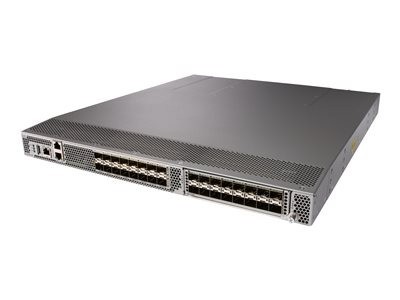

The Cisco DS-C9132T-24PETK9 is a 1U rack-mountable 32-Gbps Fibre Channel (FC) switch from the MDS 9132T Series, designed for high-performance Storage Area Networks (SANs). It delivers non-blocking, line-rate performance with 24 pre-activated 32G FC ports, making it ideal for server rack-to-SAN core connectivity in modern, flash-optimized data centers supporting both traditional FC and next-generation FC-NVMe workloads.
High-Density 32G FC Performance
24 x 32-Gbps FC SFP+ ports pre-activated (expandable to 32 ports via license)
Auto-senses 32/16/8 Gbps speeds for full backward compatibility
Non-blocking architecture with consistent line-rate throughput
Ultra-low latency optimized for NVMe/FC and all-flash arrays
Includes 24x 32G SW SFP28 optics (850nm, LC duplex)
Enterprise-Grade SAN Capabilities
Comprehensive feature set: VSANs, QoS, Zoning, FICON, FC-SP
Native FC-NVMe support for next-generation storage architectures
Advanced security: FIPS 140-2 Level 2 encryption
In-depth SAN telemetry and analytics for performance monitoring
Flexible Deployment & Reliability
Port-side exhaust airflow for optimized data center cooling
Hot-swappable, redundant power supplies and fans
Compact 1U form factor maximizes rack space
Energy-efficient design with low power consumption
Simplified Management
Managed via CLI, DCNM, SNMP, REST API
Smart Licensing for seamless port activation
Call Home and proactive diagnostics for high availability
| Parameter | Specification |
|---|---|
| Part Number | DS-C9132T-24PETK9 |
| Product Line | Cisco MDS 9100 Series Multilayer Fabric Switches |
| Form Factor | 1U rack-mountable |
| Total Ports | 32 x 32G FC SFP+ |
| Active Ports | 24 licensed (included) |
| Port Speeds | 32G/16G/8G auto-negotiation |
| Included Optics | 24 x 32G SW SFP28 (850nm, LC) |
| Airflow | Port-side exhaust |
| Management Ports | 2 x 1G RJ45, 1 x RJ45 Console, 1 x USB 2.0 |
| Power Supplies | 2 x 650W AC (dual redundant, hot-swappable) |
| Fans | 4 x hot-swappable |
| Software License | Enterprise NX-OS features included |
| Dimensions (WxDxH) | 439.4 x 510.8 x 43.7 mm |
| Weight | 9.82 kg |
| Typical Use | High-density SAN edge, FC-NVMe flash storage connectivity |
