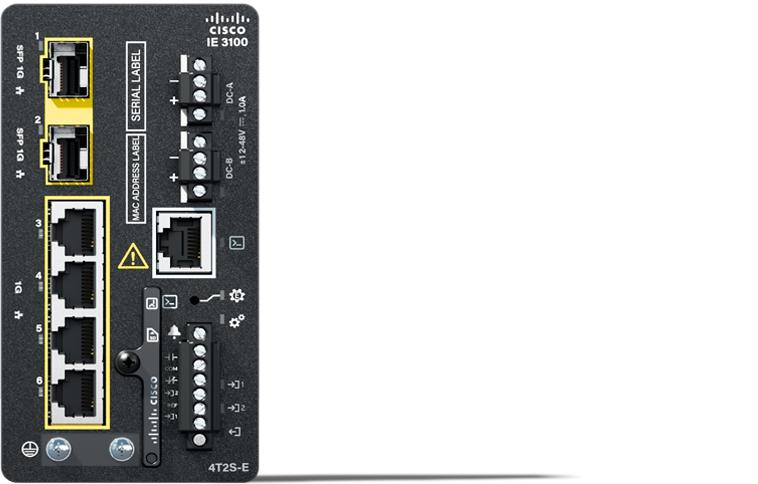

The Cisco IE-3100-4T2S-E is a compact, rugged, managed Layer 2/Layer 3 industrial Ethernet switch from the Cisco Catalyst IE3100 Rugged Series. Powered by Cisco IOS XE with a Network Essentials license, it features 4 Gigabit Ethernet (10/100/1000) copper ports and 2 Gigabit Ethernet SFP fiber uplink ports. Designed for space-constrained and harsh industrial environments, it provides secure, high-performance, and resilient connectivity for IIoT, smart manufacturing, transportation, and energy applications.
Ultra-Rugged Industrial Design
Fanless, convection-cooled, IP30-rated metal chassis
Extended operating temperature: -40°C to +75°C
High shock (50g) and vibration (5g) resistance
DIN-rail mountable, compact form factor
Conformal coating option for corrosive environments
Port Configuration
4 x 10/100/1000Base-T Gigabit Ethernet RJ45 ports
2 x 1000Base-X Gigabit Ethernet SFP fiber uplink ports
Non-PoE model
Advanced Network Resiliency
Supports REP, MRP, STP/RSTP/MSTP for sub-50ms failover
Dual redundant 12–48V DC power inputs
Hot-swappable power support
Enterprise-Grade Security (IOS XE)
Secure Boot, image signing, Trust Anchor module (TAm)
802.1X, MACsec, SSHv2, SNMPv3, ACLs, DHCP Snooping
Zero-Trust Network Access (ZTNA) via Secure Equipment Access
Simplified Management
WebUI, CLI, Telnet, SNMP, Cisco Catalyst Center
SD card slot (up to 32GB) for config/image backup
Mini-USB/RJ45 console ports
Industrial Protocol Support
IEEE 1588v2 PTP (hardware-accelerated)
NTP-to-PTP translation
Native EtherNet/IP (CIP), PROFINET
| Parameter | Details |
|---|---|
| Part Number | IE-3100-4T2S-E |
| Series | Cisco Catalyst IE3100 Rugged |
| Software | Cisco IOS XE, Network Essentials |
| Switch Type | Managed Layer 2/Layer 3 |
| Copper Ports | 4 × 10/100/1000Base-T (GE) |
| Uplink Ports | 2 × 1000Base-X (GE SFP) |
| Switching Capacity | 16 Gbps |
| Forwarding Rate | 23.8 Mpps |
| MAC Table | 16,000 entries |
| Packet Buffer | 4.1 MB |
| Memory | 512 MB DRAM, 4 GB Flash |
| Power Input | Dual redundant 12–48V DC |
| Power Consumption | 10 W (typical) |
| Dimensions (H×W×D) | 127 × 45.7 × 111 mm |
| Weight | 0.86 kg |
| Operating Temp | -40°C to +75°C |
| Alarm I/O | 2 inputs, 1 relay output |
| Certifications | UL, CSA, IEC, EN, CE, FCC, ATEX |
| MTBF | 500,000+ hours |
| Warranty | 5-year Cisco limited hardware warranty |
