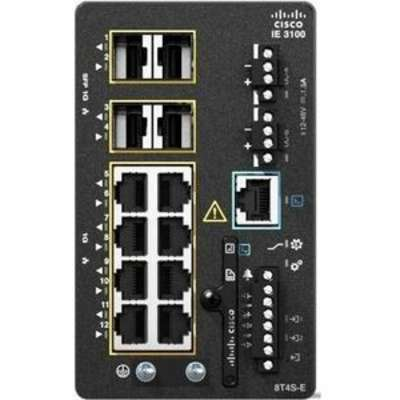

The Cisco IE-3100-8T4S-E is a rugged, managed Layer 2/Layer 3 Lite industrial Ethernet switch from the Cisco Catalyst IE3100 Rugged Series. Powered by Cisco IOS XE with a Network Essentials license, it provides 8 Gigabit Ethernet (10/100/1000) copper ports and 4 dedicated Gigabit Ethernet SFP fiber uplink ports. Optimized for high-density fiber connectivity, it delivers secure, high-performance networking in extreme industrial environments such as manufacturing, energy, transportation, and IIoT edge applications.
Ultra-Rugged Industrial Design
Fanless, convection-cooled, IP30-rated metal chassis
Extended operating temperature: -40°C to +75°C
High shock (50g) and vibration (5g) resistance
DIN-rail mountable, compact form factor
Conformal coating option for corrosive environments
Alarm I/O: 2 dry-contact inputs, 1 relay output
High-Density Port Configuration
8 x 10/100/1000Base-T Gigabit Ethernet RJ45 ports
4 x 1000Base-X Gigabit Ethernet SFP fiber uplink ports (dedicated, no combo)
Non-PoE model
Advanced Network Resiliency
Supports REP, MRP, STP/RSTP/MSTP for sub-50ms failover
Dual redundant 12–48V DC power inputs
Hot-swappable power support
EtherChannel (LACP) for link aggregation
Enterprise-Grade Security (IOS XE)
Secure Boot, image signing, Trust Anchor module (TAm)
802.1X, MACsec, SSHv2, SNMPv3, ACLs, DHCP Snooping
Zero-Trust Network Access (ZTNA) via Secure Equipment Access
IEC 62443-4-1/-2 industrial security compliance
Simplified Management
WebUI, CLI, Telnet, SNMP, Cisco Catalyst Center
SD card slot (up to 32GB) for config/image backup
Mini-USB/RJ45 console ports
Open APIs and data models for automation
Industrial Protocol Support
IEEE 1588v2 Precision Time Protocol (PTP) (hardware-accelerated)
Native EtherNet/IP (CIP), PROFINET
QoS with 8 queues for critical traffic prioritization
| Parameter | Details |
|---|---|
| Part Number | IE-3100-8T4S-E |
| Series | Cisco Catalyst IE3100 Rugged |
| Software | Cisco IOS XE, Network Essentials |
| Switch Type | Managed Layer 2/Layer 3 Lite |
| Copper Ports | 8 × 10/100/1000Base-T (GE) |
| Uplink Ports | 4 × 1000Base-X (GE SFP) |
| Switching Capacity | 24 Gbps |
| Forwarding Rate | 35.7 Mpps |
| MAC Table | 16,000 entries |
| Packet Buffer | 4.1 MB |
| Memory | 512 MB DRAM, 4 GB Flash |
| Removable Storage | SD card slot (up to 32GB) |
| Power Input | Dual redundant 12–48V DC |
| Power Consumption | 11 W (typical) |
| Dimensions (H×W×D) | 127 × 76.2 × 111 mm |
| Weight | 0.86 kg |
| Operating Temp | -40°C to +75°C |
| Certifications | UL, CSA, IEC, EN, CE, FCC, ATEX, IEC 62443 |
| MTBF | 575,966 hours |
| Warranty | 5-year Cisco limited hardware warranty |
