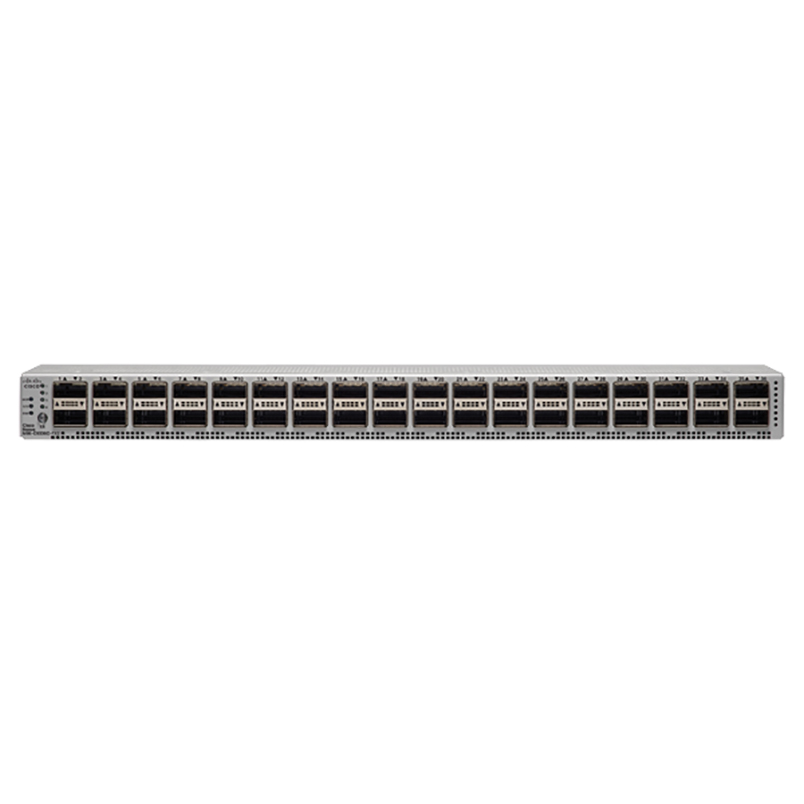

The Cisco Nexus 9336C-FX2 (N9K-C9336C-FX2) is a 1RU fixed-configuration data center switch designed for high-speed spine/leaf roles. It offers 36 x 40/100G QSFP28 ports in a compact form factor, supporting flexible breakout and multi-rate connectivity (1/10/25/40/100G). It operates under NX-OS or ACI mode, ideal for cloud, high-performance computing (HPC), and large-scale data center networks.
High-Density 100G Connectivity
36 x 40/100G QSFP28 ports (all ports support breakout).
Breakout capability: 1x 100G → 4x 25G or 1x 40G → 4x 10G.
Total switching capacity: 7.2 Tbps.
Forwarding rate: 2.8 Bpps.
40 MB shared packet buffer.
Powerful Hardware & Efficiency
Multi-core CPU, 16 GB DRAM / 64 GB SSD.
3x hot-swappable fan modules (N+1 redundancy).
Dual hot-swappable power supplies (1100W AC/DC).
Typical power: 337W; Max: 367W.
Port-side Intake (PI) / Exhaust (PE) airflow.
Advanced Data Center Features
VXLAN EVPN, BGP, OSPF, vPC.
Wire-speed MACsec encryption on all ports.
PTP (IEEE 1588v2) for precision timing.
Telemetry, Python, REST API, NX-API.
Manageable via CLI, DCNM, APIC.
| Parameter | Details |
|---|---|
| Part Number | N9K-C9336C-FX2 |
| Form Factor | 1U Rack-mountable |
| Fixed Ports | 36 x 40/100G QSFP28 (breakout capable) |
| Switching Capacity | 7.2 Tbps (non-blocking) |
| Forwarding Rate | 2.8 Bpps |
| Buffer | 40 MB shared |
| CPU/Memory | Multi-core; 16 GB DRAM; 64 GB SSD |
| Power Supplies | Dual, hot-swappable 1100W AC/DC |
| Power Consumption | 337W (typical); 367W (max) |
| Dimensions (WxDxH) | 43.9 x 62.3 x 4.4 cm |
| Weight | 8.5 kg (18.8 lb) |
| Operating Temperature | 0°C to 40°C |
| Operating System | Cisco NX-OS / ACI |
