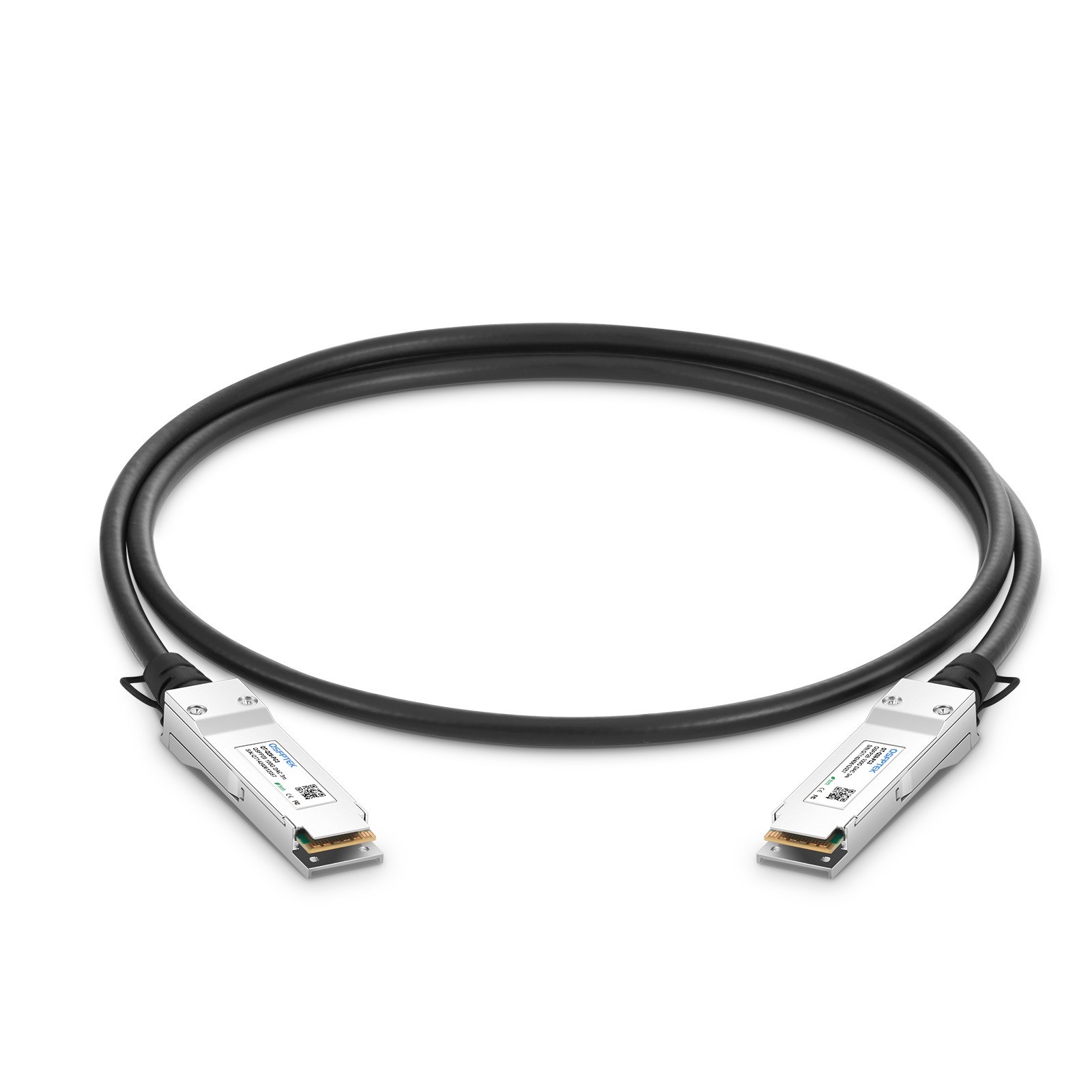

The Cisco QSFP-100G-CU3M= is a 3-meter, passive 100GBASE-CR4 Direct Attach Copper (DAC) twinaxial cable with QSFP28 connectors on both ends. Designed for short-reach, high-speed connectivity within data centers, it provides a cost-effective and low-power solution to link 100 Gigabit Ethernet ports on Cisco switches, routers, and servers. It supports 4 lanes of 25Gbps data transmission, fully compliant with IEEE 802.3bm and QSFP28 MSA standards.
100Gbps Total Bandwidth: 4 independent 25.78Gbps full-duplex channels.
Passive, Low Power: No active electronics; consumes ≤0.5W from the host port.
Hot-Pluggable: QSFP28 form-factor for easy installation without powering down the host.
High Flexibility: Minimum bend radius of ~38mm for dense cable management.
Shielded Construction: 26 AWG twinaxial copper with foil shielding for low crosstalk.
Standards Compliant: IEEE 802.3bm, SFF-8665 (QSFP28), SFF-8636 (CMIS), RoHS 6.
Cisco Validated: Fully tested and certified for Cisco Nexus 9000/3000, Catalyst 9500/9600, and ASR 9900 series.
Cost-Effective: Ideal for intra-rack and adjacent-rack connections vs. optical transceivers.
Industrial Reliability: BER < 10⁻¹⁵; operating temp: 0°C to 70°C.
| Parameter | Details |
|---|---|
| Part Number | QSFP-100G-CU3M= |
| Type | 100G QSFP28 Passive Direct Attach Copper (DAC) |
| Standard | 100GBASE-CR4, IEEE 802.3bm, QSFP28 MSA |
| Data Rate | 4×25.78Gbps (aggregate 100Gbps) |
| Length | 3 meters (9.84 ft) |
| Connector | QSFP28 to QSFP28 |
| Cable | 26 AWG twinaxial, shielded, 100Ω impedance |
| Power | Passive (0W); host power ≤0.5W |
| Temperature | 0°C to 70°C (32°F to 158°F) |
| Bend Radius | Min. 38mm |
| Jacket | PVC (OFNR), orange pull-tab |
| EMC | FCC Part 15 Class A, EN 55032 |
| MTBF | ~50 million hours |
| RoHS | Compliant |
