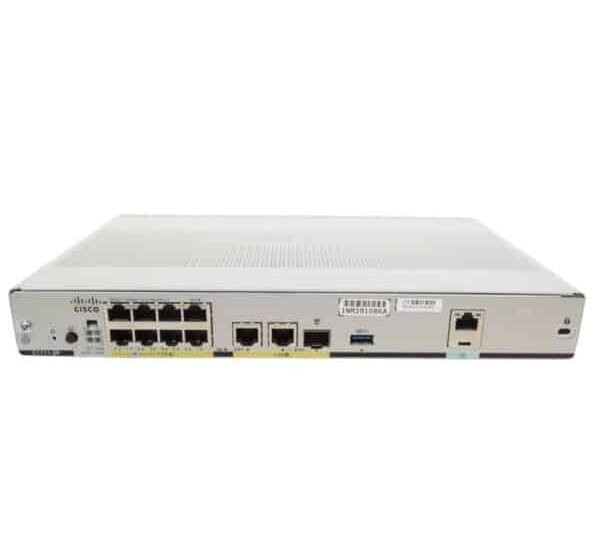

The Cisco C1111-8P is a 1RU rack-mountable/fanless desktop integrated services router from the Cisco 1100 Series ISR, purpose-built for small to medium-sized enterprise branches, retail locations, and remote sites. Running on Cisco IOS XE, it unifies high-performance routing, secure connectivity, Gigabit switching, and PoE/PoE+ capabilities in a compact, energy-efficient platform. Designed for reliable, always-on operations, it supports mission-critical applications like VoIP, video conferencing, and cloud services while ensuring robust security and SD-WAN readiness.
Throughput: Delivers up to 1.6 Gbps (IMIX) routing throughput and ~250 Mbps IPsec VPN encrypted throughput.
Fanless Design: Operates silently with a wide temperature range (0–40°C), ideal for noise-sensitive environments and non-IT spaces.
Power Efficiency: Low power consumption (max ~30 W), with an external universal AC power adapter (100–240V).
WAN Interfaces: 2× Gigabit Ethernet WAN ports — 1× RJ45 and 1× RJ45/SFP combo (fiber/copper flexible).
LAN Interfaces: 8× Gigabit Ethernet (10/100/1000) LAN ports.
PoE/PoE+: Supports 4× PoE (802.3af) and 2× PoE+ (802.3at) ports, with a 66W power budget (150W adapter required for full PoE+) to directly power IP phones, wireless APs, and cameras.
Secure Connectivity: Hardware-accelerated IPsec VPN, DMVPN, FlexVPN, GET VPN for encrypted WAN links.
Threat Defense: Built-in Zone-Based Firewall, ACLs, 802.1X port security, URL filtering, and TrustSec.
Secure Management: Supports SSH, SNMPv3, and secure WebUI for encrypted administration.
SD-WAN Capable: Fully compatible with Cisco DNA Center & vManage for orchestrated hybrid WAN (MPLS + Internet + LTE).
Voice & Video: Supports SRST, CUBE (SIP Trunking), and QoS for low-latency VoIP/video services.
Application Visibility: Integrates AVC & NBAR2 for application recognition, traffic prioritization, and performance analytics.
Management: Micro-USB Console, USB 3.0, WebUI, CLI, SNMP, NETCONF/YANG.
High Availability: WAN redundancy (failover/load balancing), hot-swappable modules (on select models), and Smart Licensing.
| Parameter | Specification |
|---|---|
| SKU | C1111-8P |
| Form Factor | 1RU Rack-mount / Desktop (fanless) |
| OS | Cisco IOS XE (16.9.1+) |
| Performance | Routing: Up to 1.6 Gbps (IMIX)VPN: ~250 Mbps (IPsec) |
| Fixed Ports | • WAN: 1× GE RJ45, 1× GE Combo (RJ45/SFP)• LAN: 8× GE (4× PoE, 2× PoE+)• Console: Micro-USB• USB: 1× USB 3.0 |
| Memory | DRAM: 4 GBFlash: 4 GB |
| PoE Budget | 66W (150W AC adapter required for full PoE+) |
| Power | External AC Adapter (100–240V AC, 50/60 Hz) |
| Dimensions (H×W×D) | 42 × 323 × 230 mm (1.75 × 12.7 × 9.03 in.) |
| Weight | 2.5 kg (5.5 lbs) w/ AC PSU |
