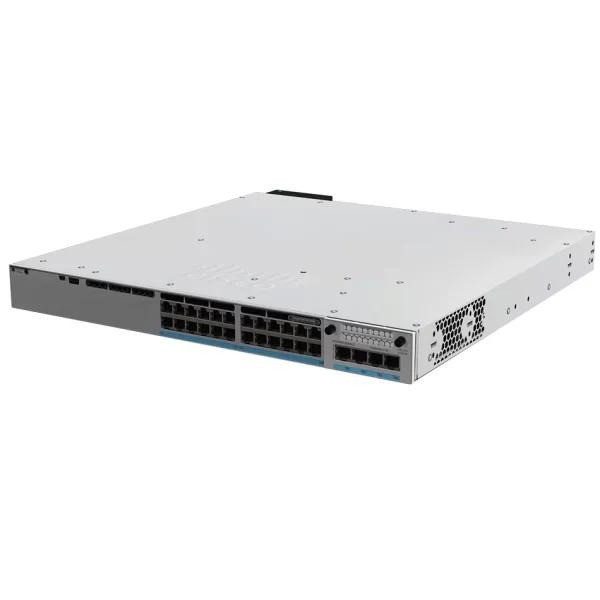

The Cisco Catalyst 9300-24UX-E is a high-performance, enterprise-grade access layer switch designed for the next-generation hybrid workplace. It is a key member of the Catalyst 9300 Series, offering 24 x Multi-Gigabit (mGig) UPOE ports and modular uplink slots, delivering exceptional speed, power, and security for high-density Wi-Fi 6/6E, IoT, and converged networks. The "-E" suffix signifies it is powered by the Cisco DNA Essentials license.
24 x Multi-Gigabit UPOE Ports: Support auto-sensing speeds of 100Mbps/1G/2.5G/5G/10G over standard Cat 5e/6/6a cabling.
Cisco UPOE: Delivers up to 60W per port (total budget: 490W) to power high-demand devices like Wi-Fi 6 APs, PTZ cameras, and remote displays.
Future-Proofing: Eliminates the need for costly cable upgrades while supporting 10Gbps endpoints.
Modular Uplink Module Slot: Compatible with high-speed modules (e.g., C9300-NM-2Y, C9300-NM-8X) for 25G, 10G, or 1G fiber/copper uplinks.
StackWise-480: Stack up to 8 switches for 480 Gbps of stacking bandwidth, creating a single, manageable logical unit.
StackPower: Share power supplies across the stack for N+1 redundancy and optimized power utilization.
MACsec-256 Encryption: Line-rate, hop-by-hop security for data-in-transit across ports.
TrustSec & SD-Access: Enforce network segmentation and policy-based access control.
Non-Stop Forwarding (NSF/SSO): Sub-50ms failover in a stack ensures zero packet loss.
Fast Software Upgrade: Reload/upgrade in <30 seconds with minimal traffic disruption.
Cisco DNA Essentials: Built-in for automation, analytics, and telemetry.
API-driven Automation: Supports NETCONF/YANG for simplified deployment and orchestration.
Quality of Service (QoS): Advanced queuing and traffic prioritization for voice, video, and critical data.
| Parameter | Detail |
|---|---|
| Product SKU | C9300-24UX-E |
| Switching Capacity | 640 Gbps |
| Forwarding Rate | 476.19 Mpps |
| Fixed Ports | 24 x Multi-Gigabit (100M/1G/2.5G/5G/10G) UPOE RJ45 |
| Uplink Module Slot | 1 x modular bay (supports 25G/10G/1G modules) |
| PoE Standard | IEEE 802.3af, 802.3at, Cisco UPOE (60W/port) |
| Total PoE Budget | 490W |
| Stacking | StackWise-480 (up to 8 switches, 480 Gbps) |
| MAC Address Table | 32,000 entries |
| Routing | Static Routing, RIPv2, EIGRP, OSPF (Essentials feature set) |
| Default Power Supply | 1 x PWR-C1-1100WAC-P (1100W AC) |
| Redundancy | Dual PSR capable, StackPower |
| Dimensions (H x W x D) | 1.73" x 17.5" x 17.5" (4.4 x 44.5 x 44.5 cm) |
