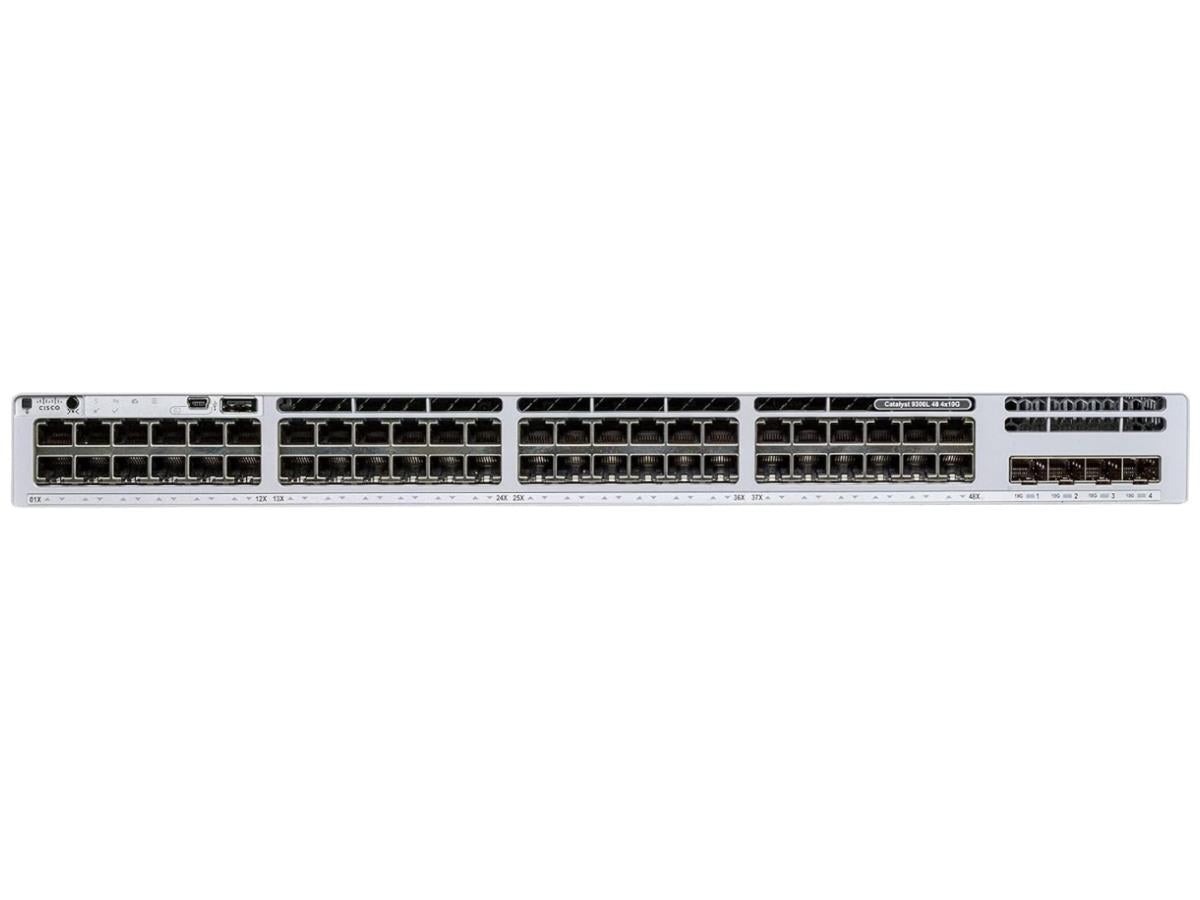

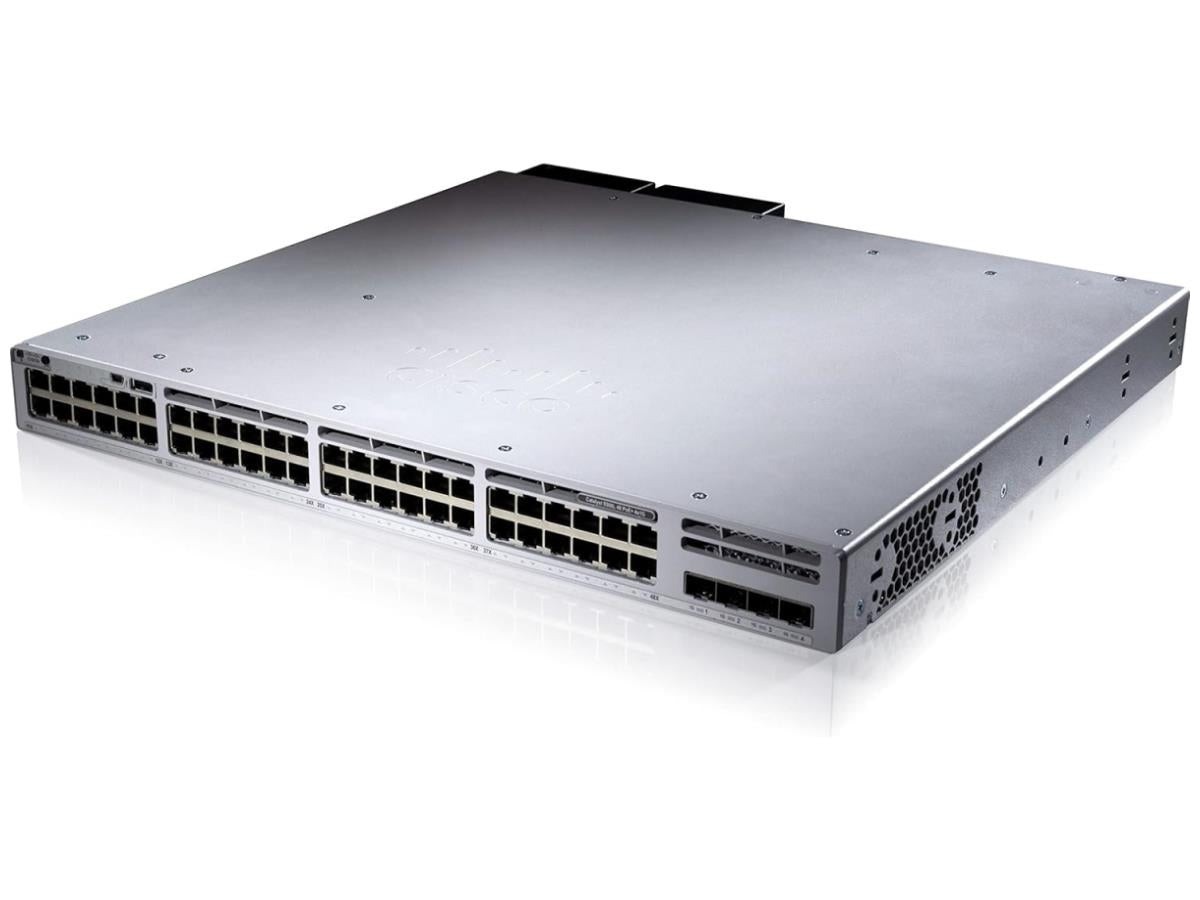

The Cisco Catalyst C9300L-48P-4X-E is a stackable enterprise-grade Layer 3 access switch optimized for modern campus and high-density IoT environments. It combines 48 Gigabit Ethernet PoE+ ports with 4 fixed 10G SFP+ uplinks, powered by the Cisco UADP 2.0 ASIC and Cisco IOS XE. Designed to power and connect wireless access points (WAPs), IP cameras, IP phones, and IoT devices, it offers seamless scalability, robust security, and high-speed uplink connectivity.
High-Density PoE+ Connectivity: 48 x 10/100/1000BASE-T PoE+ ports (30W per port), supporting a total PoE budget of up to 740W (single PSU) or 1440W (dual PSU) to power a full range of powered devices without external injectors.
10G High-Speed Uplinks: 4 x 10G SFP+ ports (backward compatible with 1G SFP) for high-bandwidth aggregation to core/distribution layers.
StackWise-320 Technology: Stack up to 8 switches with 320 Gbps stacking bandwidth, creating a single logical unit for simplified management and unified control.
Advanced Layer 3 Routing: Full IPv4/IPv6 static routing, RIP, OSPF, and PIM multicast for scalable, intelligent network segmentation.
Built-In Security: Trustworthy Solutions, Secure Boot, 802.1X authentication, MACsec encryption, DHCP Snooping, and IP Source Guard to protect against edge threats.
Smart Management: Web UI, CLI, SNMP, and Cisco DNA Center support for automation, telemetry, and SD-Access integration.
Energy Efficiency: Supports Energy Efficient Ethernet (EEE) with low-power operation and smart fan design.
| Parameter | Specification |
|---|---|
| Downlink Ports | 48 x 10/100/1000BASE-T RJ45 (PoE+) |
| Uplink Ports | 4 x 10G SFP+ (10G/1G) |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130.95 Mpps |
| PoE Power Budget | 740W (single AC PSU) / 1440W (dual AC PSU) |
| Stacking | StackWise-320, up to 8 units |
| MAC Address Table | 32,000 entries |
| VLANs | Up to 4094 |
| Jumbo Frames | 9198 bytes |
| Software License | Network Essentials (E) |
| OS | Cisco IOS XE |
| Form Factor | 1U rack-mountable |
| Power Supply | Dual modular PSU slots (default: 1 x 715W AC) |
| Operating Temp | -5°C to +45°C |
| Dimensions | 44.5 x 440 x 450 mm |
| Weight | ~5.2 kg |
