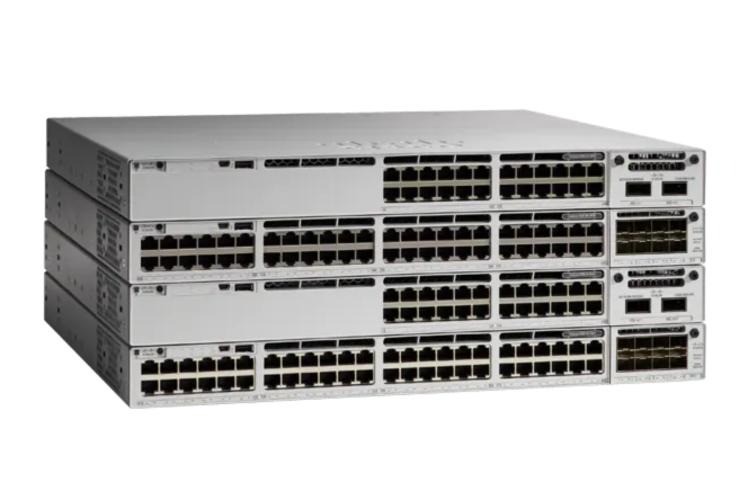

The Cisco Catalyst C9300L-48T-4G-E is a high-performance, stackable Layer 2/Layer 3 access switch designed for enterprise campus networks and small-to-medium businesses. It provides 48 fixed Gigabit Ethernet data ports for high-density device connectivity, paired with 4 fixed 1G SFP uplink ports for reliable fiber-based aggregation to the distribution or core layer. Powered by Cisco IOS XE and UADP 2.0 technology, it delivers enterprise-grade security, robust routing, and simplified management, making it an ideal choice for modern, converged networks.
High-Density Gigabit Connectivity
48 x 10/100/1000BASE-T RJ45 data ports (Non-PoE).
Supports high-density deployments for desktops, servers, and IP devices without PoE requirements.
Flexible 1G Uplinks
4 x fixed 1G SFP ports for fiber or copper uplinks.
Ensures reliable, high-bandwidth connectivity to the network core.
Advanced Layer 3 Routing
Full Layer 3 capabilities including static routing, RIP, OSPF, and PIM stub multicast.
Delivers intelligent traffic forwarding and network segmentation.
Cisco StackWise-320 Stacking
Stack up to 8 switches into a single logical unit.
Provides 320 Gbps stacking bandwidth and single-IP management for simplified operations.
Enterprise-Grade Security
Secure Boot and Trust Anchor for hardware-level system integrity.
802.1X Authentication, MACsec encryption, DHCP Snooping, and IP Source Guard to protect against threats.
Simplified Management
Managed via Cisco DNA Center, CLI, Web UI, or NETCONF/RESTCONF.
Includes Network Essentials license for full access to enterprise features.
Energy Efficiency
Supports Energy Efficient Ethernet (EEE) and modular, high-efficiency power supplies for reduced power consumption.
<td align="left" style="font-variant-numeric: normal; font-variant-east-asian: normal; font-variant-alternates: normal; font-size-adjust: none; font-kerning: auto; font-optical-sizing: auto; font-feature-settings: normal; font-variation-settings: normal; font-variant-position: normal; font-variant-emoji: normal; font-stretch: normal; line-height: 24px; flex: 0 1 auto; flex-d
| Parameter | Details |
|---|---|
| Model | C9300L-48T-4G-E |
| Downlink Ports | 48 x 10/100/1000BASE-T (RJ45) Data Ports (Non-PoE) |
| Uplink Ports | 4 x 1G SFP (Fixed) |
| Switching Capacity | 104 Gbps |
| Forwarding Rate | 77.38 Mpps |
| Layer Support | Layer 2 / Layer 3 |
| Stacking | StackWise-320 (up to 8 units) |
| Software License | Network Essentials (E) |
| Operating System | Cisco IOS XE |
| MAC Address Table | 32,000 entries |
| VLANs | Up to 1,024 |
| Jumbo Frames | Up to 9198 bytes |
| Power Supply | Dual modular slots (1 x PWR-C1-350WAC-P default) |
| Fan | Dual redundant fixed fans |
| Dimensions (W x D x H) | 44.5 x 44.9 x 4.4 cm (1U Rack-mount) |
