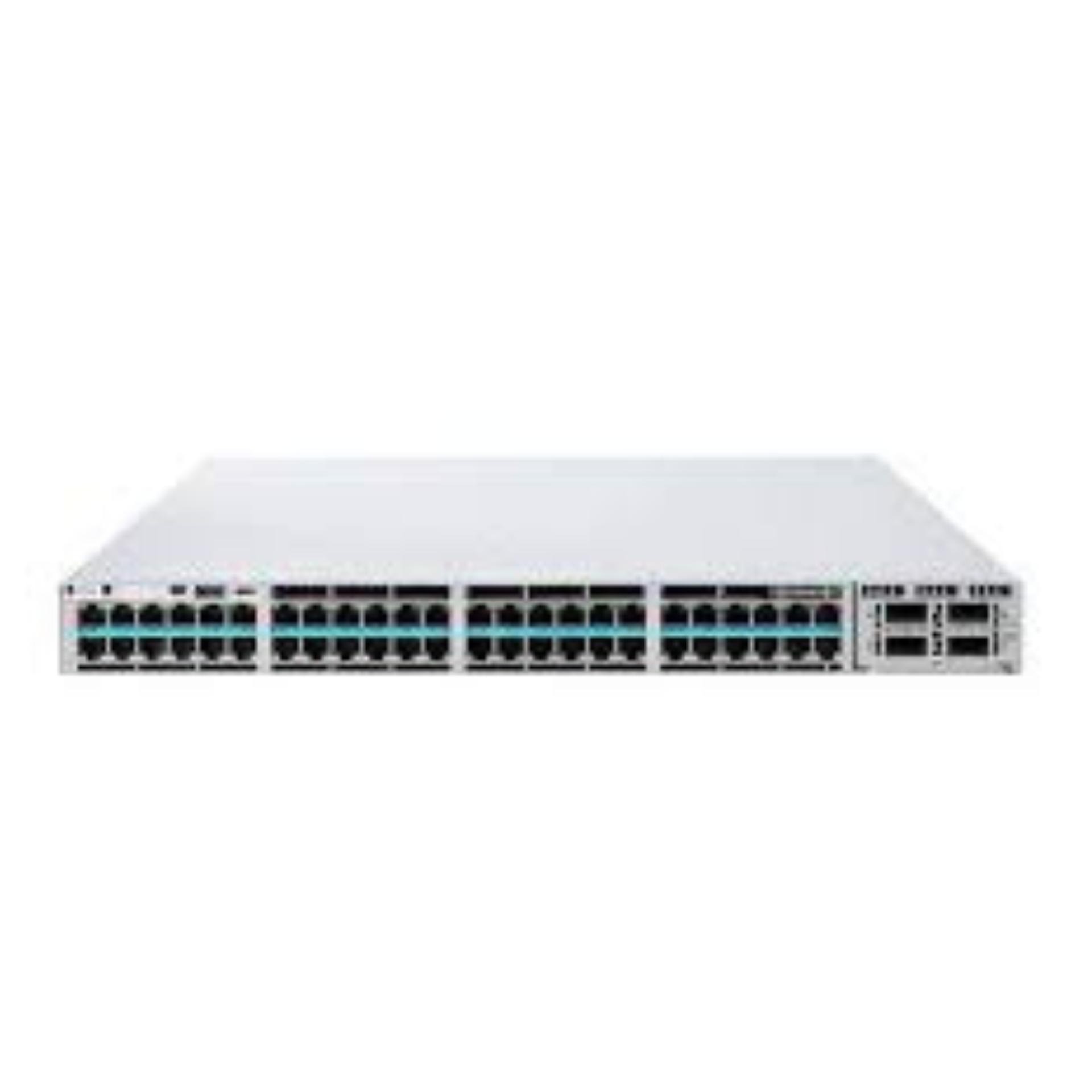

Cisco Catalyst C9300X-48TX-E

Key Features & Benefits

1. High-Density Multi-Gigabit Connectivity

• 48 x 10G/mGig Ports: Auto-sensing RJ45 ports supporting 1G, 2.5G, 5G, and 10G over standard Cat 5e/6/6a cabling, protecting existing infrastructure investments.

• Modular Uplink Bay: 1 x hot-swappable slot supporting high-speed uplink modules:

• 2x100G/40G (C9300X-NM-2C)

• 4x100G/40G (C9300X-NM-4C)

• 8x25G/10G (C9300X-NM-8Y)

• Data-Only Design: No PoE functionality, making it ideal for servers, storage, and high-performance workstations.

2. Performance & Scalability

• UADP 2.0Sec ASIC: Delivers wire-speed performance with a 2 Tbps switching capacity and 1.488 Bpps forwarding rate.

• StackWise-1T: Industry-leading 1 Tbps stacking bandwidth, allowing you to stack up to 8 switches into a single, manageable unit.

• High Memory: 16 GB DRAM and 16 GB Flash for large routing tables and advanced feature support.

3. Security & Reliability

• Hardware Security: Supports AES-256 MACsec encryption for secure, line-rate data transmission.

• Resiliency: Dual redundant power supplies (optional), StackPower (power sharing), and Non-Stop Forwarding (NSF/SSO) for sub-50ms failover.

4. Network Essentials License

• Core Layer 3: Static routing, RIP, OSPF, EIGRP (stub), and basic IPv4/IPv6 support.

• Automation: Programmable with NETCONF/RESTCONF/YANG for streamlined operations.

• Monitoring: Flexible NetFlow (FNF), QoS, and ACLs for traffic management and security.
