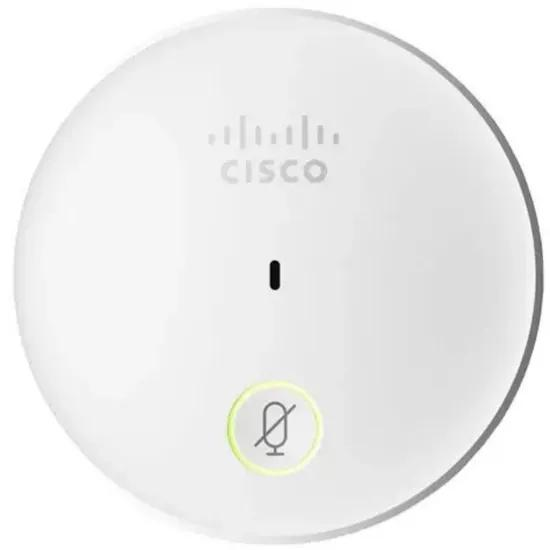

CS-MIC-TABLE-J= is a professional, omnidirectional boundary table microphone designed for clear, full-room audio capture in Cisco Webex collaboration environments. It features a sleek, low-profile white design, integrated mute button, and a 4-pin 3.5mm (mini-jack) connector with a 7.5m cable, ideal for huddle spaces, small-to-large conference rooms.
Omnidirectional Audio Pickup
360° boundary-layer condenser design for uniform voice capture across the table
Frequency response: 80 Hz – 20 kHz for natural, intelligible speech
High SNR: ≥70 dB; Sensitivity: -34 dB (1V/Pa at 1kHz)
Integrated Mute & LED Indicator
Large central mute button with bright LED status ring (green=active, yellow=muted)
Instant hardware mute for privacy and meeting control
Sleek, Low-Profile Design
Ultra-slim: Ø6.39 cm × 1.09 cm (H); Weight: 126 g
Clean white finish (First Light) to match Cisco room systems
Can be placed directly on tables or recessed for a flush install
7.5 m (24.6 ft) shielded cable for flexible routing
Wired Connectivity (Phantom Power)
4-pin 3.5 mm (TRRS) mini-jack connector
Powered via 9–52 V phantom power from the codec (no external power)
Wide Compatibility
Works with: Webex Room Kit/Plus/Pro, Room 55/Dual, Room 70/G2, SX10/20/80, MX700/800
| Parameter | Details |
|---|---|
| Part Number | CS-MIC-TABLE-J= |
| Product Name | Cisco Table Microphone (3.5mm 4-pin Jack) |
| Type | Boundary condenser, table-mounted |
| Polar Pattern | Omnidirectional |
| Frequency | 80 Hz – 20 kHz ±6 dB |
| Sensitivity | -34 dB ±3 dB (1V/Pa at 1kHz) |
| SNR | ≥70 dB |
| Connector | 4-pin 3.5 mm (TRRS) male |
| Cable Length | 7.5 m (24.6 ft) |
| Power | Phantom power 9–52 V DC |
| Dimensions | Ø63.9 mm × 10.9 mm |
| Weight | 126 g |
| Color | White (First Light) |
| Warranty | 1-year Cisco standard |
