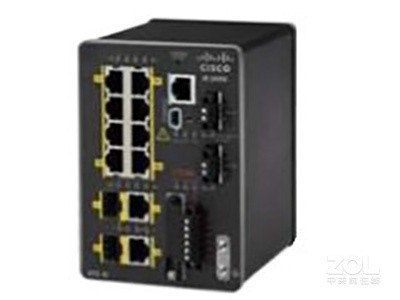

The Cisco IE-2000-8TC-G-E is a rugged, managed Layer 2 industrial Ethernet switch from the Cisco IE 2000 Series. It is purpose-built for harsh industrial environments, equipped with 8 Fast Ethernet (10/100) ports and 2 Gigabit Ethernet combo uplink ports (RJ45/SFP). Preloaded with Cisco IOS LAN Base features and native IEEE 1588v2 PTP support, it delivers secure, resilient, and precision-time-synchronized connectivity for factory automation, smart grid, intelligent transportation, and IIoT applications.
Industrial Rugged Design
IP30-rated metal chassis, dust-resistant, wide humidity tolerance (5–95% non-condensing)
Extended operating temperature: -40°C to +75°C
DIN-rail mountable, compact form factor
High shock (50g) and vibration (5g) resistance
Port Configuration
8 x 10/100Base-TX Fast Ethernet RJ45 ports
2 x Gigabit Ethernet combo ports (10/100/1000Base-T RJ45 or 1000Base-X SFP)
Non-PoE model
Network Resiliency
Cisco Resilient Ethernet Protocol (REP) and PROFINET MRP for sub-50ms failover
Supports STP/RSTP/MSTP, Flex Links
Industrial-Grade Security & Management
802.1X, SSHv2, SNMPv3, ACLs, DHCP Snooping
Web GUI, CLI, Telnet, SNMP, Cisco Network Assistant
Dual redundant 9.6–60V DC power inputs
Alarm I/O: 2 inputs, 1 relay output
Removable SD card (up to 1GB) for config backup; mini-USB console
Industrial Protocol Support
IEEE 1588v2 Precision Time Protocol (PTP) (hardware-accelerated)
Native EtherNet/IP (CIP) and PROFINET
Upgradeable to Layer 2 NAT via Enhanced LAN Base license
| Parameter | Details |
|---|---|
| Part Number | IE-2000-8TC-G-E |
| Series | Cisco Industrial Ethernet 2000 |
| Switch Type | Managed Layer 2 (LAN Base License) |
| Copper Ports | 8 × 10/100Base-TX (FE) |
| Uplink Ports | 2 × GE Combo (RJ45/SFP) |
| Switching Capacity | 16 Gbps |
| Forwarding Rate | 11.9 Mpps |
| MAC Table | 8,000 entries |
| Packet Buffer | 2 MB |
| Memory | 256 MB DRAM (ECC), 64 MB Flash |
| Power Input | Dual 9.6–60V DC redundant |
| Power Consumption | 12.5–20 W (typical) |
| Dimensions (H×W×D) | 127 × 45.7 × 134 mm |
| Weight | 1.8 kg |
| Operating Temp | -40°C to +75°C |
| Certifications | UL, CSA, IEC, EN, CE, FCC |
| MTBF | 374,052 hours |
| Warranty | 5-year Cisco limited hardware warranty |
