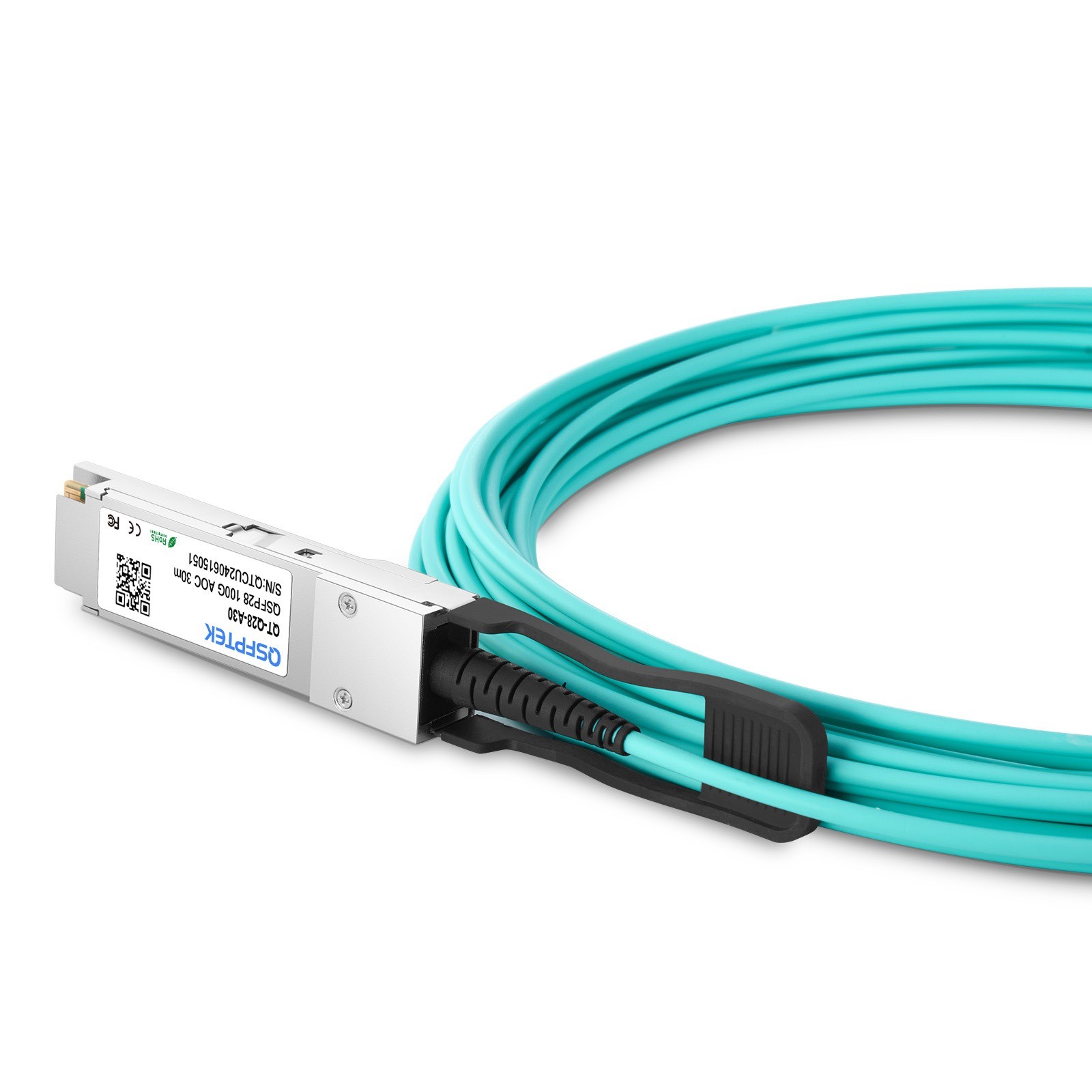

The Cisco QSFP-100G-AOC30M= is a 30-meter, 100Gbps QSFP28 Active Optical Cable (AOC) designed for high-speed, medium-reach interconnects within data centers. It delivers a reliable, lightweight, and flexible solution for connecting network switches, servers, and storage devices across longer intra-rack or inter-rack distances.
100Gbps High BandwidthFour lanes of 25Gbps NRZ for a total full-duplex bandwidth of 100Gbps, fully compliant with 100GBASE-SR4 and QSFP28 MSA (SFF-8665) standards.
Extended 30m ReachOptimized for 30-meter links, supporting connections between non-adjacent racks or across large data center zones.
Superior Signal IntegrityImmune to Electromagnetic Interference (EMI), ensuring stable performance and eliminating crosstalk compared to copper DAC cables.
Lightweight & FlexibleUltra-thin OM4 multi-mode fiber cable with a 30mm minimum bend radius, enabling easy cable routing and improved airflow in high-density racks.
Low Power ConsumptionEnergy-efficient design with typical power usage of < 3.5W per end, reducing data center cooling costs.
Hot-Pluggable & Cisco-CertifiedFully tested for compatibility with Cisco Nexus 9000/3000 series switches and other QSFP28-enabled devices. Supports Online Insertion and Removal (OIR).
Green Pull-Tab IdentificationStandard green color-coded pull-tab for easy visual identification of 30-meter AOC assemblies.
Industrial SafetyLSZH (Low Smoke Zero Halogen) jacket, RoHS compliant, and operates over a commercial temperature range of 0°C to 70°C.
| Parameter | Specification |
|---|---|
| Part Number | QSFP-100G-AOC30M= |
| Form Factor | QSFP28 to QSFP28 Active Optical Cable (AOC) |
| Data Rate | 100 Gbps (4 × 25 Gbps channels) |
| Cable Length | 30 Meters (98.4 ft) |
| Fiber Type | OM4 Multi-Mode Fiber (MMF) |
| Optical Wavelength | 850 nm |
| Transmitter | 4-channel VCSEL array |
| Receiver | 4-channel PIN photodetector array |
| Power Consumption | < 3.5W per end |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Minimum Bend Radius | 30 mm |
| Connector Type | QSFP28 (SFF-8665) |
| Cable Jacket | LSZH (Low Smoke Zero Halogen) |
| Compliance | IEEE 802.3bm, QSFP28 MSA, RoHS |
| Digital Diagnostic Monitoring (DDM) | Yes |
| Applications | 100G Ethernet, InfiniBand EDR, Data Center Inter-Rack Links, High-Performance Computing (HPC) |
