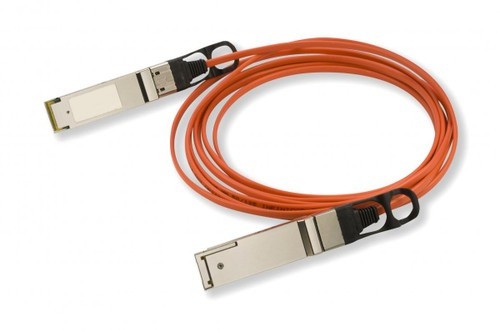

QSFP-H40G-AOC2M= is a Cisco original 2-meter 40G QSFP+ Active Optical Cable (AOC). It is a high-speed, point-to-point interconnect solution designed for short-reach 40Gbps Ethernet connections within data centers, specifically for intra-rack and adjacent-rack applications. This cable integrates QSFP+ transceivers with fiber optic cabling, offering a lightweight, EMI-free alternative to copper DAC cables.
40Gbps High-Speed ConnectivityDelivers full-duplex 40 Gigabit bandwidth (4 x 10Gbps channels), complying with IEEE 802.3ba (40GBASE-SR4) and QSFP+ MSA (SFF-8436) standards.
Active Optical Cable (AOC) TechnologyBuilt-in optical signal drivers and amplifiers ensure reliable 2-meter transmission. Provides zero electromagnetic interference (EMI) and improved signal integrity compared to copper cables.
Low Power ConsumptionEnergy-efficient design with typical power usage of 1.5W per end.
Hot-Pluggable QSFP+ Form FactorSupports Online Insertion and Removal (OIR) for seamless deployment and maintenance without network downtime.
Ultra-Lightweight & FlexibleConstructed with thin OM3/OM4 multi-mode fiber (850nm wavelength). Features a small minimum bend radius (≥30mm) for easy routing in high-density rack environments.
Cisco CompatibilityFully validated and compatible with Cisco Nexus 9000/7000/6000/5000/3000 and Catalyst 6800/6500 series switches.
Industrial ComplianceLSZH (Low Smoke Zero Halogen) jacket, RoHS compliant, and operates within a commercial temperature range of 0°C to 70°C.
Visual IdentificationBrown-colored pull-tab for easy identification.
| Parameter | Specification |
|---|---|
| Part Number | QSFP-H40G-AOC2M= |
| Form Factor | QSFP+ to QSFP+ Active Optical Cable (AOC) |
| Data Rate | 40 Gbps (4 x 10.3 Gbps per channel) |
| Cable Length | 2 Meters (6.56 ft) |
| Fiber Type | OM3 / OM4 Multi-Mode Fiber (MMF) |
| Optical Wavelength | 850 nm |
| Power Consumption | ~1.5W per end |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -40°C to 85°C |
| Minimum Bend Radius | ≥ 30 mm |
| Connector Type | QSFP+ (SFF-8436) |
| Cable Jacket | LSZH (Low Smoke Zero Halogen) |
| Compliance | IEEE 802.3ba, QSFP+ MSA SFF-8436, RoHS |
| Hot Swap Support | Yes |
| Typical Applications | 40G Ethernet, Data Center Intra-Rack Links, Server-to-Switch, Storage-to-Switch, High-Performance Computing (HPC) |
