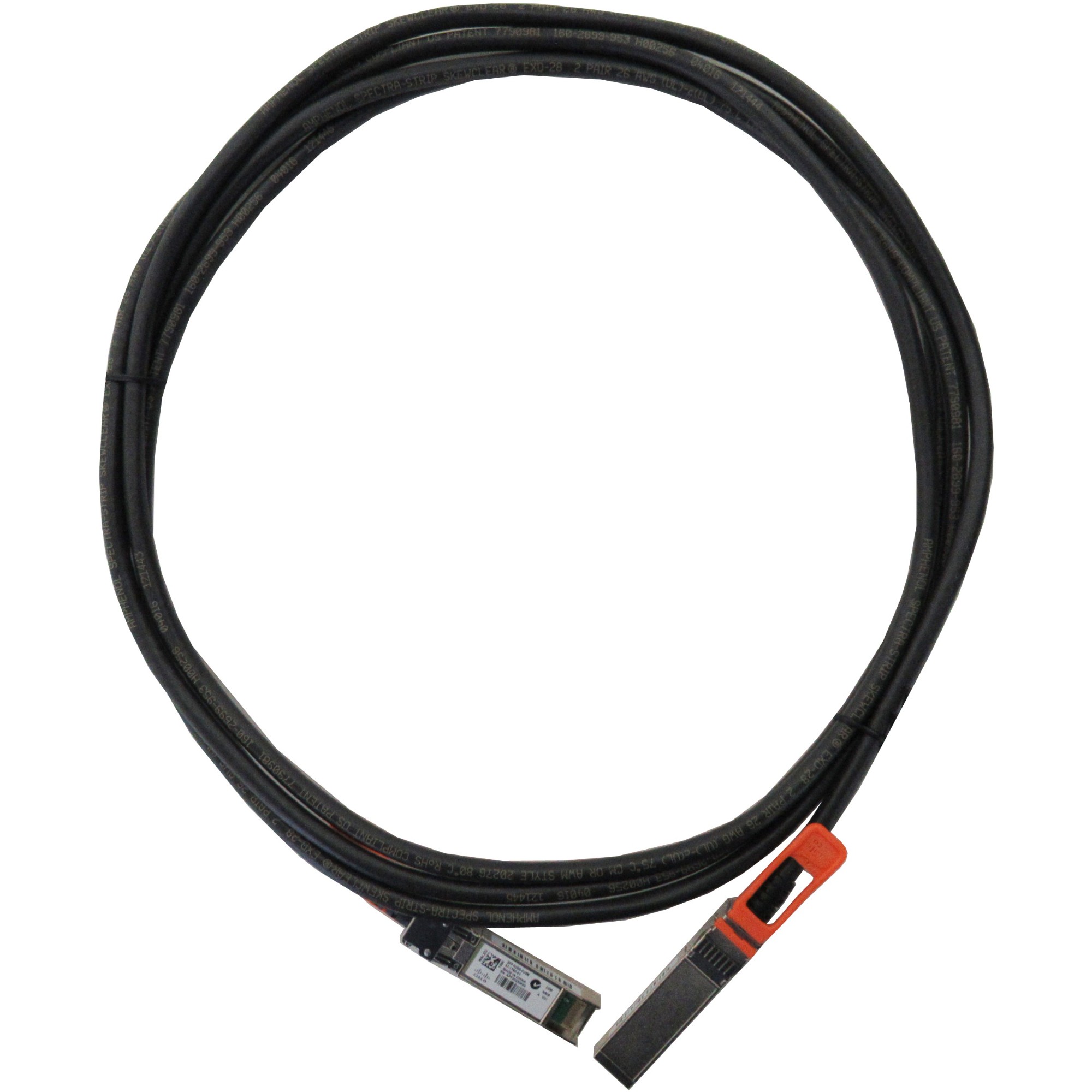

SFP-H25G-CU3M= is a Cisco 3-meter 25G SFP28 Passive Direct Attach Copper Twinax Cable (DAC). It is a high-speed, cost-effective solution for short-reach 25GBASE-CR1 connections within data center racks and between adjacent cabinets. Engineered for high-density environments, it delivers 25Gbps full-duplex transmission with zero power consumption, ultra-low latency, and superior signal integrity.
25Gbps High-Speed TransmissionFull-duplex 25.78125 Gbps, compliant with IEEE 802.3by 25GBASE-CR1 and SFP28 MSA standards.
Passive Copper DesignPassive twinax cable with 0W power consumption, maximizing energy efficiency. Lowest-cost, lowest-latency option for short-reach links.
Hot-Swappable SFP28Online Insertion and Removal (OIR) without network downtime, simplifying installation and maintenance.
High-Density & FlexibleLightweight 30AWG cable with a small bend radius (~30mm), ideal for high-density rack deployments.
Cisco Compatibility & QualityFully tested and certified for Cisco switches (Nexus 9000/3000, Catalyst 9300/9500 series).
Industrial SpecificationsLSZH (Low Smoke Zero Halogen) jacket, RoHS compliant, operating temperature 0°C to 70°C.
| Parameter | Specification |
|---|---|
| Part Number | SFP-H25G-CU3M= |
| Form Factor | SFP28 to SFP28 Passive Direct Attach Copper Cable (DAC) |
| Cable Type | Twinax Copper, 30AWG |
| Length | 3 Meters (9.84 ft) |
| Data Rate | 25.78125 Gbps (25GBASE-CR1) |
| Interface | SFP28 (SFF-8402) |
| Power Consumption | 0W (Passive) |
| Operating Temperature | 0°C to 70°C (Commercial) |
| Bend Radius | Minimum ~30 mm |
| Cable Jacket | LSZH (Low Smoke Zero Halogen) |
| Standards | IEEE 802.3by, SFP28 MSA, SFF-8402 |
| Hot Swap | Yes |
| FEC Requirement | BASE-R FEC (FC-FEC) on host ports |
| Applications | 25G Ethernet, Data Center Intra-Rack/Inter-Rack Links, Server-to-Switch Connections |
