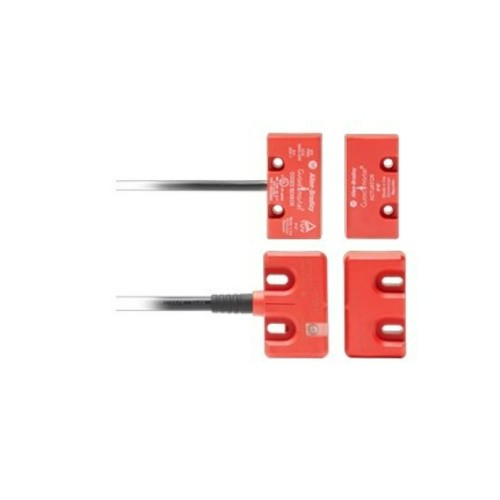

Magnetically Coded Non-contact Interlock Switches

Our Magnetically Coded Non-contact Interlock Switches, with molded-in brackets and diminutive sizes, are extremely versatile and simple to install. For high-risk applications, the control unit is used with a single sensor to give a high-integrity system.

Overview

Non-contact actuation
Magnetic coded sensing
High tolerance to misalignment
Designed for use with specified controllers

Product Selection

Catalog Number	Description	Accessories
440N-Z21W1PA	Magnetically Coded, MC2, 2 N.C. Solid-State Relay Safety Outputs, 1 x PNP (0.2 A max), Status: OFF (0V DC) Aux Outputs, LED Indicator, 3 M Cable
440N-Z21W1PB	Magnetically Coded, MC2, 2 N.C. Solid-State Relay Safety Outputs, 1 x PNP (0.2 A max), Status: OFF (0V DC) Aux Outputs, LED Indicator, 10 M Cable
440N-Z21W1PH	Magnetically Coded, MC2, 2 N.C. Solid-State Relay Safety Outputs, 1 x PNP (0.2 A max), Status: OFF (0V DC) Aux Outputs, LED Indicator, 6 inch Pigtail with 8-Pin Micro (M12) Connector
440N-Z2NRS1A	Magnetically Coded, MC1, 2 N.C. REED Switch Contacts, No LED Indicator, 3 M Cable
440N-Z2NRS1B	Magnetically Coded, MC1, 2 N.C. REED Switch Contacts, No LED Indicator, 10 M Cable
440N-Z2NRS1C	Magnetically Coded, MC1, 2 N.C. REED Switch Contacts, No LED Indicator, 6 inch Pigtail with 4-Pin Micro (M12) Connector
