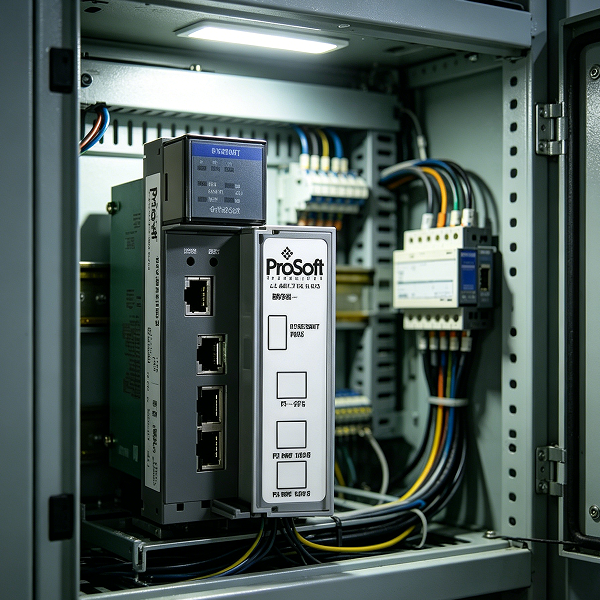

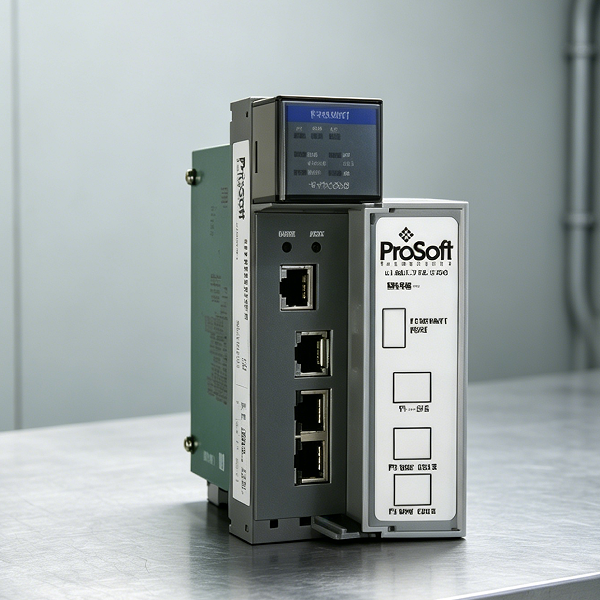

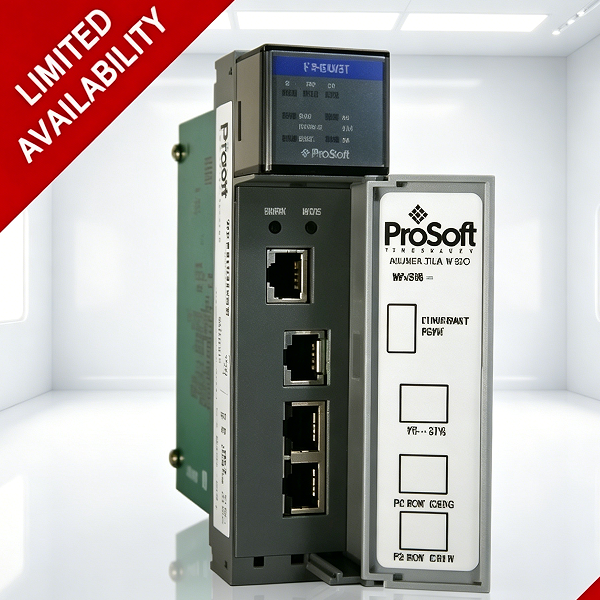

MVI46-DFNT EtherNet/IP Client/Server Network Interface Module for SLC

MVI46-DFNT EtherNet/IP Client/Server Network Interface Module for SLC

The EtherNet/IP Client/Server Network Interface Module allows SLC processors to interface with EtherNet/IP protocol (Explicit Messaging) compatible devices and hosts. The SLC 5/05 with the MVI46-DFNT module provides a second EtherNet/IP port to a separate subnet for communicating with a HMI or SCADA host. For other SLC processors the module provides a serial pass-thru channel 0 service for remote Ethernet programming and troubleshooting.

Features and Benefits

The MVI46-DFNT module is a single slot solution that provides a powerful connection between Rockwell Automation's SLC processor and EtherNet/IP (DF1 for Ethernet) network applications.

The module can send read or write commands to remote devices on the EtherNet/IP network. The MVI46-DFNT also has 20 servers that allow the module to receive commands from remote devices. The MVI46-DFNT Pass-Through server allows the user to edit and transfer the SLC ladder logic using an Ethernet connection. Up to 100 commands can be configured by the user.
