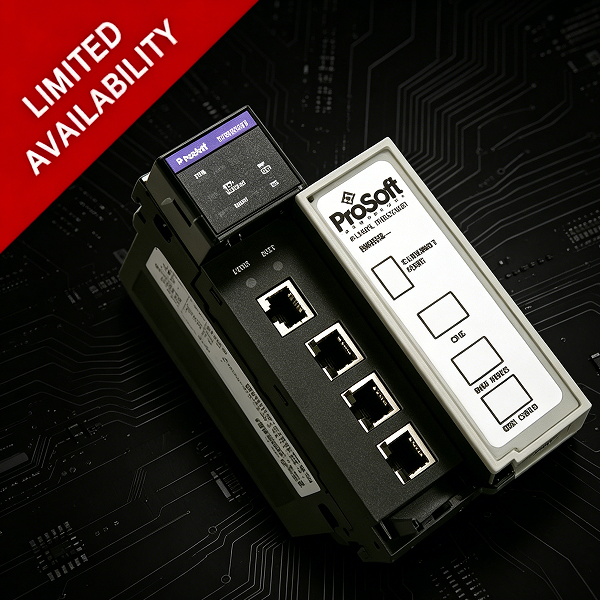

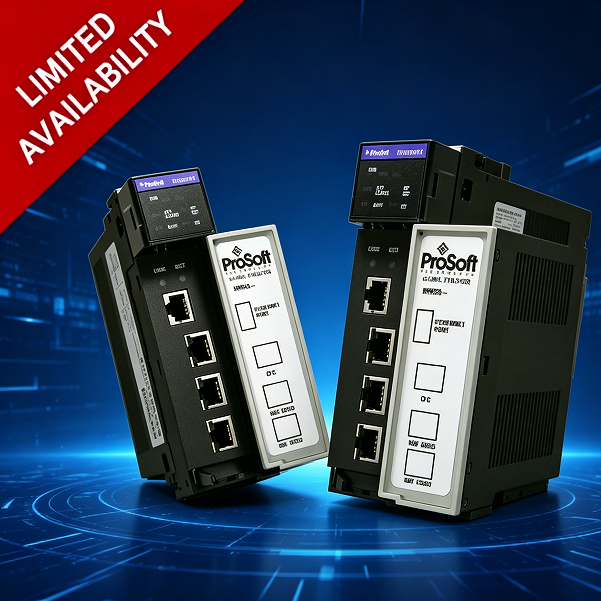

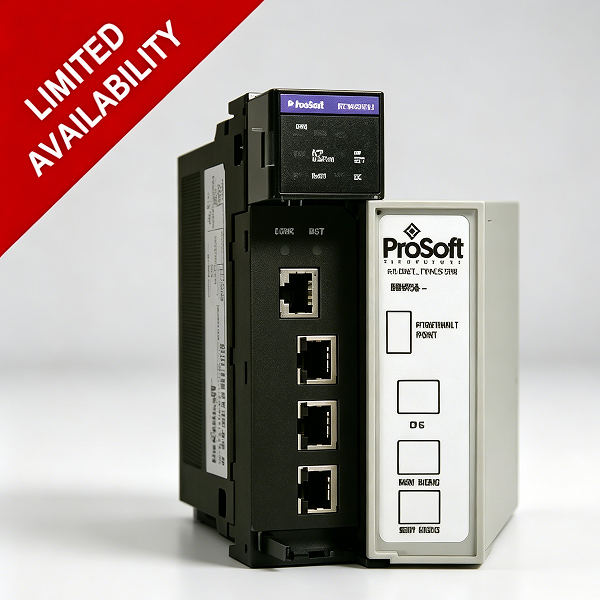

MVI56-104S IEC 60870-5-104 Ethernet Server Network Interface Module for ControlLogix

Features and Benefits

The MVI56-104S module acts as an input/output module between the IEC 60870-5-104 Ethernet network and the Rockwell Automation backplane. The data transfer from the ControlLogix processor is asynchronous from the actions on the network. A 4000-word register space in the module exchanges data between the processor and the Ethernet network.

Applications

The MVI56-104S module has been designed to address the application where a device using the IEC 60870-5-104 protocol needs to communication with the Rockwell Automation processor. As such, the IEC server module can be used as a gateway in many SCADA installations in industries such as:

• Power

• Petrochemical

• Water treatment

• Oil and gas production

Specifications

• Single Slot - 1756 backplane compatible

• The module is recognized as an Input/Output module and has access to processor memory for data transfer between processor and module

• Ladder Logic is used for data transfer between module and processor. Sample ladder file included.

• Configuration data obtained from configuration text file downloaded to module. Sample configuration file included

• Local or remote rack

The MVI56-104S module accepts data read/write commands from a master/client on the network. In addition, the module can be configured to generate unsolicited messages in either a spontaneous or cyclic fashion.The module has 4000 words of user defined internal register space that are accessible to the protocol driver and to the ControlLogix processor memory. Any of the supported database types can be individually located (within the total database size limit of 4000 words) and each database point is mapped within the module and can be assigned to one or more Groups. The supported database point types are:
