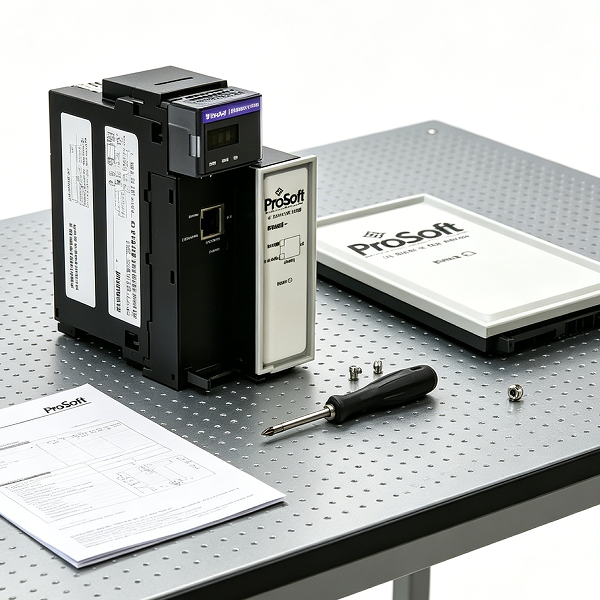

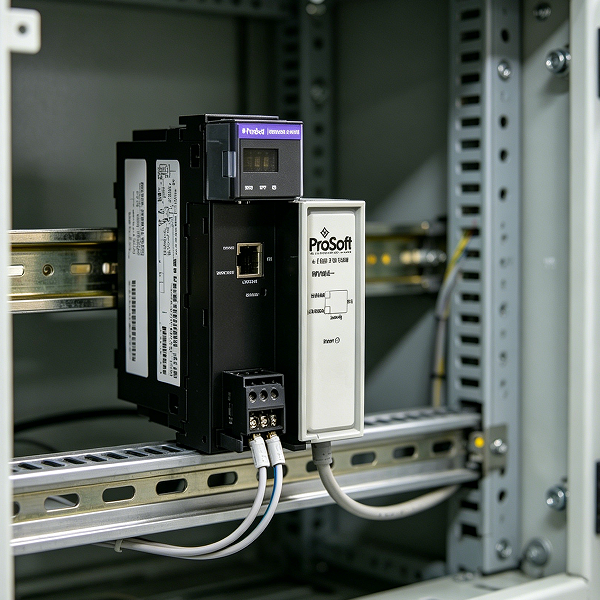

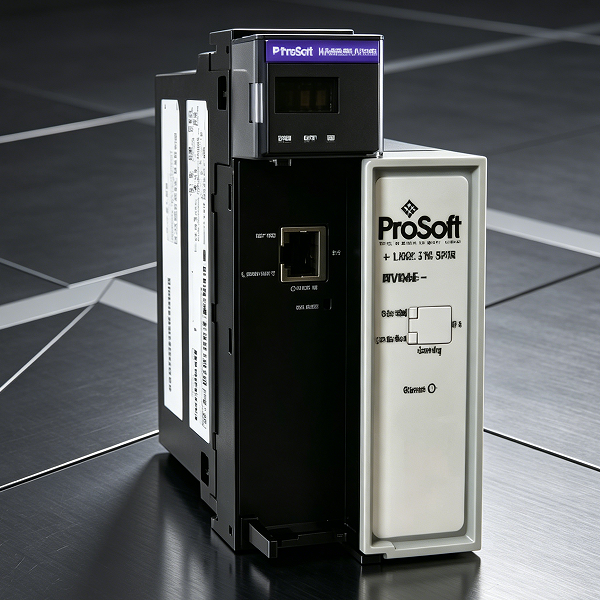

MVI56E-MNETCR Modbus TCP/IP Multi Client Enhanced Network Interface Module with Reduced Data Block for ControlLogix

MVI56E-MNETCR Modbus TCP/IP Multi Client Enhanced Network Interface Module with Reduced Data Block for ControlLogix

The MVI56E Modbus TCP/IP Multi Client Enhanced Communication Module for Remote Chassis allows Rockwell Automation ControlLogix Programmable Automation Controllers (PACs) to interface easily with multiple Modbus TCP/IP server-compatible instruments and devices. The Multi Client module improves performance when controlling multiple servers on a Modbus TCP/IP network, by supporting up to 30 clients.
MVI56E enhancements include configuration and management through the module Ethernet port, CIPconnect technology for bridging through ControlNet and EtherNet/IP networks, and has a web server to access on-board documentation, Add-On Instructions, and sample program files.
This module uses a small I/O data image for transfer of data between the module and the ControlLogix processor, making it ideal for ControlNet or Ethernet applications with the module in a remote rack.

Features and Benefits

Supports up to 30 Clients	Faster response for multi server applications Reduces network traffic Minimizes impact to other server communications when one server device goes off-line
RSLogix 5000 Integrated	The module communication is integrated with RSLogix 5000 using a supplied Add-On Instruction (AOI) or ladder file No additional PAC/PLC programming required
Enable/Disable commands easily from ladder logic.	Programatically enable various networked devices and their functions to support multiple applications or recipes, without having to reconfigure the module
Remotely configure and diagnose problems	Easy to use Windows-based configuration software connects through remote racks using EtherNet/IP and/or ControlNet via a 1756-EnxT and/or 1756-CNB interface module without requiring RSLinx OEM saving you money Allows support of IT and Automation network segmentation
Web-enabled Ethernet port	The module has a built-in web server for easy access to documentation, module status, and to update firmware
MVI56 backward compatible	Assists in extending current MVI56 applications by using newer technology that supports existing MVI56 ladder logic and module configuration

Specifications

Backward compatible with previous MVI56-MNETCR versions
Single-slot 1756 ControlLogix backplane compatible
10/100 Mbps auto crossover detection Ethernet configuration and application port
User-definable module data memory mapping of up to 5000, 16-bit registers
ProSoft Configuration Builder (PCB) software supported, a Windows-based graphical user interface providing simple product and network configuration
Sample ladder logic and Add-On Instructions (AOI) are used for data transfer between module and processor
Internal web server provides access to product documentation, module status, diagnostics, and firmware updates
4-character, alpha-numeric, scrolling LED display of status and diagnostics data in plain English - no cryptic error or alarm codes to decipher
ProSoft Discovery Service (PDS) software used to locate the module on the network and assign temporary IP address
Personality Module - a non-volatile industrial-grade Compact Flash (CF) card used to store network and module configuration for easy disaster recovery, allowing quick in-the-field product replacement by transferring the CF card
