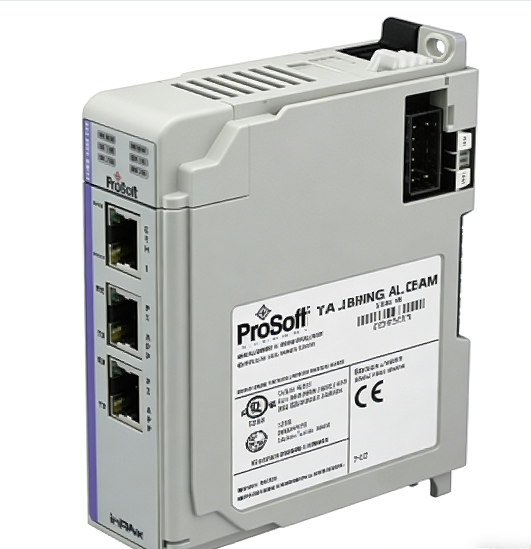

The MVI69E-LDM module allows users to develop and deploy C/C++ custom algorithm applications for CompactLogix™ systems. Users are also able to create drivers for specialty Ethernet and Serial end-devices. The Linux Development module comes with a built-in API for backplane communications to the processor.
With the separate Development Kit, you are the developer who controls exactly what this module can and cannot do.
Check out a real-world example using this solution: Solving Ship's Communication Issue.
Ideal for custom algorithm applications
One independent Ethernet port, and two independent, isolated, serial ports (RS232/422/485)
Industrial fan-less design
Built-in API included for backplane communications to the processor
Linux Virtual Machine (VM) and development environment provided on our website
VM contains preinstalled toolchain and libraries
VM contains the popular Eclipse IDE
Ethernet & multi-serial port example applications provided on VM
Specification | Description |
CPU | 400MHz ARM9 G20 |
Operating System | Linux (kernel 2.6.33.7) |
Linux Distribution | TimeSys |
System Memory | 64MB SDRAM |
Flash Memory | 256MB NAND Flash |
