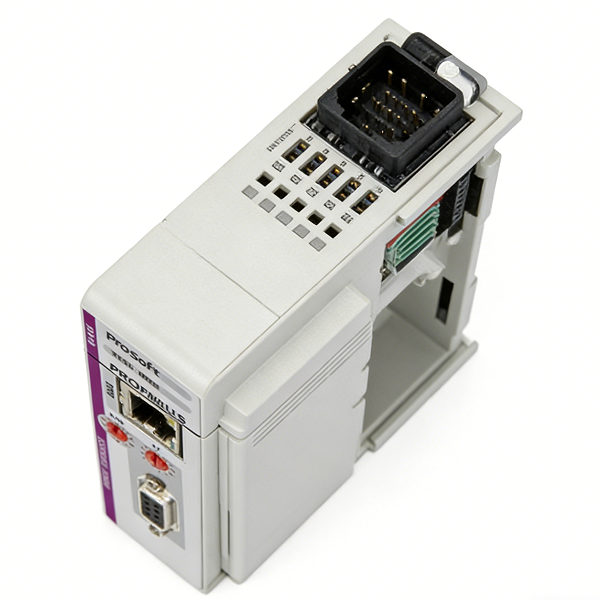

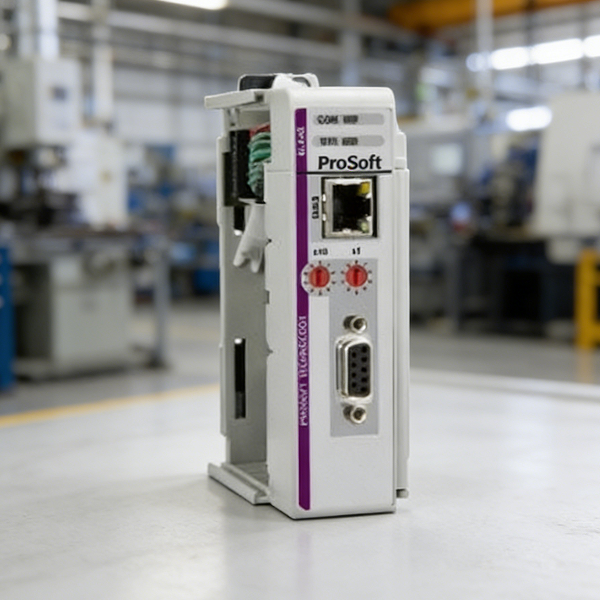

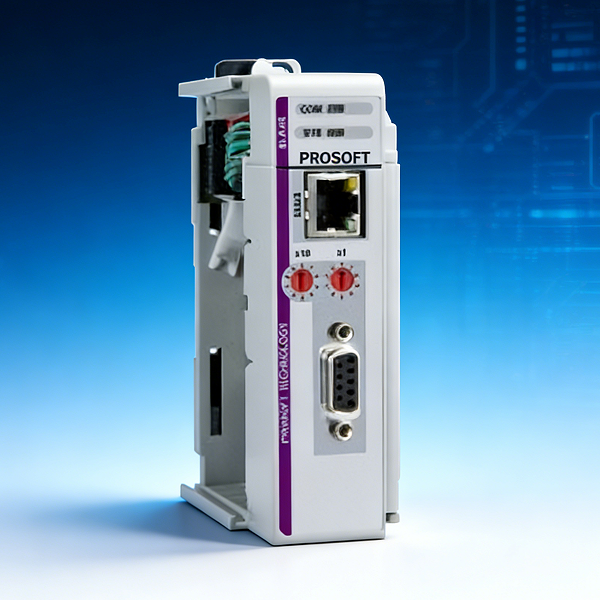

The ILX69 PROFIBUS Slave module is an in-chassis PROFIBUS DPV1 Slave for CompactLogix, supporting cyclic PROFIBUS I/O data and acyclic messaging.
Explicit ladder logic CIP message blocks provide slave status diagnostic data and the ability for acyclic messaging. The ILX69 interface appears to the CompactLogix controller as a standard I/O module allowing it to be configured via Studio/RSLogix™5000. The cyclic PROFIBUS I/O data can be configured in Studio/RSLogix™ 5000, or configuration can be transferred from the Master to the slave module. The Ethernet interface allows for remote diagnostic and troubleshooting. Complete program examples for simple and quick start-up are available.
Check out a successful application with this module: Help CIP System Communicate.
Rockwell Automation Encompass Approved
PI Certified
Remote diagnostics via Ethernet
Supports DPV1 Acyclic Messaging
Field-tested with multiple PROFIBUS Masters from multiple vendors
AOP provided to allow for seamless integration to Studio 5000 and RSLogix 5000
Video setup tutorial provided on www.prosoft-technology.com
Specification | Description |
PROFIBUS DP Cyclic Data | 244 Bytes IN / 244 Bytes OUT |
Acyclic Read/Writes | 240 Bytes |
Acyclic communication | DPV1 Class 1 Read/Write |
Baud rate | 9.6 kBaud, 19.2 kBaud, 45.45 kBaud, 93.75 Auto-detection mode is supported |
Specification | Description |
PROFIBUS Interface | RS-485, max. 12 Mbps, potential free, according |
Diagnostic Interface | 10/100 Ethernet, RJ45 |
Power Supply | +5 V ±5 % / 570 mA |
Max. Distance Rating | 2 slot |
Dimensions | Standard 1769 Single-slot module |
Burst | EN 61000-4-4, 2 kV, 5 kHz |
Surge | EN 61000-4-5, 2 kV common mode, 1 kV |
ESD | EN 61000-4-2, 4 kV contact, 8 kV air, 4 kV indirect |
Radiated/Conducted Immunity | EN 61000-4-3, 10 V/m, 30...1000 MHz, 80% AM, 1 |
Radiated/Conducted Emission | EN 55011 Class A |
Vibration/Shock | IEC 600068-2-6, 10-150 Hz, ± 0,75 mm, ± 1 g, 1 |
Operating Temperature | 0°C to 60°C (32°C to 140°F) |
Relative Humidity | 5 to 95% (non-condensing) |
PROFIBUS conformance | Certified |
