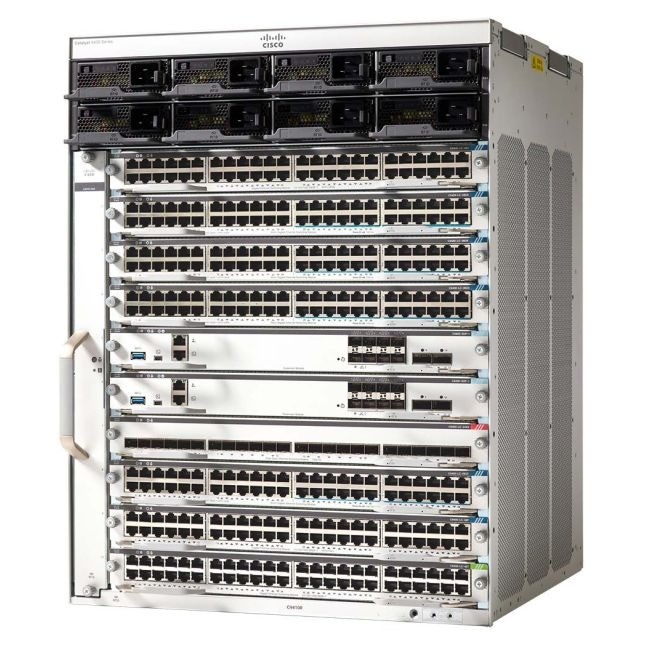

Cisco C9410R-96U-BNDL-A is a premium, pre-configured bundle from the Cisco Catalyst 9400 Series, representing the largest chassis option (10-slot) designed for the highest-density enterprise campus core, aggregation, and large-scale access deployments. This package includes a 10-slot chassis, dual 48-port Gigabit Ethernet UPoE line cards, a robust supervisor engine, and the Cisco DNA Advantage software license, delivering an unparalleled, secure, and highly scalable foundation for IoT, cloud, and next-generation enterprise networks.
Ultra-High-Density Connectivity & Universal PoE
96 x 10/100/1000BASE-T RJ45 ports (2 x C9400-LC-48U line cards)
Universal Power over Ethernet (UPoE): Delivers 60W per port (802.3bt) to power high-performance devices (PTZ cameras, 802.11ax APs, video conferencing units)
PoE Capacity: 2880W power budget per line-card slot
Leading Performance & Scalability
Switching Capacity: 12.8 Tbps (with SUP-1XL)
Forwarding Rate: 1.44 Bpps
Unified Access Data Plane (UADP 2.0) for advanced packet processing and application intelligence
480 Gbps dedicated bandwidth per slot
Carrier-Class Resiliency
Dual redundant supervisor engines (SSO/NSF) for hitless failover and 99.999% uptime
8 power supply bays for fully redundant N+1 or N+N power configurations
Hot-swappable modules (supervisors, line cards, PSUs, fans) for non-disruptive maintenance
StackWise Virtual capable to create a single logical switch from two chassis
Advanced Security & Software (DNA Advantage)
Cisco TrustSec & MACsec 256-bit encryption for end-to-end secure data transmission
Encrypted Traffic Analytics (ETA) to identify threats hidden in encrypted traffic
SD-Access for automated policy enforcement and micro-segmentation
Application Visibility and Control (AVC) for deep application performance monitoring
Open IOS XE with full programmability (RESTCONF, NETCONF, YANG)
Operational Excellence
Centralized management via Cisco DNA Center
Optimized airflow (side-to-side or front-to-back) for efficient cooling
13RU rack-mountable form factor for standard data center deployment
| Component | Specification |
|---|---|
| Part Number | C9410R-96U-BNDL-A |
| Chassis | C9410R (10-slot, 13RU) |
| Supervisor Engine | C9400-SUP-1 |
| Line Cards | 2 x C9400-LC-48U (48-port 1G UPoE) |
| Total Fixed Ports | 96 x 1GBASE-T (UPoE) |
| Switching Capacity | 12.8 Tbps |
| Forwarding Throughput | 1.44 Bpps |
| MAC Address Table | 128K entries |
| Routing Table | 128K IPv4 / 64K IPv6 |
| VLAN Support | 4096 |
| Power Supply Bays | 8 (supports 2100W/3200W AC) |
| Dimensions (H x W x D) | 57.43 x 43.97 x 41.40 cm (22.61 x 17.30 x 16.30 in) |
| Weight | 29.48 kg (65.0 lb) (chassis with fan tray) |
| Software License | Cisco DNA Advantage |
