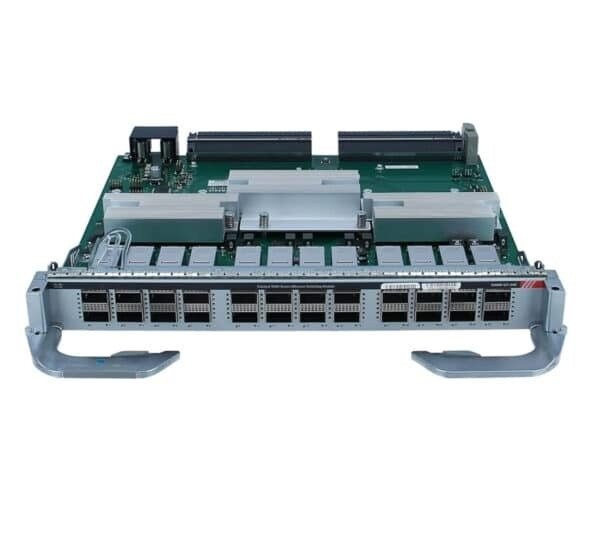

Cisco C9600-LC-24C

The Cisco C9600-LC-24C is a high-density, high-performance line card designed for the Cisco Catalyst 9600 Series switches (C9606R, C9609R, C9610R). It provides versatile 40G/100G connectivity, optimized for enterprise campus core, aggregation layers, and data center uplinks requiring massive bandwidth and flexible deployment.

Key Features & Benefits

Flexible High-Speed Ports: 24 x QSFP28 ports supporting 24 x 40G (QSFP+) or 12 x 100G (QSFP28) configurations.
Breakout Capability: Supports 4x10G (from 40G) and 4x25G (from 100G) breakout, maximizing port utilization and scalability.
Massive Bandwidth: Delivers up to 2.4 Tbps throughput per line card, enabling non-blocking, low-latency performance.
Hot-Swappable: Fully hot-swappable for seamless installation, replacement, and upgrades without system downtime.
Investment Protection: Multi-speed port support (40G/100G) ensures compatibility with existing and future infrastructure.
Advanced Security & Automation: Integrates with Cisco's IOS XE, offering comprehensive security, telemetry, and software-defined automation.
TAA Compliant: Suitable for U.S. Government and federal agency deployments.

Technical Specifications

Parameter	Specification
Part Number	C9600-LC-24C
Ports	24 x QSFP28 (supports 40G/100G)
Port Speed	40 Gbps (QSFP+), 100 Gbps (QSFP28)
Max Throughput	2.4 Tbps per line card
Breakout Support	4x10G (from 40G), 4x25G (from 100G)
Compatibility	Catalyst 9600 Series Chassis (C9606R, C9609R, C9610R)
Form Factor	Hot-swappable plug-in module
Protocols	IEEE 802.3, 802.3ae, 802.3bm
Operating Temp	0°C to 40°C
Warranty	Limited Lifetime Warranty
