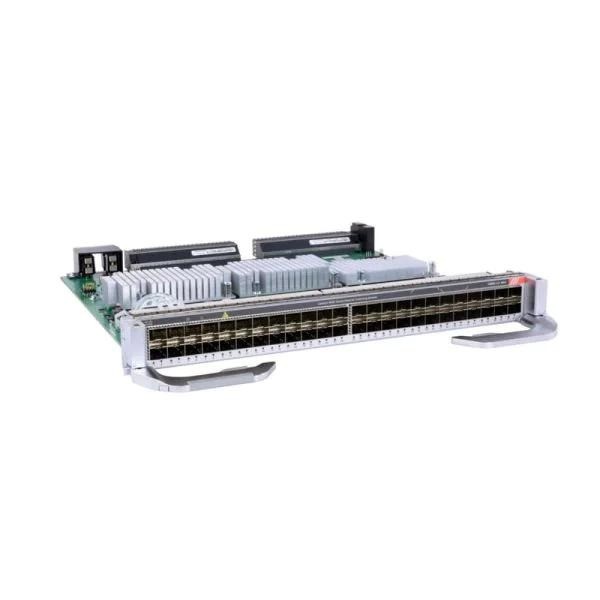

The Cisco C9600-LC-48YL is a high-density, multi-speed line card designed for the Cisco Catalyst 9600 Series switches (C9606R, C9609R, C9610R). It provides 48 ports of 25G/10G/1G Ethernet connectivity via SFP28/SFP+ interfaces, delivering scalable, high-performance connectivity for enterprise campus distribution, core layers, and data center aggregation.
High-Density Multi-Speed Ports: 48 x SFP28 ports supporting 25G/10G/1G speeds, offering seamless migration from 1G/10G to 25G networks.
Non-Blocking Performance: Delivers up to 1.44 Tbps throughput per line card, ensuring wire-speed Layer 2/3 forwarding.
Hot-Swappable Design: Fully hot-swappable for installation, replacement, and upgrades without system downtime.
Investment Protection: Backward compatible with existing SFP+ (10G) and SFP (1G) optics, protecting legacy infrastructure investments.
Advanced Security: Supports MACsec 256-bit AES encryption on all ports for secure data transmission.
Programmable & Automated: Built on Cisco Silicon One and IOS XE, supporting telemetry, API-driven automation, and intent-based networking.
Environmental Compliance: RoHS compliant and energy-efficient (up to 94% efficiency).
| Parameter | Specification |
|---|---|
| Part Number | C9600-LC-48YL |
| Ports | 48 x SFP28 (SFP56) |
| Port Speed | 25Gbps, 10Gbps, 1Gbps |
| Throughput | Up to 1.44 Tbps |
| Packet Buffer | 32 MB |
| Latency | < 5μs (64-byte packets) |
| Compatibility | Catalyst 9606R, 9609R, 9610R |
| Form Factor | Hot-swappable line card |
| Dimensions (H x W x D) | 1.73 x 16.89 x 15.28 in (4.39 x 42.9 x 38.81 cm) |
| Weight | 6.60 kg (14.55 lb) |
| Operating Temp | 0°C to 40°C |
| MTBF | 691,148 hours |
| Minimum IOS | Cisco IOS XE 16.11.1 |
| Warranty | Limited Lifetime Warranty |
