Cisco FPR3105-ASA-K9

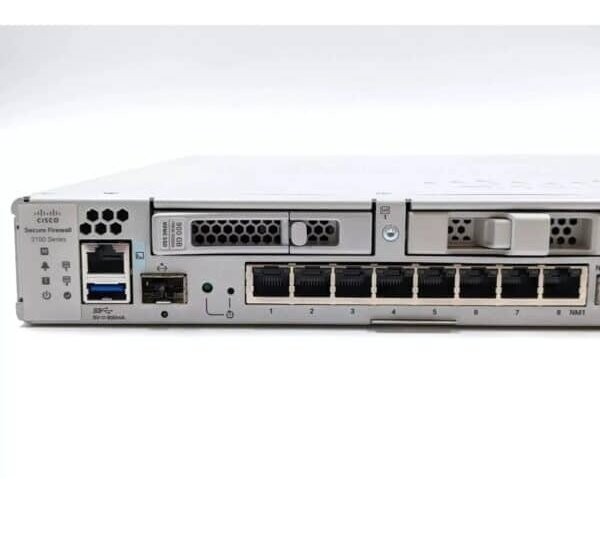

Cisco FPR3105-ASA-K9 (Cisco Secure Firewall 3105 ASA) is a 1U rack-mountable enterprise firewall appliance from the Firepower 3100 series. It runs Cisco ASA operating system (not FTD) and is purpose-built for traditional stateful firewall, VPN, and multi-context network segmentation deployments in large enterprises, data centers, and Internet edge environments. It offers ASA compatibility with the high-performance hardware of the 3100 platform.

Key Features & Benefits

ASA-Based Enterprise Security

Classic Cisco ASA stateful firewall (routed/transparent/hybrid modes)
Advanced VPN: IPsec/IKEv2, AnyConnect SSL VPN, clientless VPN
Virtual contexts (multi-tenant firewalls) for secure network segmentation
High availability: Active/Active & Active/Standby failover, clustering
Static & dynamic routing (BGP, OSPF, EIGRP, RIP)
Security certifications: FIPS 140-2, Common Criteria

Performance (ASA Software)

Stateful firewall throughput: 3 Gbps
IPsec VPN throughput: 1.75 Gbps
IPS throughput (add-on): 1.5 Gbps
Concurrent sessions: 2,000,000
Maximum VPN peers: 3,000

Hardware & Connectivity

8 × 1G RJ45 (copper) ports
8 × 1/10G SFP+ (fiber) ports
1 × 1/10G SFP+ dedicated management port
Dual 400W AC power supplies (standard)
Internal 900 GB SSD storage
1U rack-mountable form factor

Management

Local: CLI, ASDM (Adaptive Security Device Manager)
Centralized: Cisco Security Manager (CSM)
Cloud: Cisco Defense Orchestrator (CDO)

Technical Specifications

Item	Specification
Part Number	FPR3105-ASA-K9
Form Factor	1U Rack-mountable
Firewall Throughput (ASA)	3 Gbps
VPN Throughput (IPsec)	1.75 Gbps
IPS Throughput	1.5 Gbps
Concurrent Sessions	2,000,000
VPN Peers	3,000
Interfaces	8×1G RJ45, 8×1/10G SFP+, 1×1/10G Mgmt SFP+
Storage	900 GB SSD
Power	Dual 400W AC (100–240V)
Software	Cisco ASA 9.19+
Dimensions	4.4 × 440 × 500 mm (1U)
Weight	9.53 kg (21 lbs)
