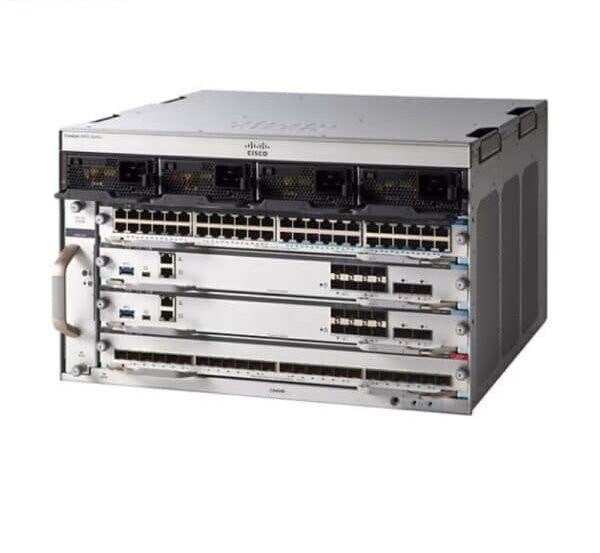

Cisco C9404R-96U-BNDL-A

Cisco C9404R-96U-BNDL-A is a pre-configured bundle of the Cisco Catalyst 9400 Series enterprise-class modular switch. It is designed for high-density access, aggregation, or small core deployments in medium-to-large enterprises, campus networks, and IoT environments. This bundle includes the chassis, supervisor, line cards, and Cisco DNA Advantage software license.

EMAIL

Key Features & Benefits

• High-Density Connectivity & PoE

  • 96 x 10/100/1000BASE-T RJ45 ports (2x C9400-LC-48U line cards)

  • Universal Power over Ethernet (UPoE): Supports 60W per port (802.3bt) for powering high-demand devices (PTZ cameras, 802.11ax APs, video endpoints)

  • Max PoE Budget: Up to 2880W per slot

• Unmatched Performance & Scalability

  • Switching Capacity: 1.44 Tbps

  • Forwarding Rate: 1.08 Bpps

  • Unified Access Data Plane (UADP 2.0) for intelligent packet processing

  • 480 Gbps per slot bandwidth capacity

• Enterprise Resiliency & Availability

  • Redundant Supervisor Engines (SSO/NSF) for hitless failover

  • 4 Power Supply Bays for N+1 or N+N redundancy

  • Hot-swappable modules (supervisors, line cards, power supplies, fans)

  • StackWise Virtual capable for simplified core clustering

• Advanced Security & Software (DNA Advantage)

  • Cisco TrustSec & MACsec for end-to-end data plane security

  • Encrypted Traffic Analytics (ETA) to detect threats in encrypted flows

  • SD-Access architecture for policy-based automation and segmentation

  • Application Visibility and Control (AVC) for deep application insights

  • Open IOS XE with model-driven programmability (RESTCONF, NETCONF)

• Operational Simplicity

  • Centralized management via Cisco DNA Center

  • Front-to-back/side-to-side airflow for optimized data center cooling

  • 6RU rack-mountable form factor


Technical Specifications

ComponentSpecification
Part NumberC9404R-96U-BNDL-A
ChassisC9404R (4-slot, 6RU)
Supervisor EngineC9400-SUP-1
Line Cards2x C9400-LC-48U (48-port 1G UPoE)
Total Ports96 x 1GBASE-T (PoE/UPoE)
Switching Capacity1.44 Tbps
Forwarding Throughput1.08 Bpps
MAC Address Table128K entries
Routing Table128K IPv4 / 64K IPv6
VLANs4096
Power Supplies4 bays (supports 2100W/3200W AC)
Dimensions (H x W x D)26.5 x 43.9 x 41.4 cm (10.47 x 17.30 x 16.30 in)
