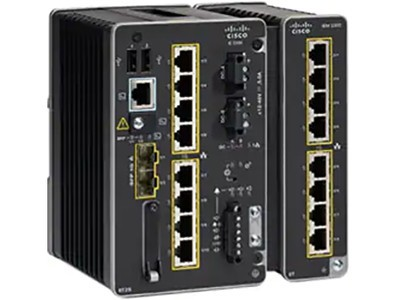

The Cisco IE-3300-8T2S-E is a rugged, modular managed Layer 2/Layer 3 industrial Ethernet switch from the Cisco Catalyst IE3300 Rugged Series. Powered by Cisco IOS XE with a Network Essentials license, it features 8 Gigabit Ethernet (10/100/1000) copper ports and 2 Gigabit Ethernet SFP fiber uplink ports. Built for harsh industrial environments, it provides enterprise-grade networking and modular expansion for IIoT and Industry 4.0 applications.
Hardened Industrial Design
Fanless, convection-cooled, IP30-rated metal casing
Operating temperature: -40°C to +75°C
High resistance to vibration (5g), shock (50g), and EMI
DIN-rail/wall-mountable, compact form factor
1 modular expansion slot (GE/2.5GE)
Dual redundant 9.6–60V DC power inputs
Alarm I/O: 2 digital inputs, 1 relay output
Conformal coating option for corrosive settings
High-Speed Connectivity
8 × 10/100/1000Base-T RJ45 ports (non-PoE)
2 × 1000Base-X SFP Gigabit Ethernet uplink ports
Switching capacity: 56 Gbps; Forwarding rate: 41.6 Mpps
Network Resiliency
Sub-50ms recovery: REP, MRP, STP/RSTP/MSTP
IEEE 1588v2 Precision Time Protocol (PTP)
EtherChannel (LACP) link aggregation
Hot-swappable modules/power
Enterprise Security (IOS XE)
Secure Boot, image signing, Trust Anchor module (TAm)
802.1X, MACsec 256, SSHv2, SNMPv3, ACLs
IEC 62443-4-1/-2 industrial security compliance
Management & Automation
WebUI, CLI, SNMP, Cisco Catalyst Center, Industrial Network Director
USB 2.0 port + SD card slot (up to 32GB)
Dual console: 1 × RJ45 RS-232, 1 × Mini-USB Type B
Open APIs: RESTCONF, NETCONF, YANG
Flexible NetFlow (FNF) traffic analytics
Industrial Protocols
Native support: EtherNet/IP (CIP), PROFINET, Modbus
QoS with 8 egress queues
IPv4/IPv6 static routing and RIP
| Parameter | Details |
|---|---|
| Part Number | IE-3300-8T2S-E |
| Series | Cisco Catalyst IE3300 Rugged |
| Software | Cisco IOS XE, Network Essentials |
| Switch Type | Managed Layer 2/Layer 3, Modular |
| Copper Ports | 8 × 10/100/1000Base-T (non-PoE) |
| Uplink Ports | 2 × 1000Base-X SFP (GE) |
| Expansion Slot | 1 × modular slot (GE/2.5GE) |
| PoE Budget | N/A |
| Switching Capacity | 56 Gbps full-duplex |
| Forwarding Rate | 41.6 Mpps |
| MAC Table | 16,000 entries |
| Packet Buffer | 2.5 MB |
| Memory | 4 GB DRAM, 1.5 GB Flash |
| Removable Storage | SD card (up to 32GB), USB 2.0 |
| Power Input | Dual redundant 9.6–60V DC |
| Max Input Current | 3.8A @ 12V DC |
| Power Consumption | 23W (typical @ 12V) |
| Dimensions (H×W×D) | 152.4 × 91.4 × 134.6 mm |
| Weight | 1.7 kg |
| Operating Temp | -40°C to +75°C |
| Operating Humidity | 0–100% condensing |
| Certifications | UL, CSA, IEC, EN, CE, FCC, ATEX, IEC 62443, IEC 61850-3 |
| MTBF |
