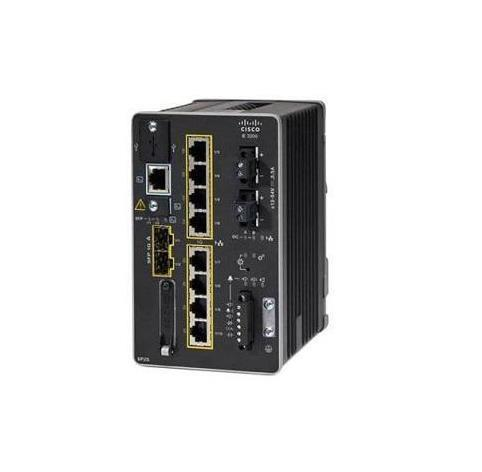

The Cisco IE-3400-8T2S-E is a high-performance, modular, rugged managed Layer 2/Layer 3 industrial Ethernet switch from the Cisco Catalyst IE3400 Rugged Series. Powered by Cisco IOS XE with a Network Essentials license, it features 8 Gigabit Ethernet (10/100/1000) non-PoE copper ports and 2 dedicated Gigabit Ethernet SFP fiber uplink ports. As a modular platform, it supports expansion modules for enhanced port density and functionality, making it ideal for demanding industrial IoT and critical infrastructure applications.
Modular & Rugged Industrial Design
Fanless, convection-cooled, IP30-rated die-cast metal chassis
Extended operating temperature: -40°C to +75°C
High resistance to vibration (5g), shock (50g), surge, and electrical noise
DIN-rail or wall-mountable compact form factor
Modular expansion slot supports a range of GE/2.5GE copper/fiber modules
Alarm I/O: 2 dry-contact inputs, 1 relay output
Dual redundant 9.6–60V DC power inputs
Conformal coating option for corrosive environments
High-Density Port Configuration
8 × 10/100/1000Base-T Gigabit Ethernet RJ45 ports (non-PoE)
2 × 1000Base-X Gigabit Ethernet SFP uplink ports
Modular design scales up to 26 total ports with expansion modules
Advanced Network Resiliency
Supports REP, MRP, STP/RSTP/MSTP for sub-50ms failover
Time-Sensitive Networking (TSN) support for deterministic industrial traffic
EtherChannel (LACP) for link aggregation and redundancy
Hot-swappable power and module support
Enterprise-Grade Security (IOS XE)
Secure Boot, image signing, Trust Anchor module (TAm)
802.1X, MACsec, SSHv2, SNMPv3, ACLs, DHCP Snooping
IEC 62443-4-1/-2 industrial security compliance
Zero-Trust Network Access (ZTNA) support
Simplified Management & Monitoring
WebUI, CLI, Telnet, SNMP, Cisco DNA Center, Industrial Network Director
USB 2.0 port + SD card slot (up to 32GB) for config/image backup
Dual console: 1 × RJ45 RS-232, 1 × Mini-USB Type B
Open APIs (RESTCONF, NETCONF, YANG) for automation
Full Flexible NetFlow (FNF) for traffic analytics
Industrial Performance & Protocols
IEEE 1588v2 Precision Time Protocol (PTP) (hardware-accelerated)
Native support for EtherNet/IP (CIP), PROFINET, Modbus
QoS with 8 egress queues for critical traffic prioritization
IPv4/IPv6 static routing and RIP support
| Parameter | Details |
|---|---|
| Part Number | IE-3400-8T2S-E |
| Series | Cisco Catalyst IE3400 Rugged |
| Software | Cisco IOS XE, Network Essentials |
| Switch Type | Managed Layer 2/Layer 3, Modular |
| Copper Ports | 8 × 10/100/1000Base-T (GE, non-PoE) |
| Uplink Ports | 2 × 1000Base-X (GE SFP) |
| Expansion Slot | 1 × modular slot (supports GE/2.5GE modules) |
| PoE Budget | N/A |
| Switching Capacity | 20 Gbps full-duplex |
| Forwarding Rate | 14.88 Mpps |
| MAC Table | 8,000 entries |
| Packet Buffer | 2.5 MB |
| Memory | 4 GB DRAM, 1.5 GB Flash |
| Removable Storage | SD card (up to 32GB), USB 2.0 port |
| Power Input | Dual redundant 9.6–60V DC |
| Max Input Current | 6.3A @ 12V DC |
| Power Consumption | 36W (typical @ 12V) |
| Dimensions (H×W×D) | 152.4 × 91.4 × 15.6 mm |
| Weight | 1.72 kg |
| Operating Temp | -40°C to +75°C |
| Operating Humidity | 0–100% condensing |
| Certifications |
