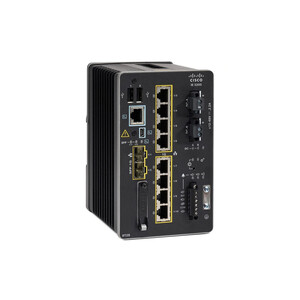

Cisco IE-3200-8T2S-E

Key Features & Benefits

• Rugged Industrial Design

• Fanless, convection-cooled, IP30-rated die-cast metal chassis

• Extended operating temperature: -40°C to +70°C

• High resistance to vibration (5g), shock (50g), surge, and electrical noise

• DIN-rail mountable, compact form factor

• Alarm I/O: 2 dry-contact inputs, 1 relay output

• Dual redundant power inputs for uninterrupted operation

• Conformal coating option available for corrosive settings

• High-Density Port Configuration

• 8 × 10/100/1000Base-T Gigabit Ethernet RJ45 ports (non-PoE)

• 2 × 1000Base-X Gigabit Ethernet SFP uplink ports

• Optimized for high-speed data connectivity in industrial networks

• Advanced Network Resiliency

• Supports REP, MRP, STP/RSTP/MSTP for sub-50ms failover

• Dual redundant 9.6–60V DC power inputs

• EtherChannel (LACP) for link aggregation and redundancy

• Fast network recovery for critical industrial operations

• Enterprise-Grade Security (IOS XE)

• Secure Boot, image signing, Trust Anchor module (TAm)

• 802.1X, MACsec, SSHv2, SNMPv3, ACLs, DHCP Snooping

• IEC 62443-4-1/-2 industrial security compliance

• Zero-Trust Network Access (ZTNA) support

• Simplified Management & Monitoring

• WebUI, CLI, Telnet, SNMP, Cisco Catalyst Center

• SD card slot (up to 32GB) for config/image backup

• Dual console: 1 × RJ45 RS-232, 1 × Mini-USB Type B

• Open APIs (RESTCONF, NETCONF, YANG) for automation

• Industrial protocols: EtherNet/IP (CIP), PROFINET, Modbus

• Industrial Performance

• IEEE 1588v2 Precision Time Protocol (PTP) (hardware-accelerated)

• QoS with 8 egress queues for traffic prioritization

• MAC address table: 8,000 entries

• VLAN support: 256 active VLANs

• Jumbo Frames up to 8996 bytes
