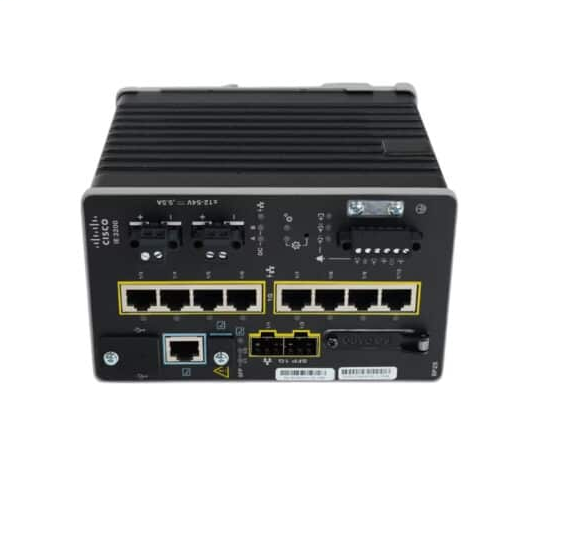

The Cisco IE-3200-8P2S-E is a compact, rugged, managed Layer 2/Layer 3 Lite industrial Ethernet switch from the Cisco Catalyst IE3200 Rugged Series. Powered by Cisco IOS XE with a Network Essentials license, it features 8 Gigabit Ethernet (10/100/1000) PoE+ copper ports and 2 dedicated Gigabit Ethernet SFP fiber uplink ports. With a 240W PoE budget, it is purpose-built to deliver high-performance, power-over-Ethernet connectivity to industrial IoT devices, IP cameras, and wireless access points in extreme environments.
Ultra-Rugged Industrial Design
Fanless, convection-cooled, die-cast metal chassis
Extended operating temperature: -40°C to +75°C
High resistance to vibration (5g), shock (50g), surge, and electrical noise
DIN-rail mountable, compact form factor
Alarm I/O: 2 dry-contact inputs, 1 relay output
Conformal coating option available
High-Density PoE+ Connectivity
8 x 10/100/1000Base-T RJ45 ports supporting PoE/PoE+
2 x 1000Base-X Gigabit Ethernet SFP uplink ports
Total PoE power budget: 240W (supports 8 ports at 30W each)
Simplifies deployment by delivering data and power over a single cable
Advanced Network Resiliency
Supports REP, MRP, STP/RSTP/MSTP for fast network recovery
Dual redundant 9.6–60V DC power inputs
Hot-swappable power support
EtherChannel (LACP) for link aggregation
Enterprise-Grade Security (IOS XE)
Secure Boot, image signing, Trust Anchor module (TAm)
802.1X, MACsec, SSHv2, SNMPv3, ACLs, DHCP Snooping
IEC 62443-4-1/-2 industrial security compliance
Zero-Trust Network Access (ZTNA) support
Simplified Management & Monitoring
WebUI, CLI, Telnet, SNMP, Cisco Catalyst Center
SD card slot (up to 32GB) for config/image backup
Mini-USB/RJ45 console ports
Open APIs (RESTCONF, NETCONF, YANG) for automation
Industrial Performance & Protocols
IEEE 1588v2 Precision Time Protocol (PTP) (hardware-accelerated)
Native support for EtherNet/IP (CIP), PROFINET, Modbus
QoS with 8 egress queues for critical traffic prioritization
| Parameter | Details |
|---|---|
| Part Number | IE-3200-8P2S-E |
| Series | Cisco Catalyst IE3200 Rugged |
| Software | Cisco IOS XE, Network Essentials |
| Switch Type | Managed Layer 2/Layer 3 Lite |
| Copper Ports | 8 × 10/100/1000Base-T (PoE/PoE+) |
| Uplink Ports | 2 × 1000Base-X (GE SFP) |
| PoE Budget | 240W |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.88 Mpps |
| MAC Table | 8,000 entries |
| Packet Buffer | 2.5 MB |
| Memory | 2 GB DRAM, 1.5 GB Flash |
| Removable Storage | SD card slot (up to 32GB) |
| Power Input | Dual redundant 9.6–60V DC |
| Power Consumption | 32W (typical) |
| Dimensions (H×W×D) | 15.2 × 9.1 × 13.5 cm |
| Weight | 1.7 kg |
| Operating Temp | -40°C to +75°C |
| Certifications | UL, CSA, IEC, EN, CE, FCC, ATEX, IEC 62443 |
| MTBF | 613,125 hours |
| Warranty | 5-year Cisco limited hardware warranty |
