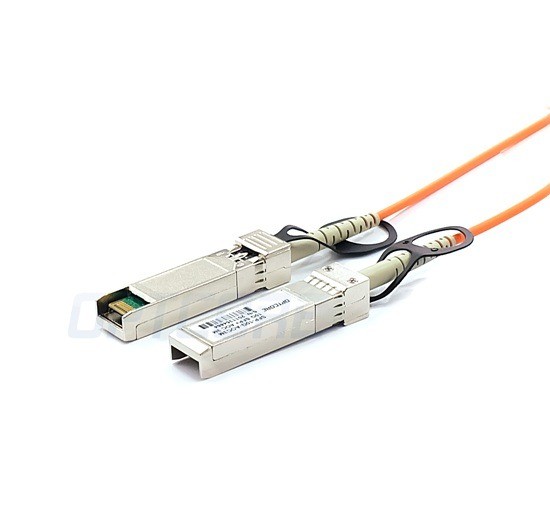

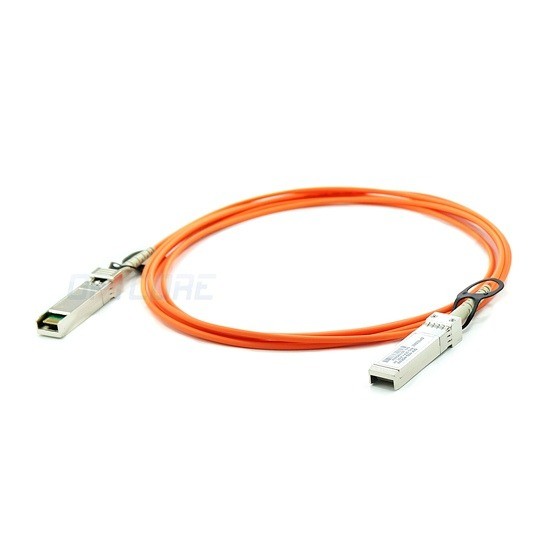

SFP-10G-AOC5M is a Cisco original 5-meter 10G SFP+ Active Optical Cable (AOC). It integrates SFP+ transceivers on both ends, engineered for high-speed, short-reach 10Gbps connections within data center racks, between adjacent cabinets, and in enterprise core/aggregation networks. It delivers superior signal integrity, low latency, and immunity to electromagnetic interference (EMI), offering a high-performance alternative to copper DAC cables.
10Gbps Wire-Speed PerformanceSupports full-duplex 10.3125 Gbps data rate, compliant with 10GBASE Ethernet, 8G/4G Fibre Channel standards.
Active Optical Cable (AOC) TechnologyBuilt-in signal drivers ensure reliable transmission over 5m. Lighter weight, smaller bend radius, and complete EMI immunity compared to passive copper cables.
Hot-Swappable (OIR)Supports Online Insertion and Removal without powering down the host device, ensuring zero network downtime during maintenance.
Digital Diagnostic Monitoring (DDM/DOM)Enables real-time monitoring of optical power, temperature, voltage, and bias current for proactive diagnostics and troubleshooting.
Industry-Standard ComplianceFully compliant with SFP+ MSA, IEEE 802.3ae, and SFF-8431 standards. Guaranteed compatibility with Cisco Catalyst, Nexus, and ISR series switches and routers.
Environmental & PhysicalRoHS compliant, LSZH cable jacket, and operates in commercial temperature range (0°C to 70°C).
| Parameter | Specification |
|---|---|
| Part Number | SFP-10G-AOC5M |
| Form Factor | SFP+ to SFP+ Active Optical Cable (AOC) |
| Length | 5 Meters (16.4 ft) |
| Data Rate | 10.3125 Gbps |
| Wavelength | 850 nm (VCSEL) |
| Fiber Type | OM3 Multimode Fiber (MMF) |
| Connector | SFP+ (SFF-8431) |
| Operating Temperature | 0°C to 70°C (Commercial) |
| DDM/DOM Support | Yes |
| Hot Swap | Yes |
| Cable Jacket | LSZH (Low Smoke Zero Halogen) |
| Protocols Supported | 10G Ethernet, 4G/8G Fibre Channel |
| Weight | ~0.14 kg |
| Bend Radius | Minimum 25 mm |
| Compliance | SFP+ MSA, IEEE 802.3ae, SFF-8472, RoHS |
| Main Applications | Data center intra-rack/inter-rack links, Server/SAN to switch connections |
