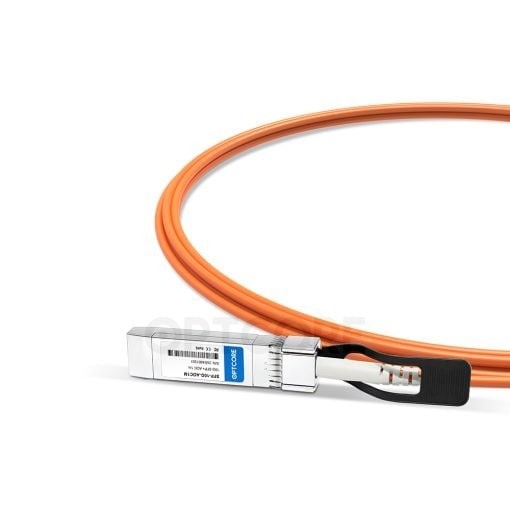

SFP-10G-AOC7M is a 7-meter 10G SFP+ Active Optical Cable (AOC). It integrates built-in SFP+ optical transceivers at both ends, designed for short-to-medium reach 10G interconnections inside data center racks, between adjacent cabinets, and enterprise core/aggregation layer networking. Compared with copper DAC cables, it features lighter weight, smaller bending radius, full EMI immunity and stable low-latency 10G wire-speed transmission.
10G Wire-Speed TransmissionSupports full-duplex 10.3125 Gbps, compliant with 10GBASE Ethernet, 8G/4G Fibre Channel.
Active Optical Cable DesignNo electromagnetic interference, flexible routing for high-density cabinet deployment, much lighter and easier to manage than twinax copper.
Hot-Swappable OIROnline insertion and removal supported; no device reboot required for installation or replacement.
DDM/DOM Digital DiagnosticsReal-time monitoring of temperature, supply voltage, transmit bias current and optical power for easy operation and fault diagnosis.
Standard CompatibilityCompliant with SFP+ MSA, IEEE 802.3ae; fully compatible with Cisco Catalyst, Nexus, C8300, ISR 4000 series.
LSZH & RoHS CompliantLow smoke zero halogen jacket, environmentally friendly, suitable for long-term data center and enterprise deployment.
| Parameter | Specification |
|---|---|
| Part Number | SFP-10G-AOC7M |
| Cable Type | 10G SFP+ Active Optical Cable (AOC) |
| Length | 7 Meters |
| Data Rate | 10.3125 Gbps |
| Wavelength | 850 nm VCSEL |
| Fiber Mode | OM3 Multimode Fiber |
| Interface | SFP+ |
| Operating Temperature | 0°C ~ 70°C |
| DDM/DOM | Supported |
| Hot Swap | Yes |
| Jacket | LSZH |
| Application | 10G Ethernet, 4G/8G Fibre Channel |
