CS-CODEC-PRO-K9 (Cisco Webex Codec Pro)

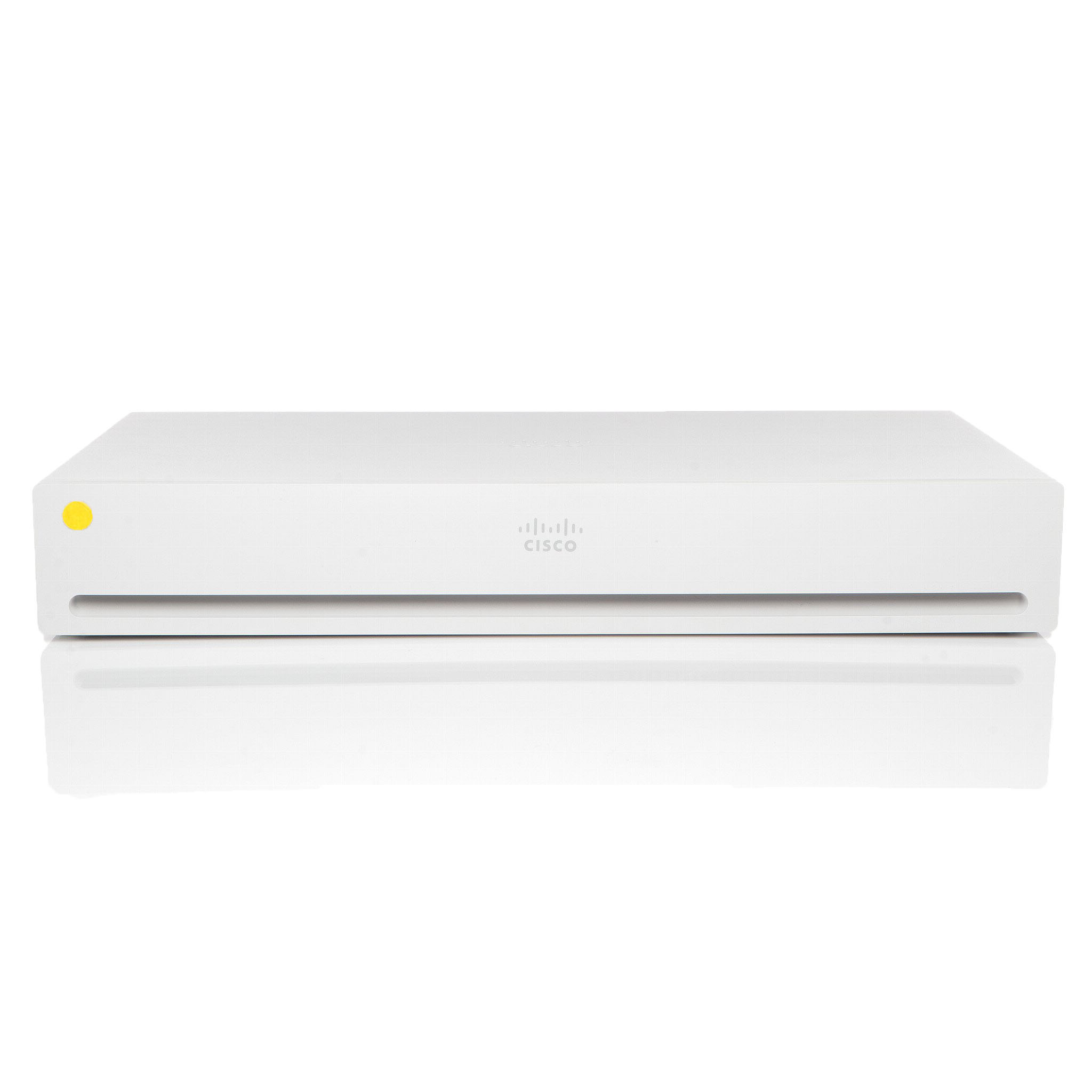

CS-CODEC-PRO-K9 is the high-end standalone video conferencing codec (processing core) of Cisco Webex Room Kit Pro, designed for large meeting rooms, boardrooms, auditoriums and custom complex spaces. It is a rack-mountable 1U device that provides powerful processing, ultra-high-definition video, and extensive connectivity for professional, scalable collaboration.

Core Features

Ultra-HD Video Performance

Supports end-to-end 4Kp60 (2160p60) video calls.
3 HDMI outputs (all supporting up to 4Kp60) for triple-screen setups.
8 HDMI inputs + 3G-SDI inputs for connecting numerous cameras, laptops, and media sources.

Extreme Connectivity & Scalability

Controls up to 8 professional cameras (e.g., Precision 60, SpeakerTrack 60).
Dual Gigabit Ethernet, Wi-Fi 5 (802.11ac), Bluetooth 4.0.
6 USB ports, 4 microphone inputs, and balanced audio I/O.

Enterprise Intelligence & Audio

AI-powered Speaker Tracking, Auto-framing, and Presenter Tracking.
High-performance echo cancellation and AI noise reduction.
Supports AES67 digital audio networking.

Deployment & Security

1U rack-mountable design for AV racks.
Cloud-managed via Webex Control Hub or on-premise via CUCM.
AES-256 encryption, Secure Boot, and 802.1X.

Key Specifications

Item	Details
Part Number	CS-CODEC-PRO-K9
Form Factor	1U Rack-mountable
Video Call	Up to 4Kp60 (2160p60)

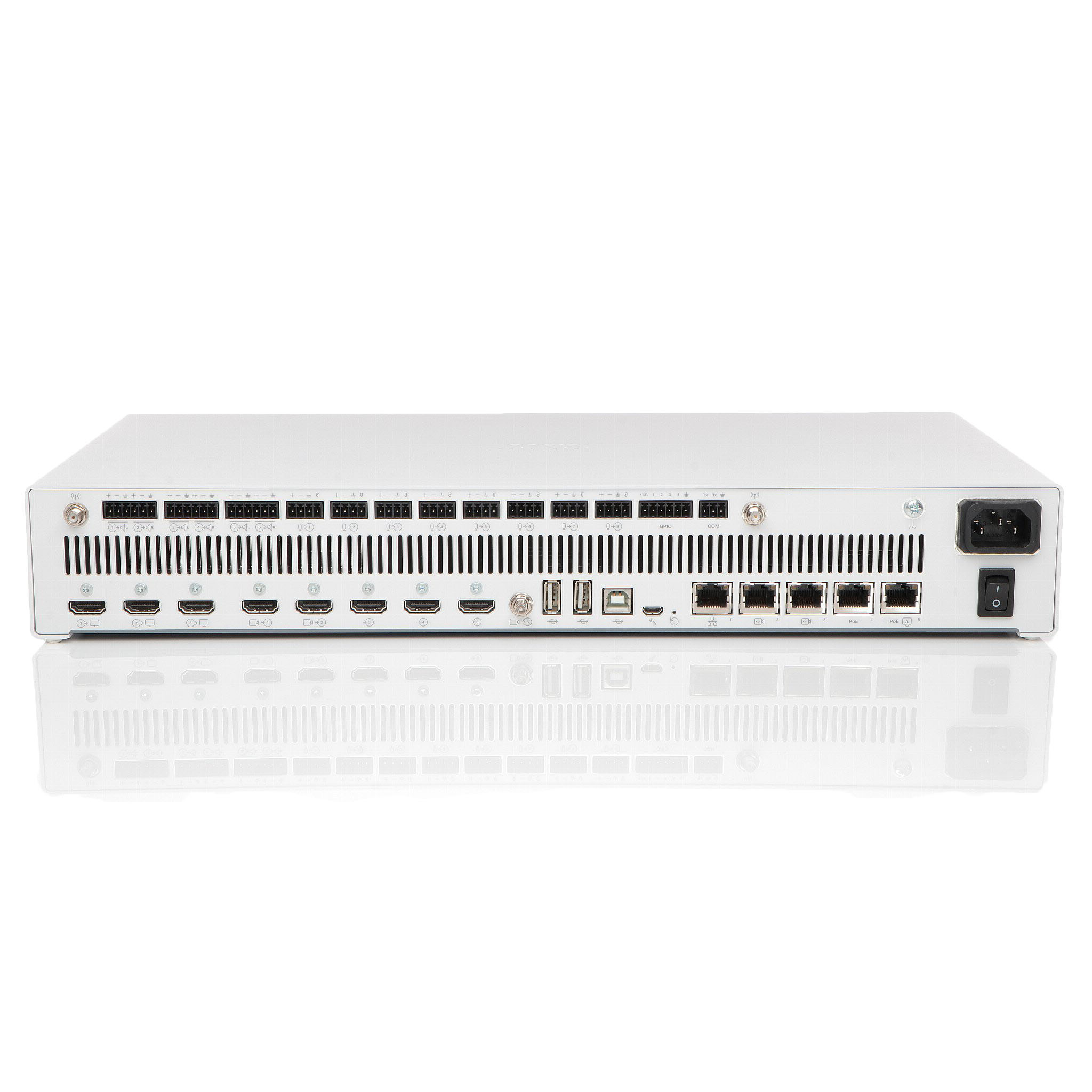

Video I/O	8× HDMI In, 3× HDMI Out (4Kp60), 3G-SDI In
Audio	4× Mic/Line In, Balanced Line Out, AES67
Network	2× Gigabit Ethernet, Wi-Fi 5, Bluetooth 4.0
USB	6× USB 2.0
Power	100–240V AC, Typical 20W, Max 70W
Dimensions	445 × 51 × 258 mm (W×H×D)
Weight	3.3 kg
