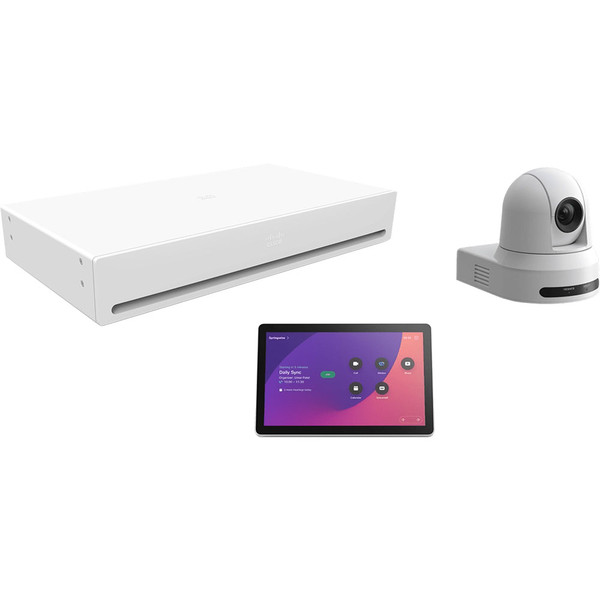

CS-KITPRO-PTZ4K-K9 (Cisco Webex Room Kit Pro with PTZ 4K Camera)

CS-KITPRO-PTZ4K-K9 is Cisco’s flagship, fully integrated video collaboration system, engineered for large boardrooms, auditoriums, lecture theaters, and custom AV environments. This premium bundle combines the high-performance Codec Pro (CS-CODEC-PRO-K9) with a professional PTZ 4K Camera and the intuitive Room Navigator (Touch 10) controller, delivering an unparalleled, intelligent, and scalable 4K video collaboration experience.

Key Features & Benefits

Ultimate 4K Video Performance

End-to-end 4Kp60 (2160p60) ultra-high-definition video calls.
PTZ 4K Camera: 4K UHD (3840 × 2160) at 30fps, with 20x optical zoom + 12x digital zoom (240x total) for extreme detail capture.
Wide Coverage: Pan ±170°, Tilt -20° to +90°, 70° horizontal field of view.

Advanced Connectivity & Scalability

Codec Pro: 1U rack-mountable design.
Rich I/O: 8x HDMI In, 3x HDMI Out (4Kp60), 3G-SDI In.
Supports triple-screen setups and control for up to 8 cameras.
Dual Gigabit Ethernet, Wi-Fi 5, Bluetooth 4.0.

AI-powered Intelligence

Speaker Tracking & Auto-framing: The camera automatically focuses on the active speaker.
Presenter Tracking: Follows presenters across a stage or large room.
Intelligent Audio: AI noise reduction, echo cancellation, and high-fidelity 20kHz audio.

Enterprise-grade Deployment & Security

Managed via Webex Control Hub (cloud) or CUCM (on-premise).
AES-256 encryption, Secure Boot, 802.1X authentication.
PoE+ support for simplified camera installation.

Technical Specifications

Component	Specification
Part Number	CS-KITPRO-PTZ4K-K9
Codec	Codec Pro (CS-CODEC-PRO-K9), 1U Rack-mount
Camera	PTZ 4K Camera, 4K@30fps, 20x Optical Zoom
Video Resolution	Calls up to 4Kp60 (2160p60)
Video I/O	8× HDMI In, 3× HDMI Out (4Kp60), 3G-SDI In
Audio	4× Mic/Line Inputs, Balanced Line Out, AES67
Network	2× Gigabit Ethernet, Wi-Fi 5 (802.11ac), Bluetooth 4.0
Controller	Room Navigator (Touch 10)
Power	100–240V AC, Typical 20W, Max 70W
Dimensions (Codec)	445 × 51 × 258 mm (W×H×D)
Weight (Codec)	3.3 kg
Ideal Rooms	Large boardrooms, auditoriums, custom AV integrations
