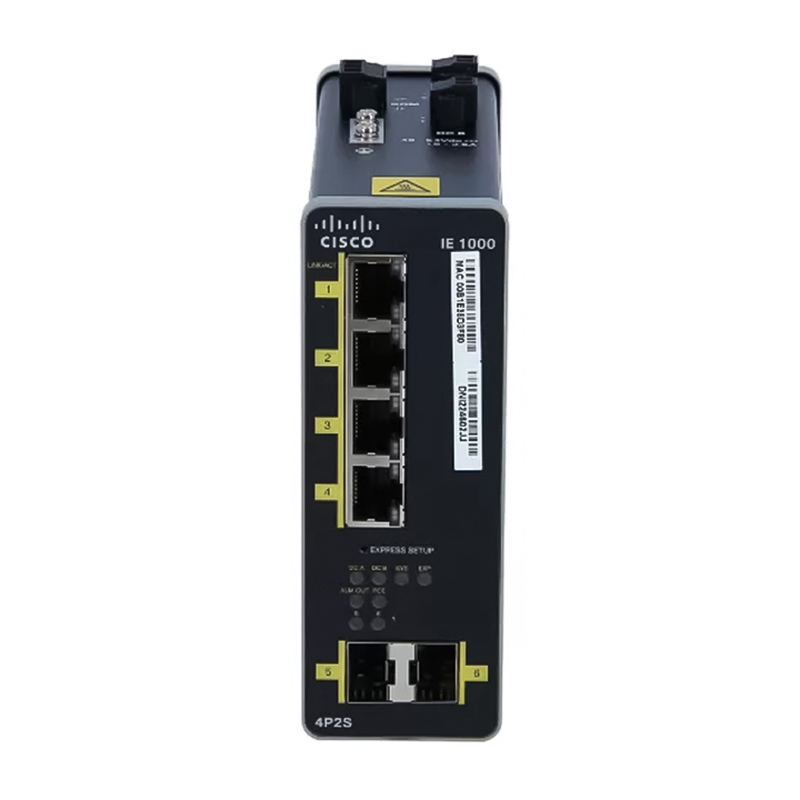

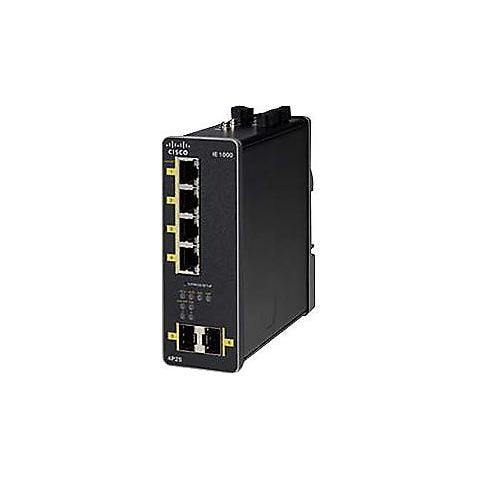

IE-1000-4P2S-LM

The Cisco IE-1000-4P2S-LM is a compact, rugged, lightly managed industrial Ethernet switch from the Cisco IE 1000 Series. It is purpose-built for harsh industrial environments, delivering reliable, secure, and easy-to-manage Layer 2 network connectivity with Power over Ethernet (PoE+) capabilities. Designed for small spaces and extreme temperatures, it is ideal for factory automation, smart cities, transportation, and other industrial IoT applications.

Key Features & Benefits

Industrial Rugged Design

Operates in extreme temperatures: -40°C to +70°C (vented case)
Withstands vibration, shock, and humidity (5%–95% non-condensing)
DIN-rail mountable for industrial cabinet installation
Compact form factor (127 × 45.7 × 134 mm)

Rich Port Configuration

4 x 10/100/1000Base-T Gigabit Ethernet ports with 802.3af/at PoE+
Total PoE power budget: 120W
2 x 1000Base-X SFP ports for fiber uplinks

Lightweight Managed & Secure

Web-based GUI for simple configuration
Supports VLANs, STP/RSTP/MSTP, IGMP snooping, QoS
Port security, DHCP snooping, BPDU Guard
SNMP v2/v3, syslog, alarm I/O for monitoring

Reliable & Certified

High MTBF: 374,052 hours
Safety certifications: UL, CSA, EN, IEC, CE
5-year Cisco hardware warranty

Technical Specifications

Parameter	Details
Part Number	IE-1000-4P2S-LM
Series	Cisco Industrial Ethernet 1000 Series
Switch Type	Lightly Managed Layer 2
Ethernet Ports	4 x 10/100/1000Base-T (PoE+)
Uplink Ports	2 x 1G SFP (1000Base-X)
PoE Standard	IEEE 802.3af/at (PoE+)
Total PoE Budget	120W
Switching Capacity	5.6 Gbps
Forwarding Rate	2.8 Mpps
Memory	128MB DRAM, 160MB flash
Power Input	12–48V DC (dual redundant)
Dimensions	127 × 45.7 × 134 mm
Weight	890g
Operating Temp	-40°C to +70°C (vented)
Certifications	UL/CSA/IEC/EN 60950-1, 61010-2-201, CE
Warranty	5-year limited hardware
