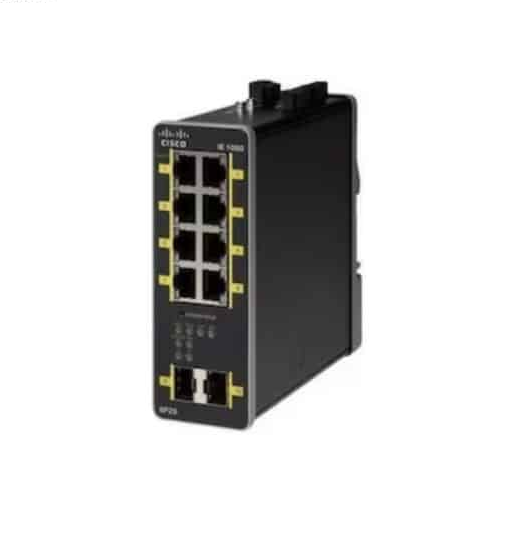

The IE-1000-8P2S-LM is a compact, rugged, lightly managed Layer 2 industrial Ethernet switch from Cisco’s IE 1000 Series. Built for harsh industrial environments, it combines 8 PoE+ Fast Ethernet ports, 2 Gigabit SFP uplinks, and industrial-grade durability, offering simple web-based management for factory automation, smart infrastructure, transportation, and IIoT applications.
Industrial Rugged Build
IP30 metal enclosure, dust-resistant for harsh factory floors
Extreme operating temperature: -40°C to +70°C
DIN-rail mountable, compact form factor
Withstands high vibration/shock, industrial humidity (5–95% non-condensing)
Rich Port Configuration
8 x 10/100Base-TX Fast Ethernet ports with 802.3af/at PoE+
Total PoE power budget: 180W (up to 30W per port)
2 x 1000Base-X Gigabit SFP ports for fiber uplinks
Lightweight Managed & Secure
Intuitive web GUI for easy configuration
Supports VLANs, STP/RSTP/MSTP, IGMP snooping, QoS
Port security, DHCP snooping, storm control
SNMP v2/v3, syslog, alarm I/O for monitoring
Reliable & Certified
Dual redundant DC power input (12–48V DC)
High MTBF, industrial safety certifications (UL, CSA, EN, IEC, CE)
5-year Cisco hardware warranty
| Parameter | Details |
|---|---|
| Part Number | IE-1000-8P2S-LM |
| Series | Cisco Industrial Ethernet 1000 Series |
| Switch Type | Lightly Managed Layer 2 |
| Copper Ports | 8 x 10/100Base-TX (PoE+) |
| Uplink Ports | 2 x 1G SFP (1000Base-X) |
| PoE Standard | IEEE 802.3af/at (PoE+) |
| Total PoE Budget | 180W |
| Switching Capacity | 5.6 Gbps |
| Forwarding Rate | 2.8 Mpps |
| Memory | 128MB DDR2 DRAM, 160MB flash |
| Power Input | 12–48V DC (dual redundant) |
| Dimensions | 127 × 45.7 × 134 mm |
| Weight | 839g |
| Operating Temp | -40°C to +70°C |
| Certifications | UL/CSA/IEC/EN 60950-1, 61010-2-201, CE |
| Warranty | 5-year limited hardware |
