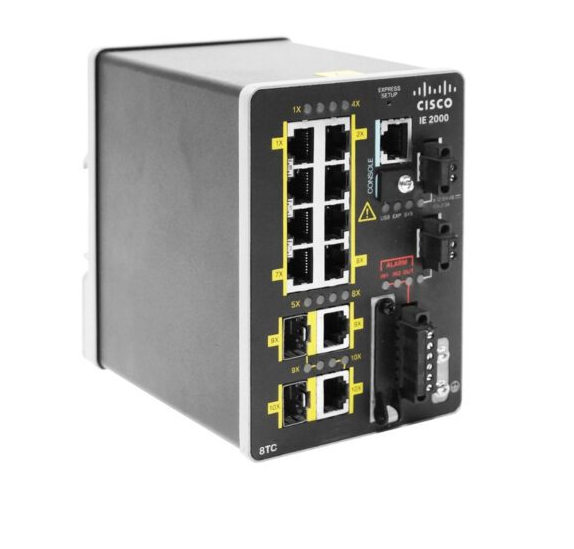

The Cisco IE-2000-8TC-B is a compact, rugged, managed Layer 2 industrial Ethernet switch from the Cisco IE 2000 Series. Built to operate reliably in harsh industrial environments, it combines 8 Fast Ethernet ports, 2 combo (SFP/RJ45) uplink ports, and industrial-grade durability. Equipped with Cisco IOS LAN Base features, it delivers secure, resilient connectivity for factory automation, intelligent transportation systems (ITS), oil & gas, mining, and other industrial IoT (IIoT) applications.
Industrial Rugged Design
IP30-rated metal enclosure, dust and humidity resistant (5–95% non-condensing)
Wide operating temperature: -40°C to +75°C
DIN-rail mountable, compact form factor for space-constrained cabinets
Withstands high vibration and shock per industrial standards
Flexible Port Configuration
8 x 10/100Base-TX Fast Ethernet RJ45 ports
2 x Fast Ethernet combo ports (support either 10/100Base-TX RJ45 or 100Base-X SFP fiber)
No PoE capability
Advanced Network Resiliency
Cisco Resilient Ethernet Protocol (REP) and PROFINET MRP (IEC 62439-2) for fast network recovery
Supports STP/RSTP/MSTP, Flex Links for redundant paths
Industrial Security & Management
802.1X authentication, SSHv2, SNMPv3, ACLs, DHCP snooping
Web GUI, Telnet, SNMP, and Cisco DNA Center support
Dual redundant 12–48V DC power inputs with alarm I/O (2 inputs, 1 relay output)
Removable SD card (up to 1GB) for config/firmware backup; mini-USB console
Industrial Protocol Support
Native EtherNet/IP (CIP) and PROFINET for seamless integration with Rockwell, Siemens, and other automation systems
IEEE 1588v2 PTP for precision time synchronization
| Parameter | Details |
|---|---|
| Part Number | IE-2000-8TC-B |
| Series | Cisco Industrial Ethernet 2000 Series |
| Switch Type | Managed Layer 2 (LAN Base License) |
| Copper Ports | 8 x 10/100Base-TX (Fast Ethernet) |
| Uplink Ports | 2 x FE combo (RJ45 or 100Base-X SFP) |
| Switching Capacity | 7.6 Gbps |
| Forwarding Rate | 6.5 Mpps |
| MAC Address Table | 8,000 entries |
| Packet Buffer | 2 MB |
| Memory | 256 MB DRAM (ECC), 64 MB flash |
| Power Input | Dual redundant 12–48V DC |
| Power Consumption | 12.5–20 W (typical) |
| Dimensions | 127 x 45.7 x 134 mm |
| Weight | 1.8 kg |
| Operating Temp | -40°C to +75°C |
| Storage Temp | -40°C to +85°C |
| Certifications | UL, CSA, IEC, EN, CE, FCC |
| Warranty | 5-year Cisco limited hardware warranty |
