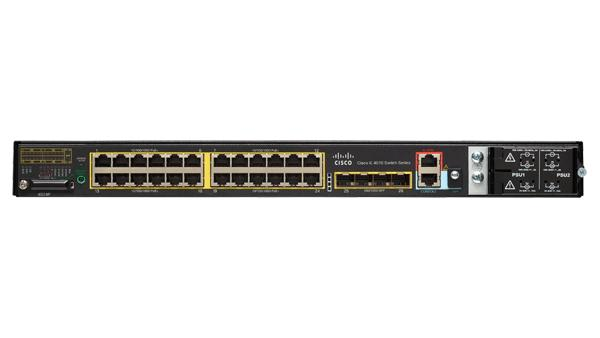

The Cisco IE-4010-4S24P is a high-performance, rack-mount industrial Ethernet switch belonging to the Cisco Industrial Ethernet 4010 Series. It is engineered for mission-critical industrial networks requiring high-density Gigabit Power over Ethernet (PoE/PoE+) connectivity. With robust Layer 2/Layer 3 capabilities, a ruggedized design, and comprehensive Cisco IOS security, it serves as a reliable aggregation or access switch in harsh industrial environments such as manufacturing, smart cities, transportation, and utilities.
Rugged Industrial Design
Rack-mount (1U) form factor for standard cabinet installation
Extended temperature range: -40°C to +75°C for extreme conditions
Fanless, convection-cooled for high reliability
Withstands high shock, vibration, and EMI
Certified for industrial hazardous locations (ATEX, IECEx)
High-Density PoE Connectivity
24 x 10/100/1000BASE-T Gigabit RJ45 ports with 802.3af/at PoE+
Total PoE budget: Up to 385W, supporting full power to all 24 ports
4 x 1Gbps SFP fiber uplink ports for high-bandwidth backbone connections
56-Gbps non-blocking switching capacity
Line-rate forwarding: 41.67 Mpps
Network Resilience & Synchronization
Supports REP, MRP (IEC 62439-2), and STP/RSTP/MSTP for fast convergence
Field-replaceable, redundant AC/DC power supplies
IEEE 1588 PTP v2 for precise time synchronization in automation
QoS with 4 egress queues for prioritized industrial traffic
Advanced Security & Management
Cisco IOS Software with LAN Base feature set
Security: 802.1X, MACsec, ACLs, DHCP Snooping, IP Source Guard
Zero-touch deployment (ZTD) and SD card configuration
Cisco Industrial Network Director for simplified OT/IT management
Alarm I/O: 4 inputs, 1 Form C relay output
Industrial Protocol Support
Optimized for EtherNet/IP, PROFINET, and CIP
IPv4/IPv6 dual stack and IGMP snooping
Ready for Time-Sensitive Networking (TSN)
| Parameter | Specification |
|---|---|
| Total Ports | 28 (24 GE PoE+ RJ45, 4 GE SFP) |
| Switching Capacity | 56 Gbps non-blocking |
| Forwarding Rate | 41.67 Mpps (64-byte packets) |
| PoE Budget | 385W (802.3af/at) |
| MAC Address Table | 16,000 unicast addresses |
| VLANs | Up to 1,000 |
| Memory | 1GB DRAM, 128MB flash, 1GB SD card |
| Power Options | Dual redundant (AC 100-240V / DC 24-48V) |
| Max Power Consumption | 420W (including PoE) |
| Dimensions (H×W×D) | 4.45 × 44.5 × 35.6 cm (1.75 × 17.5 × 14 in) |
| Weight | 5.46 kg (12.1 lbs) |
| Mounting | 19-inch rack-mount (1U) |
| Certifications | UL, CSA, EN 60950-1, ATEX, IECEx, IEEE 1613 |
| Software |
