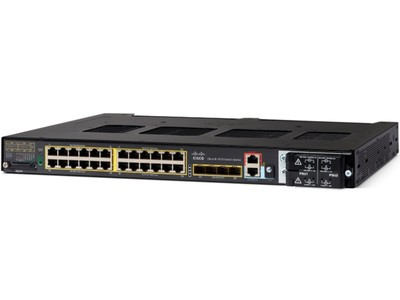

The Cisco IE-4010-16S12P is a 28-port, rack-mount industrial Ethernet switch designed for high-density, mixed-fiber/copper industrial networks. It belongs to the Cisco Industrial Ethernet 4010 Series, offering robust Layer 2/Layer 3 functionality, high PoE budget, and a ruggedized build for harsh environments—ideal for manufacturing, utilities, transportation, and smart city deployments requiring flexible fiber/copper connectivity.
Rugged Industrial Design
1U rack-mount form factor, fanless convection cooling
Extended temperature range: -40°C to +75°C
High resistance to shock, vibration, and EMI
Industrial certifications: ATEX, IECEx, UL, CSA, IEEE 1613
High-Density Connectivity
12 x 10/100/1000BASE-T PoE+ ports (802.3af/at)
12 x 1G SFP fiber ports
4 x 1G SFP uplink ports
Total PoE budget: Up to 385W
56 Gbps non-blocking switching capacity
Line-rate forwarding: 41.67 Mpps
Network Resilience
Supports REP, MRP (IEC 62439-2), STP/RSTP/MSTP
Field-replaceable dual redundant AC/DC power supplies
IEEE 1588 PTP v2 precision time synchronization
Alarm I/O: 4 inputs, 1 Form C relay
Security & Management
Cisco IOS LAN Base (upgradeable to IP Services)
Security: 802.1X, MACsec, ACLs, DHCP Snooping
Zero-touch deployment (ZTD), SD card config
Managed via Cisco Industrial Network Director
Industrial Optimizations
Native support for EtherNet/IP, PROFINET, CIP
IPv4/IPv6 dual stack, IGMP snooping
TSN-ready for converged industrial networks
| Parameter | Specification |
|---|---|
| Total Ports | 28 (12 PoE+ RJ45, 12 SFP, 4 SFP Uplink) |
| Switching Capacity | 56 Gbps non-blocking |
| Forwarding Rate | 41.67 Mpps (64-byte packets) |
| PoE Budget | 385W (802.3af/at) |
| MAC Address Table | 16,000 unicast addresses |
| VLANs | Up to 1,000 |
| Memory | 1GB DRAM, 128MB flash, 1GB SD card slot |
| Power | Dual redundant (AC 100–240V / DC 24–48V) |
| Max Power | 420W (incl. PoE) |
| Dimensions | 4.45 × 44.5 × 35.6 cm (1U) |
| Weight | 5.78 kg (no PSU) |
| Mounting | 19-inch rack-mount |
| Certifications | UL, CSA, EN 60950-1, ATEX, IECEx, IEEE 1613 |
| Software | Cisco IOS, LAN Base |
| Warranty |
