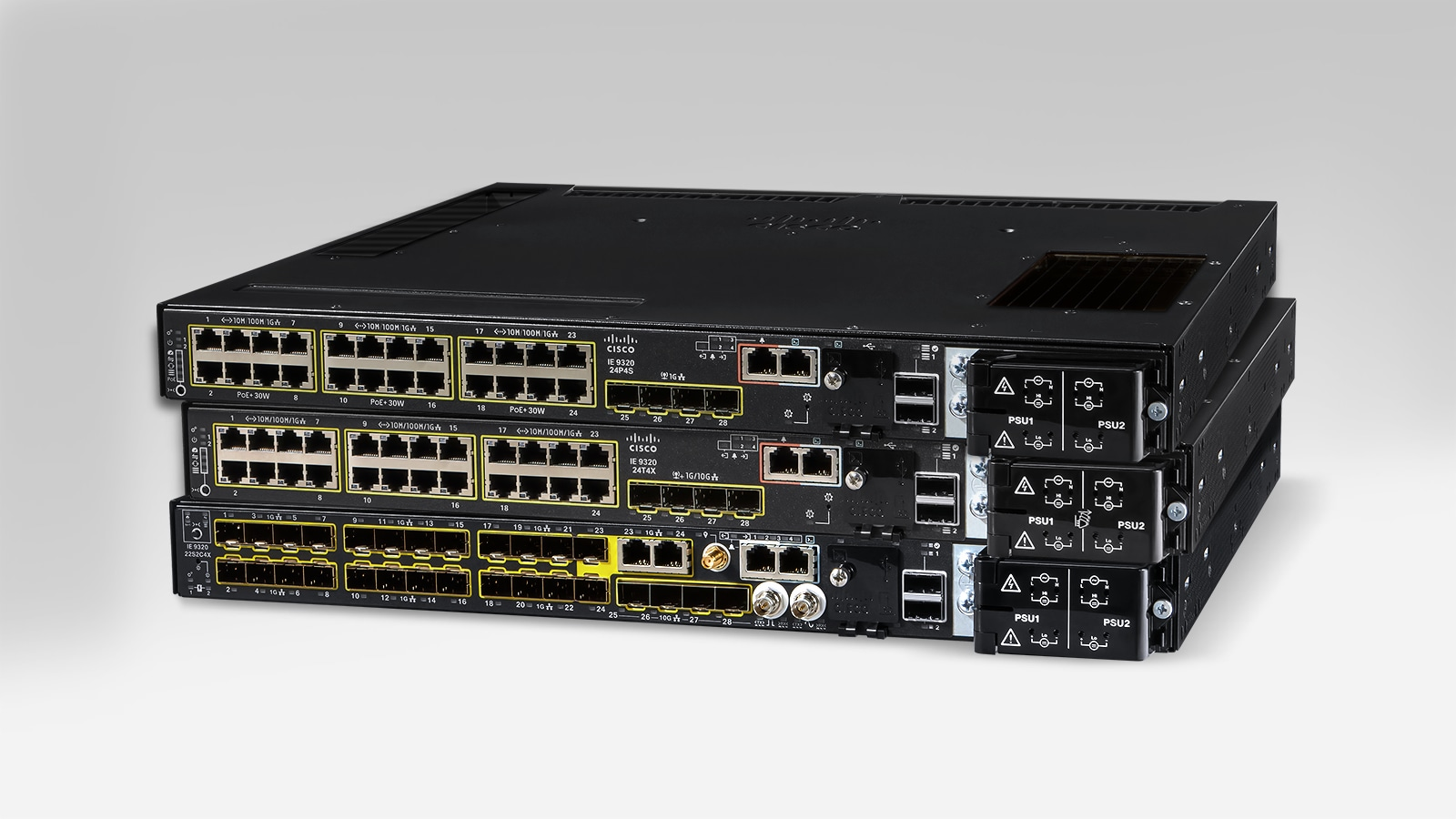

The Cisco IE-9320-22S2C4X-E is a high-performance, ruggedized 1RU rack-mount industrial switch from the Catalyst IE9300 Rugged Series. Built on Cisco IOS XE, it is designed for mission-critical industrial and outdoor environments, offering high-density fiber connectivity, 10G uplinks, precision timing, and advanced security. It is optimized for industrial aggregation, backbones, and converged IoT/OT networks in utilities, manufacturing, transportation, and smart cities.
Ultra-Rugged Design
1U rack-mount, fanless, convection-cooled
-40°C to +75°C operating temperature
High shock/vibration resistance, conformal coating option
Industrial certifications: ATEX, IECEx, UL 61010, IEEE 1613
High-Density Fiber Ports
22 x 1G SFP fiber downlink ports
2 x 1G dual-media (SFP/RJ45) combo ports
4 x 10G SFP+ high-speed uplink ports
Stackable: 2 x StackWise ports (backplane stacking)
128 Gbps switching capacity, 96 Mpps forwarding rate
Precision Timing & Resilience
IEEE 1588 PTP v2, SyncE, GNSS/GPS, IRIG-B
Resiliency: REP, MRP, PRP, HSR, STP/RSTP/MSTP
Dual redundant field-replaceable AC/DC PSUs, alarm I/O
Advanced Security & Management
Cisco IOS XE, Network Essentials license
Security: Trust Anchor, MACsec-256, 802.1X, ACLs, Cyber Vision
Zero-Touch Deployment (ZTD), SD card, Cisco Catalyst Center
IPv4/IPv6 dual stack, Full Flexible NetFlow
Industrial Optimizations
Native PROFINET, EtherNet/IP (CIP) support
Low-latency, line-rate forwarding
TSN-ready for converged industrial networks
| Parameter | Specification |
|---|---|
| Total Ports | 28 (22×1G SFP, 2×1G Combo, 4×10G SFP+) |
| Switching Capacity | 128 Gbps non-blocking |
| Forwarding Rate | 96 Mpps (64-byte packets) |
| Stacking | StackWise, 2 stacking ports |
| Memory | 4 GB DRAM, 8 GB flash, SD card slot |
| Power | Dual redundant (AC 100–240V / DC 24–48V) |
| PoE Budget | N/A (no PoE ports) |
| Dimensions | 4.4 × 44.5 × 36 cm (1U) |
| Weight | 5.76 kg |
| Mounting | 19" rack-mount |
| Certifications | UL, CSA, EN 60950, ATEX, IECEx, IEEE 1613 |
| Software | Cisco IOS XE, Network Essentials |
| Warranty | 5 years |
