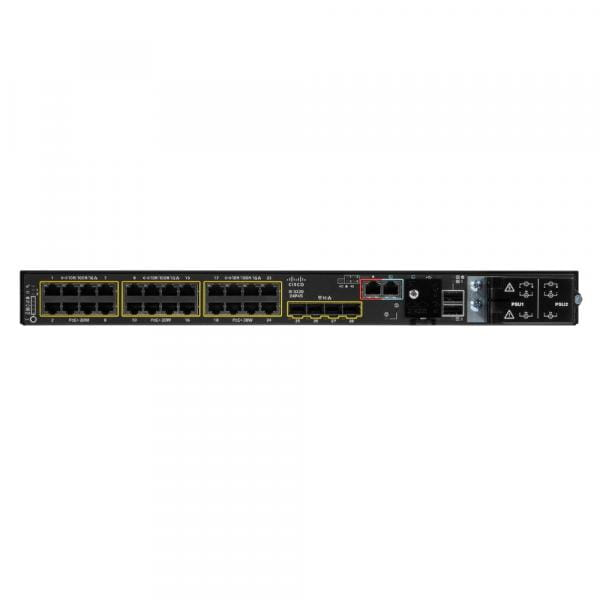

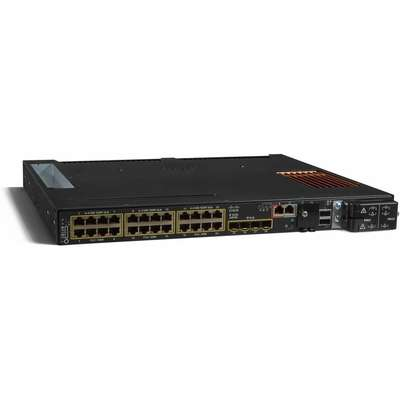

Cisco IE-9320-24P4S-E is a 1RU rack-mount managed industrial switch from the Catalyst IE9300 Rugged Series, operating on Cisco IOS XE with Network Essentials license. It is purpose-built to deliver 24-port Gigabit PoE+ connectivity with 4-port 1G SFP fiber uplinks in harsh, uncontrolled industrial environments. Optimized for powering edge devices like IP cameras, wireless APs, and sensors, it combines high PoE density, rugged durability, and enterprise-grade networking for IIoT, smart cities, manufacturing, and utility applications.
Rugged Industrial Design
Fanless, convection-cooled 1U rack-mount form factor
Wide operating temperature: -40°C to +75°C
IP40 protection, high shock/vibration resistance
Industrial certifications: ATEX, IECEx, UL 61010, IEEE 1613
High-Density PoE+ Connectivity
24 × 10/100/1000BASE-T RJ45 ports (IEEE 802.3af/at PoE+)
4 × 1G SFP fiber uplink ports
Total PoE budget: 385W (supports full 30W per port)
Switching capacity: 56 Gbps
Forwarding rate: 41.66 Mpps
Network Resilience & Precision Timing
Redundant protocols: REP, MRP, PRP, HSR, STP/RSTP/MSTP
IEEE 1588 PTP v2 and SyncE for precise time synchronization
Dual redundant field-replaceable AC/DC power supplies
StackWise stacking (2 stacking ports) for scalable expansion
Advanced Security & Management
Cisco IOS XE with Secure Boot and Trust Anchor security
Security features: 802.1X, MACsec-256, ACLs, Cisco Cyber Vision
Zero-Touch Deployment (ZTD), WebUI, CLI, and Cisco Catalyst Center management
IPv4/IPv6 dual stack and Full Flexible NetFlow
Industrial Optimizations
Native support for PROFINET, EtherNet/IP (CIP)
Low-latency, line-rate forwarding for OT/IT convergence
TSN-ready for next-generation industrial Ethernet networks
| Parameter | Specification |
|---|---|
| Model | IE-9320-24P4S-E |
| Total Ports | 28 (24×PoE+ RJ45, 4×1G SFP) |
| PoE Standard | IEEE 802.3af/at (PoE+) |
| PoE Budget | 385W |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.66 Mpps |
| MAC Address Table | 24,000 entries |
| Memory | 4 GB DRAM, 8 GB Flash |
| Power Input | Dual redundant (AC 100–240V / DC 24–48V) |
| Dimensions (H×W×D) | 1.72 × 17.5 × 15.57 in (4.36 × 44.45 × 39.55 cm) |
| Weight | 9.7 lb (4.4 kg) |
| Mounting | 19" rack-mount |
| Operating Temp | -40°C to +75°C |
| Software License | Network Essentials |
| Certifications | UL, CSA, EN 61010, ATEX, IECEx, IEEE 1613 |
