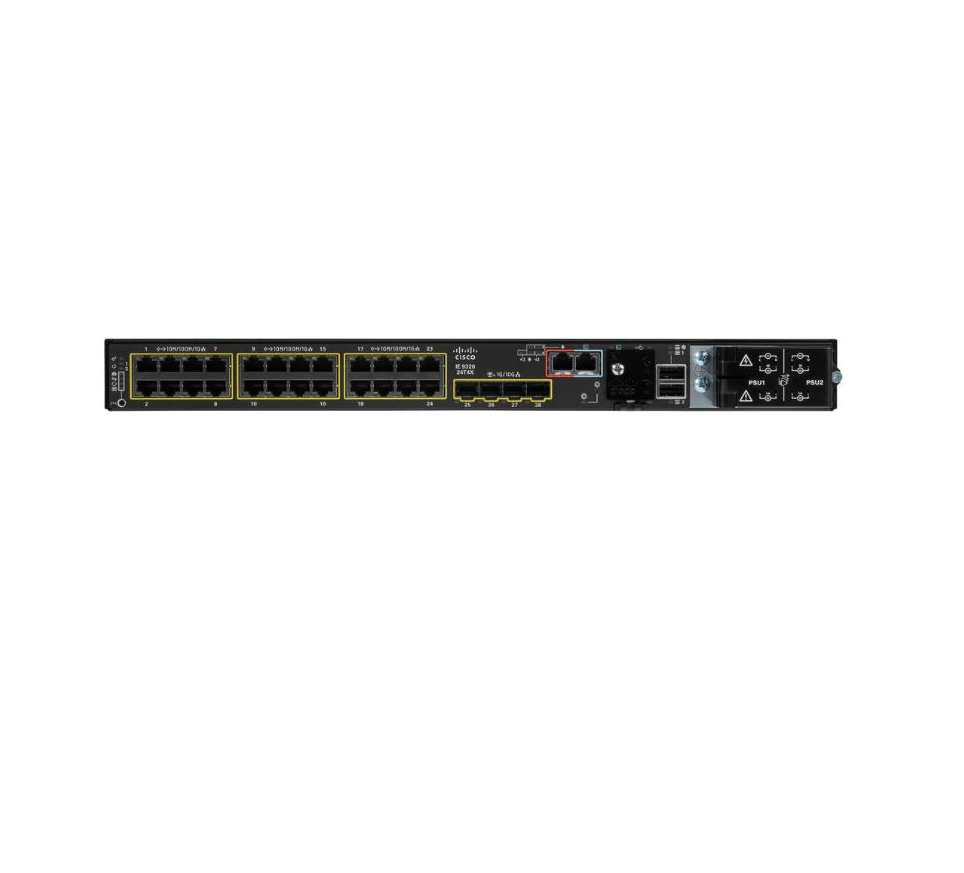

Cisco IE-9320-24T4X-E is a 1RU rack-mount managed industrial switch from the Catalyst IE9300 Rugged Series, operating on Cisco IOS XE with a Network Essentials license. It is designed for high-performance industrial aggregation and distribution, featuring 24 Gigabit Ethernet copper ports and 4 10-Gigabit SFP+ fiber uplinks. This non-PoE model is optimized for environments requiring high-speed, reliable backhaul in harsh industrial conditions.
Rugged Industrial Design
Fanless, convection-cooled 1U rack-mount form factor
Wide operating temperature: -40°C to +75°C
IP40 protection, high shock and vibration resistance
Industrial certifications: ATEX, IECEx, UL 61010, IEEE 1613
High-Density, High-Speed Connectivity
24 × 10/100/1000BASE-T RJ45 ports
4 × 1/10G SFP+ fiber uplink ports
Switching capacity: 128 Gbps (full-duplex)
Forwarding rate: 95.23 Mpps
Network Resilience & Scalability
Resilient protocols: REP, MRP, PRP, HSR, STP/RSTP/MSTP
IEEE 1588 PTP v2 for precise time synchronization
Dual redundant field-replaceable AC/DC power supplies
StackWise stacking for scalable expansion
Advanced Security & Management
Cisco IOS XE with Secure Boot and Trust Anchor
Security: 802.1X, MACsec, ACLs, Cisco Cyber Vision
Zero-Touch Deployment (ZTD), WebUI, CLI, Cisco Catalyst Center
IPv4/IPv6 dual stack and Full Flexible NetFlow
Industrial Protocol Optimization
Native support for PROFINET, EtherNet/IP (CIP)
Low-latency forwarding for OT/IT convergence
TSN-ready for next-generation industrial Ethernet
| Parameter | Specification |
|---|---|
| Model | IE-9320-24T4X-E |
| Total Ports | 28 (24×GE RJ45, 4×10G SFP+) |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.23 Mpps |
| MAC Address Table | 16,000 entries |
| Memory | 8 GB DRAM, 8 GB Flash |
| Power Input | Dual redundant (AC 100–240V / DC 24–48V) |
| Dimensions (H×W×D) | 4.36 × 44.45 × 39.55 cm (1.72 × 17.5 × 15.57 in) |
| Weight | 4.4 kg (9.7 lb) |
| Mounting | 19" rack-mount |
| Operating Temp | -40°C to +75°C |
| Software License | Network Essentials |
| Certifications | UL, CSA, EN 61010, ATEX, IECEx, IEEE 1613 |
