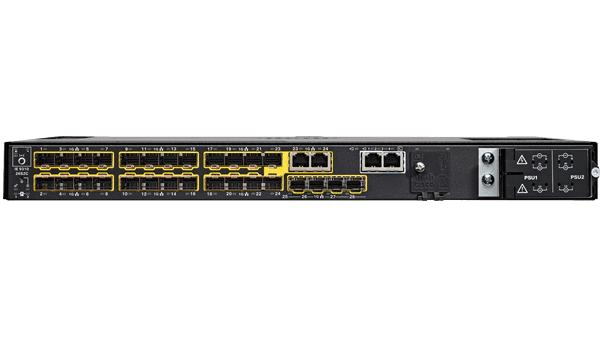

Cisco IE-9320-26S2C-A is a 1RU rack-mount managed industrial switch from the Catalyst IE9300 Rugged Series, operating on Cisco IOS XE with a Network Advantage license. This fiber-centric model is purpose-built for mission-critical industrial networks requiring extensive fiber connectivity, offering 22 Gigabit SFP ports, 2 dual-media (SFP/RJ45) ports, and 4 dedicated Gigabit SFP uplink ports. It delivers full Layer 2/3 routing capabilities in a fanless, ruggedized design for extreme environments.
Ultra-Rugged Industrial Design
Fanless, convection-cooled 1U rack-mount form factor
Wide operating temperature: -40°C to +75°C
IP30 protection, high resistance to shock and vibration
Industrial certifications: ATEX, IECEx, UL 61010, IEEE 1613
High-Density Fiber Connectivity
22 × 100/1000BASE-T SFP ports (fiber downlinks)
2 × dual-media ports (100/1000M SFP or 10/100/1000M RJ45)
4 × dedicated 1G SFP fiber uplink ports
Total ports: 28 (all Gigabit)
Switching capacity: 56 Gbps
Forwarding rate: 41.66 Mpps
Advanced Network Advantage Software
Full Layer 3 routing (static, RIP, EIGRP, OSPF, BGP)
StackWise stacking: 2 stacking ports, supports up to 4 switches
Resilient protocols: REP, MRP, PRP, HSR, STP/RSTP/MSTP
IEEE 1588 PTP v2 and SyncE for precision timing
Enterprise-Grade Security
Secure Boot and Trust Anchor security module
802.1X, MACsec-256, ACLs, TrustSec
Cisco Cyber Vision for OT network visibility
Zero-Touch Deployment (ZTD)
Industrial Optimization
Native support for PROFINET, EtherNet/IP (CIP)
Low-latency forwarding for IT/OT convergence
TSN-ready for next-generation industrial Ethernet
Dual redundant field-replaceable AC/DC power supplies
| Parameter | Specification |
|---|---|
| Model | IE-9320-26S2C-A |
| Total Ports | 28 (26×SFP, 2×Combo) |
| Downlink Ports | 22 × 1G SFP; 2 × Dual-media (SFP/RJ45) |
| Uplink Ports | 4 × 1G SFP |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.66 Mpps |
| MAC Address Table | 24,000 entries |
| Memory | 4 GB DRAM, 8 GB Flash |
| Power Input | Dual redundant (AC 100–240V / DC 24–48V) |
| Dimensions (H×W×D) | 1.72 × 17.5 × 14.0 in (4.36 × 44.45 × 35.56 cm) |
| Weight | 12.2 lb (5.5 kg) |
| Mounting | 19" rack-mount |
| Operating Temp | -40°C to +75°C |
| Software License | Network Advantage |
| Certifications | UL, CSA, EN 61010, ATEX, IECEx, IEEE 1613 |
