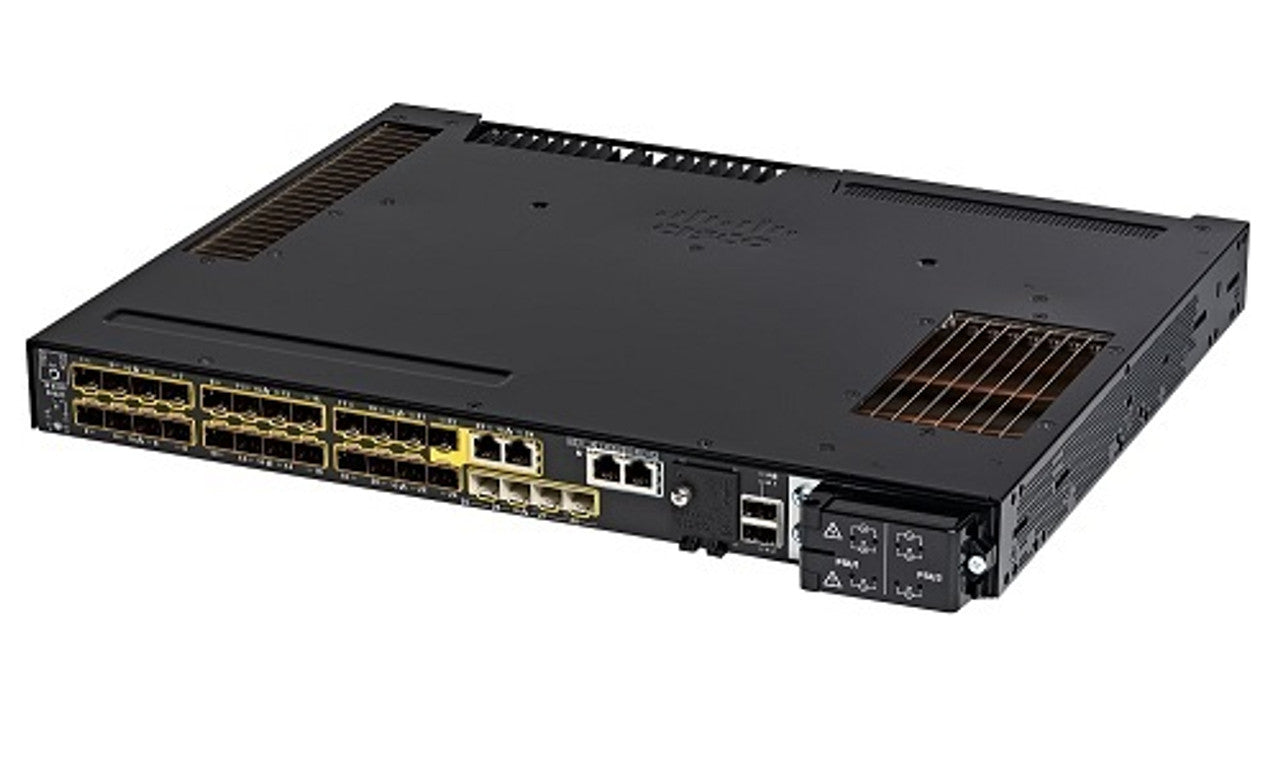

The Cisco IE-9320-26S2C-E is a 1RU rack-mount managed industrial switch from the Catalyst IE9300 Rugged Series, operating on Cisco IOS XE with a Network Essentials license. This high-density fiber model is designed for mission-critical industrial networks, offering 22 Gigabit SFP ports, 2 dual-media (SFP/RJ45) ports, and 4 dedicated Gigabit SFP uplink ports. It provides robust Layer 2/3 switching in a fanless, ruggedized chassis for extreme environments.
Key Features & Benefits
Rugged Industrial Design
Fanless, convection-cooled 1U rack-mount
Wide operating temperature: -40°C to +75°C
IP30 protection, high shock/vibration resistance
Certifications: IEC 61850-3, IEEE 1613, ATEX, UL 61010
High-Density Fiber Connectivity
22 × 1G SFP downlink ports
2 × dual-media (1G SFP / 10/100/1000M RJ45) ports
4 × dedicated 1G SFP uplink ports
Total ports: 28 (all Gigabit)
Switching capacity: 56 Gbps
Forwarding rate: 41.66 Mpps
Network Essentials Software
Full Layer 2 & basic Layer 3 routing
StackWise stacking: supports up to 4 switches
Resiliency: REP, MRP, STP/RSTP/MSTP
Precision timing: IEEE 1588 PTP v2
Industrial Security & Management
Secure Boot, 802.1X, MACsec, ACLs
Supports PROFINET, EtherNet/IP (CIP)
Dual redundant AC/DC power supplies
USB, RS-232 console, Alarm I/O
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | IE-9320-26S2C-E |
| Ports | 22 × 1G SFP; 2 × Combo (SFP/RJ45); 4 × 1G SFP Uplink |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.66 Mpps |
| Memory | 4 GB DRAM, 8 GB Flash |
| Power | Dual redundant (AC 100–240V / DC 24–48V) |
| Dimensions | 1.72 × 17.5 × 14.0 in (4.36 × 44.45 × 35.56 cm) |
| Weight | 12.2 lb (5.5 kg) |
| Temperature | -40°C to +75°C |
| License | Network Essentials |
| OS | Cisco IOS XE |
