Cisco PWR-IE480W-PCAC-L=

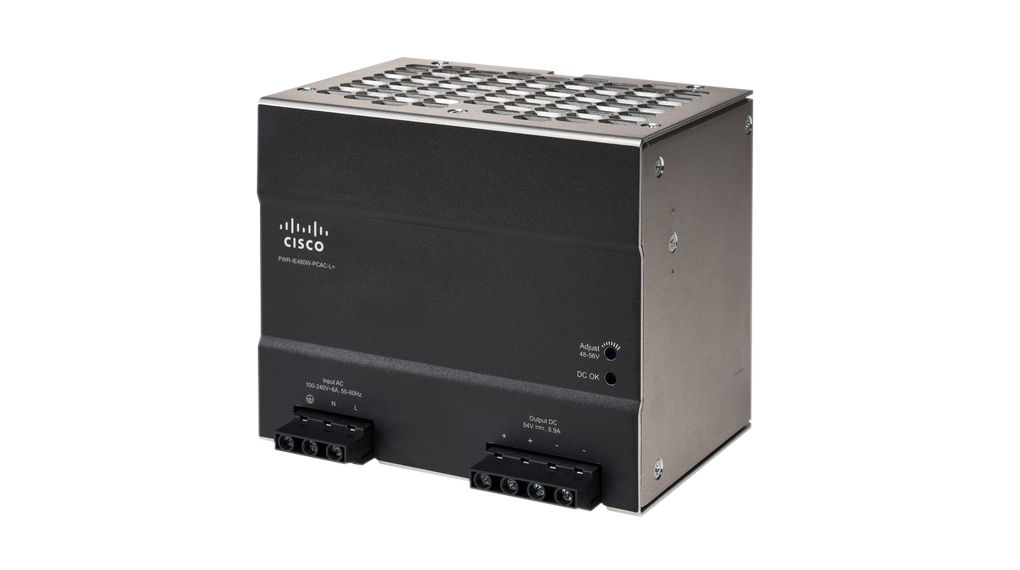

The Cisco PWR-IE480W-PCAC-L= is a high-power, ruggedized 480W AC-DC DIN-rail power supply engineered for mission-critical industrial networks. It provides reliable 54V DC output to power Cisco Industrial Ethernet (IE) switches, routers, and connected devices (including high-density PoE/PoE+ deployments) in extreme environmental conditions. Built with a fanless, convection-cooled design and conformal coating, it ensures uninterrupted operation in harsh industrial settings.

Key Features & Benefits

Rugged Industrial Reliability

Fanless, convection-cooled operation for maximum durability.
Conformal coating protects against dust, humidity, and corrosive agents.
Wide operating temperature: -40°C to +75°C.
IP20 ingress protection.
High MTBF (> 1.05 million hours).

High Power & Efficiency

480W continuous power output: 54V DC @ 8.9A.
Universal input: 90-264V AC (47-63Hz).
High efficiency: Up to 92% (80 Plus Gold equivalent).
Active PFC (Power Factor Correction > 0.95).

Advanced Protection & Safety

Comprehensive protection: OVP, OCP, OTP, SCP.
Certifications: UL 60950-1, UL 62368-1, CE.
Designed for IEC 61850-3, IEEE 1613 (substation/industrial environments).

Flexible Deployment

DIN-rail mountable for easy industrial cabinet installation.
Supports high-power PoE/PoE+ (IEEE 802.3af/at) applications.
Compact form factor: 144 x 121 x 118.6 mm.

Technical Specifications

Parameter	Specification
Part Number	PWR-IE480W-PCAC-L=
Total Output Power	480W
Output	54V DC @ 8.9A
Input Voltage	90–264V AC (universal, auto-sensing)
Input Frequency	47–63 Hz
Efficiency	Up to 92%
Power Factor	≥ 0.95
Operating Temp	-40°C to +75°C
Dimensions (W x H x D)	144 x 121 x 118.6 mm
Weight	1.37 kg
Mounting	DIN-rail
Cooling	Fanless (convection)
Protection	Over-voltage, over-current, over-temperature, short-circuit
Certifications	UL 60950-1, UL 62368-1, CE
Conformal Coating	Yes
