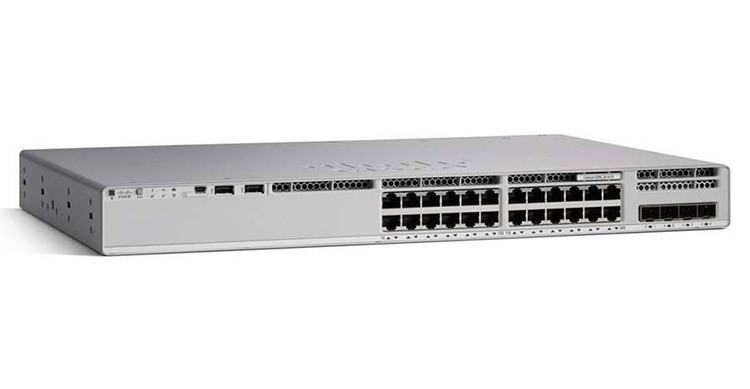

Cisco Catalyst 9200L-24P-4G-E

Key Features & Benefits

• High-Density PoE+ Connectivity:

• 24 x 10/100/1000BASE-T RJ45 ports with full IEEE 802.3at PoE+ support.

• Delivers up to 30W per port, with a total PoE budget of 370W (740W with redundant PSU).

• Powers devices directly over Ethernet, eliminating the need for local power adapters.

• Flexible & High-Speed Uplinks:

• 4 x fixed 1G SFP uplink ports for fiber or copper connections to the core network.

• Supports link aggregation (LACP) for resilient, high-bandwidth uplinks.

• Powerful Layer 3 Performance:

• Full Layer 3 routing with support for OSPF, EIGRP, RIP, PIM multicast.

• Switching Capacity: 80 Gbps.

• Forwarding Rate: 41.66 Mpps.

• Enterprise-Grade Security:

• MACsec encryption for secure data transmission.

• 802.1X authentication, TrustSec, and First Hop Security (FHS).

• Secure Boot and cryptographic security to protect the system integrity.

• Simplified Management & Scalability:

• Supports Cisco StackWise-80 technology to stack up to 8 switches.

• Managed via Cisco DNA Center, CLI, or web UI.

• Network Essentials license included for full L3 feature access.

• Energy Efficient:

• Supports Energy Efficient Ethernet (EEE) to reduce power consumption.

• Smart PoE management optimizes power delivery to connected devices.

Technical Specifications
