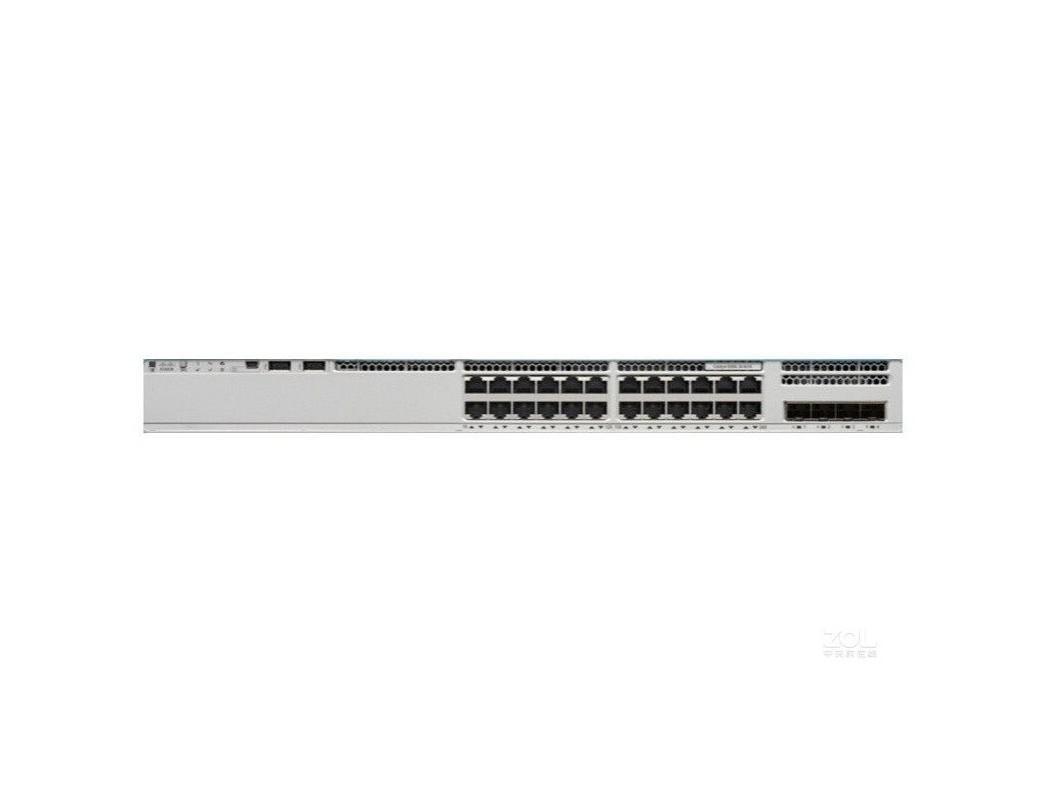

The Cisco Catalyst C9200L-24T-4G-E is a cost-effective, enterprise-grade access switch designed for small-to-medium campuses and branch offices. It is a 1RU rack-mountable switch equipped with 24 x 10/100/1000BASE-T Gigabit Ethernet ports and 4 x 1G SFP fixed uplink ports. Powered by the Cisco IOS XE operating system with a Network Essentials (E) license, it delivers a robust, secure, and simplified networking foundation without PoE requirements.
Cost-Effective Enterprise Performance: Delivers essential Layer 2/Layer 3 features at a budget-friendly price point, ideal for non-PoE environments.
Simplified Deployment & Management: Supports Zero-Touch Deployment (ZTD) and Cisco DNA Center for effortless setup. StackWise-80 technology allows unified management of up to 8 switches with an 80 Gbps stacking bandwidth.
Built-in Security: Incorporates robust security features including Secure Boot, MACsec encryption, and 802.1X authentication to safeguard the network edge.
High Resiliency: Features fixed, redundant fans and supports dual, field-replaceable power supplies to ensure maximum uptime.
Future-Proof Architecture: Built on the UADP 2.0 Mini ASIC and Cisco IOS XE, ensuring compatibility with future software upgrades and evolving network demands.
Compact Form Factor: 1RU rack-mount design optimizes valuable rack space in wiring closets and data rooms.
Technical Specifications
| Parameter | Details |
|---|---|
| Ports | 24 x 10/100/1000BASE-T RJ45 ports; 4 x 1G SFP uplink ports |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 83.33 Mpps |
| Stacking | StackWise-80 (up to 8 switches, 80 Gbps) |
| Memory | DRAM: 2 GB; Flash: 4 GB |
| MAC Address Table | 16,000 entries |
| Jumbo Frames | Up to 9198 bytes |
| Layer 3 Features | Static routing, RIP, OSPF (with Essentials license) |
| Power Supply | 1 x Fixed AC power supply (PWR-C5-125WAC); 1 x RPS slot |
| Fans | Fixed, redundant cooling system |
| Dimensions (W x D x H) | 44.5 x 28.8 x 4.4 cm (17.5 x 11.3 x 1.73 in) |
| Weight | 4.35 kg (9.6 lbs) |
| Software License | Network Essentials |
